SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts

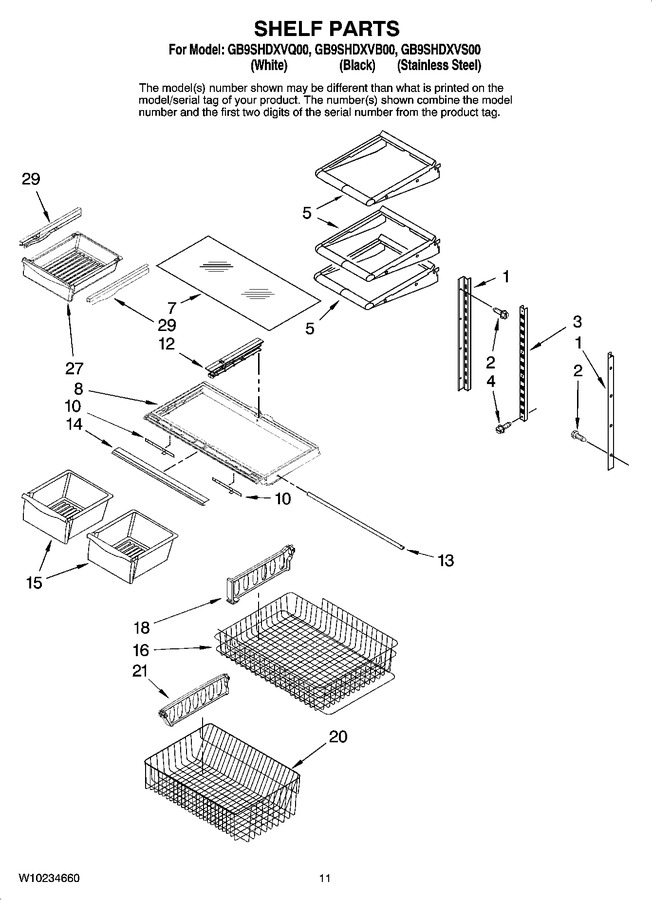

06 - Shelf Parts


07 - Unit Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67001302		Ladder, Side		Appelez-nous	-
2	67006425		Screw (6)   (Replaces: 67006400)			Immediately	$ 7.30
3	67001073		Ladder, Center				$ 56.89
4	W10709795		Screw (2)   (Replaces: 67006360)				$ 13.79
5	W11402522		Shelf, Stationary   (Replaces: 12463608)				$ 203.51
7	WP67006877		Glass, Crisper   (Replaces: 67006877)			Immediately	$ 209.75
8	WPW10671240		Frame, Crisper   (Replaces: 67001153)			Immediately	$ 138.10
10	WP67005864		Slide-humidity-(2)   (Replaces: 67005864)			Immediately	$ 8.20
12	WPW10671238		Rail, Center Crisper   (Replaces: 67001057)			Immediately	$ 118.46
13	WP12227302WD		Brace Crisper Frame   (Replaces: 67001155)				$ 111.60
14	WPW10231481		Trim, Crisper   (Replaces: 67003927)				$ 117.42
15	W10833528		Pan, Crisper (2)   (Replaces: 67002569)			Immediately	$ 139.95
16	W10201224		Basket, Freezer (upper)		Appelez-nous	-
18	W10171557		Divider, Upper Basket		Appelez-nous	-
20	W10503182		Basket, Freezer (lower)   (Replaces: W10146449)				$ 241.97
21	W10205416		Divider, Lower Basket		Appelez-nous	-
27	WP67001308		Pan   (Replaces: 67001308)			Immediately	$ 138.10
29	WP67001054		Glide, Deli (left)   (Replaces: 67001054)			Immediately	$ 8.82
29	WP67001053		Glide-deli (right)   (Replaces: 67001053)			Immediately	$ 9.24

    View Diagram in Separate Window       Print Part List
