SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts

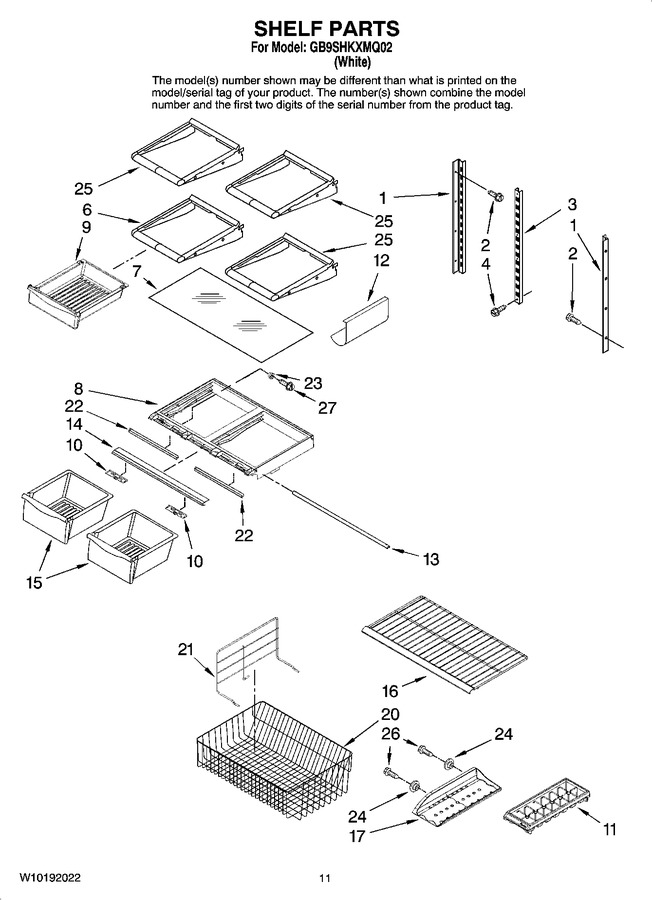

06 - Shelf Parts


07 - Unit Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67002690		Ladder, Side		Appelez-nous	-
2	67006425		Screw (6)   (Replaces: 67006400)			Immediately	$ 7.30
3	67002689		Ladder, Center		Appelez-nous	-
4	W10709795		Screw (2)   (Replaces: 67006360)				$ 13.79
6	67002687		Shelf, Meatkeeper		Appelez-nous	-
7	12204810		Glass, Crisper		Appelez-nous	-
8	67004380		Frame, Crisper		Appelez-nous	-
9	WP2218127K		Pan, Meatkeeper   (Replaces: 67002688)				$ 146.80
10	12227101		Knob, Control		Appelez-nous	-
11	WP841180A		Tray, Ice Cube   (Replaces: D7725402)			Immediately	$ 47.84
12	12052502		Rack, Wine		Appelez-nous	-
13	WP12227302WD		Brace, (2) Crisper Frame   (Replaces: 8170554)				$ 111.60
14	10688093		Trim, Crisper		Appelez-nous	-
15	67001928		Pan, Crisper (2)				$ 65.36
16	67002691		Shelf, Freezer		Appelez-nous	-
17	12646501		Rack, Ice		Appelez-nous	-
20	WP12754803		Basket, Freezer (lower)   (Replaces: 12754803)				$ 267.02
21	8170879		Divider, Lower Basket		Appelez-nous	-
22	12226401		Seal, Crisper (2)		Appelez-nous	-
23	10481001		Roller (4)				$ 10.99
24	10972101		Spacer, Rack				$ 7.82
25	67002686		Shelf, Glide (3)		Appelez-nous	-
26	WP67006908		Screw (2)   (Replaces: 67006908)			Immediately	$ 8.78
27	67006692		Screw (4)				$ 10.79

    View Diagram in Separate Window       Print Part List
