SELECT A DIAGRAM

01 - Oven, Literature


02 - Control Panel


03 - Oven Door


04 - Internal Oven


05 - Top Venting

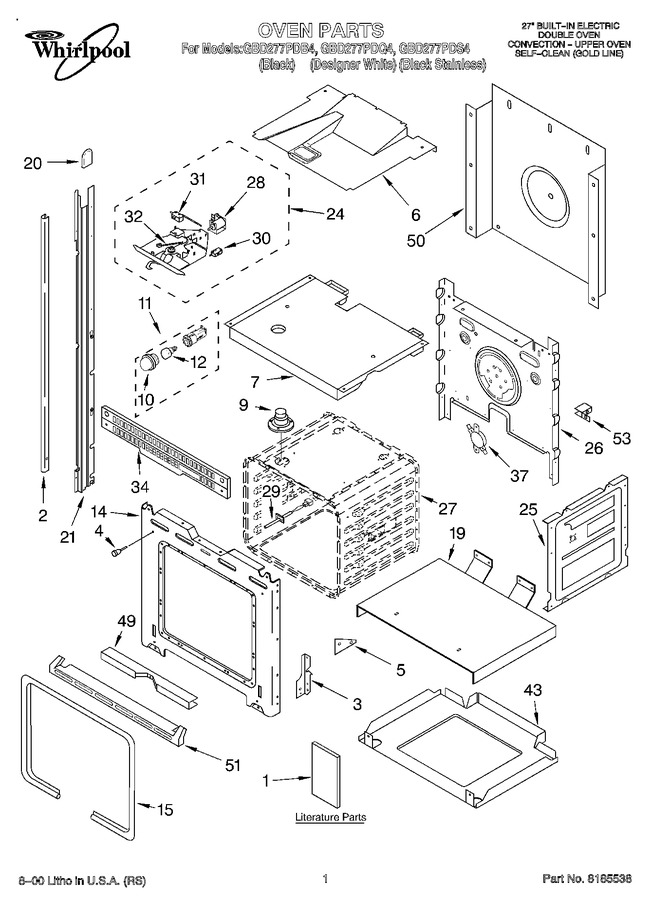

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4450410		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT4452004		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT4449237		Cookbook, T/c Ovens		Appelez-nous	-
1	LIT4451887		Literature Parts (tech Sheet (oven))		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	4450850		Trim, Side (rh Black)		Appelez-nous	-
2	4450854		Trim, Side (left Hand)) (white Model)		Appelez-nous	-
2	WP8281236		Trim, Side (screw) (black Model)   (Replaces: 4449747)				$ 8.16
2	4449041		Trim, Side (screw) (white Model)				$ 5.27
2	4450851		Trim, Side (right Hand) (white Model)		Appelez-nous	-
2	4450853		Trim, Side (lh Black)		Appelez-nous	-
3	4455594		Reciever, Hinge (left Hand)		Appelez-nous	-
3	4455595		Reciever, Hinge (right Hand)		Appelez-nous	-
4	4448520		Bumper, Door				$ 22.25
5	WP4455509		Bracket, Support   (Replaces: 4455509)				$ 94.01
6	4452200		Divider, Vent		Appelez-nous	-
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	4455285		Top, Chassis		Appelez-nous	-
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
9	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
10	4452165		Lens, Light		Appelez-nous	-
11	4452368		Light Assy, Rear		Appelez-nous	-
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
14	4451739		Frame, Front		Appelez-nous	-
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
15	WP4455381		Gasket, Door   (Replaces: 4455381)				$ 185.61
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
19	4451477		Support, Insulation		Appelez-nous	-
20	4451605		Cap, Spacer				$ 38.55
21	814374		Rail, Side (left)   (Replaces: 4450582)				$ 238.23
21	814373		Rail, Side (right)   (Replaces: 4450581)				$ 237.85
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 8.16
24	4451896		Latch Assembly				$ 163.41
24	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
25	4454691		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4452233		Back, Chassis		Appelez-nous	-
28	4452224		Solenoid		Appelez-nous	-
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
30	4452312		Switch, Micro N.c.				$ 90.43
31	4451426		Switch, Micro		Appelez-nous	-
32	4451537		Spring, Latch		Appelez-nous	-
34	4452266		Vent, Center				$ 60.71
37	WP4449809		Safety (tod) Swtch Thermostat (temp) (screw)   (Replaces: 4449809)			Immediately	$ 7.55
37	WP9759242		Safety (tod) Swtch Thermostat (temp) (upper Oven)   (Replaces: 4452223)			Immediately	$ 85.57
37	WP9759243		Safety (tod) Swtch Thermostat (temp) (lower Oven)   (Replaces: 4451442)			Immediately	$ 55.44
43	4455529		Base, Chassis		Appelez-nous	-
43	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
51	4159465		Trim, Bottom (screw)		Appelez-nous	-
51	4448475		Trim, Bottom (black Model)		Appelez-nous	-
51	4448476		Trim, Bottom (white Model)		Appelez-nous	-
53	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
53	4449845		Bracket-support		Appelez-nous	-
53	4450364		Insulation, Back		Appelez-nous	-
53	4449315		Insulation, Wrap				$ 64.81

    View Diagram in Separate Window       Print Part List
