SELECT A DIAGRAM

01 - Oven, Literature


02 - Control Panel

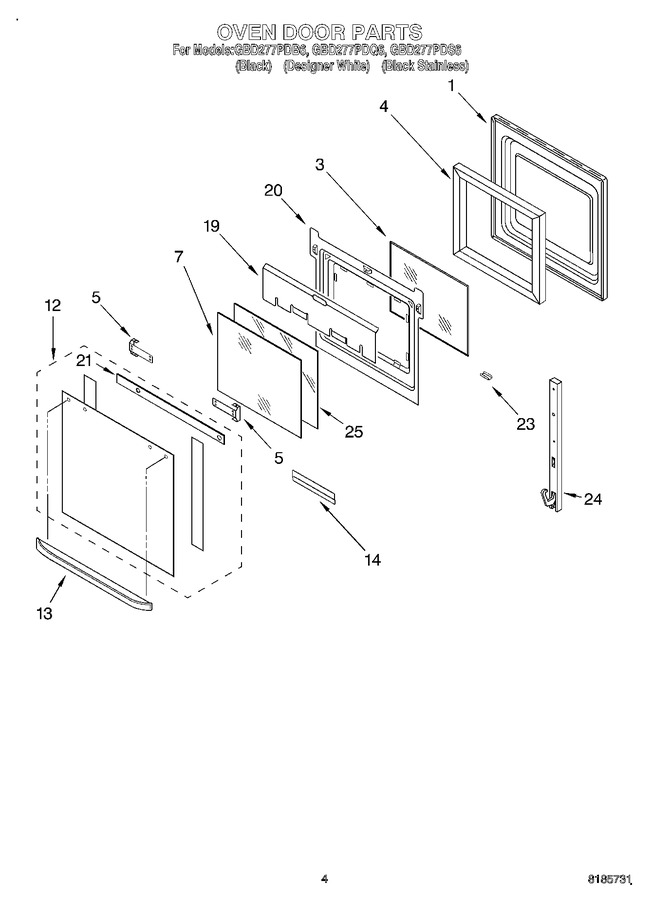

03 - Oven Door


04 - Internal Oven


05 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451718		Door Liner		Appelez-nous	-
3	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 168.61
4	4451721		Insulation, Door				$ 37.62
5	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
5	4450813		Bracket, Handle				$ 24.20
7	WP4449257		Glass, Inner   (Replaces: 4449257)			Immediately	$ 208.31
12	4452062		Door Glass Assy (black Model)		Appelez-nous	-
12	4452478		Door Glass, Assy (black, Stainless Model)		Appelez-nous	-
12	4452063		Door Glass, Assy (white Model)		Appelez-nous	-
13	4448406		Handle, Door (white Model)		Appelez-nous	-
13	4448405		Door Handle (black Model)		Appelez-nous	-
14	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
14	4451668		Retainer, Glass		Appelez-nous	-
19	4450361		Shield, Heat		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
20	4451670		Retainer, Glass		Appelez-nous	-
21	4451673		Seal, Door Top		Appelez-nous	-
23	4450863		Retainer, Clip (black Model)		Appelez-nous	-
23	4450864		Retainer, Clip (white Model)		Appelez-nous	-
24	WP4455524		Hinge, Door (white & Black Models)   (Replaces: 4455524)			Immediately	$ 78.20
24	WP4449743		Hinge, Door (screw)   (Replaces: 4449743)				$ 7.55
24	WP4455525		Hinge, Door (black Stainless Model)   (Replaces: 4455525)			Immediately	$ 88.29
25	4455256		Glass, Inner		Appelez-nous	-
