Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 B8324801 Clip Ground Appelez-nous -
2 B8386602 Gasket Appelez-nous -
3 C8976102 Gasket, Air Block Appelez-nous -
4 A3189335 Gasket Foam Appelez-nous -
5 D7865907 Cover, Evaporator Appelez-nous -
6 D7821144 Back, Inner Freezer Appelez-nous -
7 A3127412 Ext. Fill Tube Appelez-nous -
8 D7838302 Cover, Supply Air Appelez-nous -
9 WP12990527 Screw   (Replaces: M0219916) In-Stock Immediately $ 8.76

10 WP489399 Screw   (Replaces: M0232903) Special Order $ 7.30

11 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 8.30

12 M0322202 Tie Wire Appelez-nous -
13 67006425 Screw, Sm   (Replaces: M0209616) In-Stock Immediately $ 7.30

14 C8976201 Clamp Appelez-nous -
15 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

16 10098801 Rivet Appelez-nous -
17 A3189362 Gasket, Foam Appelez-nous -
18 D7865806 Evap. Shield Appelez-nous -
19 D7850202 Drip Tray Pnt. Appelez-nous -
20 M0580003 Grommet Appelez-nous -
21 B8327901 Gasket, Evap. Appelez-nous -
22 B8385502 Block-lh Air Coil Appelez-nous -
23 B8385601 Block P M Air Coil Appelez-nous -
24 R0161087 Kit, Thermostat   (Replaces: C8972009) Special Order $ 128.76

25 C8983101 Clip, Evap. Heater Appelez-nous -
26 D7872801 Heater, Defrost Special Order $ 67.23

27 R0170041 Assy,low Side-thin Wall Evap Appelez-nous -
28 WP2264462 Grommet   (Replaces: A1017202) In-Stock Immediately $ 46.17

29 A1047901 Shim Appelez-nous -
30 C8795501 Fan-evap Appelez-nous -
31 C8881301 Brkt Evap Fan Appelez-nous -
32 WPC8891605 Motor, Evap Fan   (Replaces: C8891605) Special Order $ 344.82

33 D7767703 Bracket-motor/shroud Appelez-nous -
34 WP12990527 Screw   (Replaces: M0219916) In-Stock Immediately $ 8.76

35 M0560001 Support Appelez-nous -
36 M0580002 Grommet A Appelez-nous -
37 10535701 Harness, Ref Liner Appelez-nous -
38 10164807 Grille, Control Appelez-nous -
39 10164702 Control-air Appelez-nous -
40 10426801 Clip, Air Tunnel Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

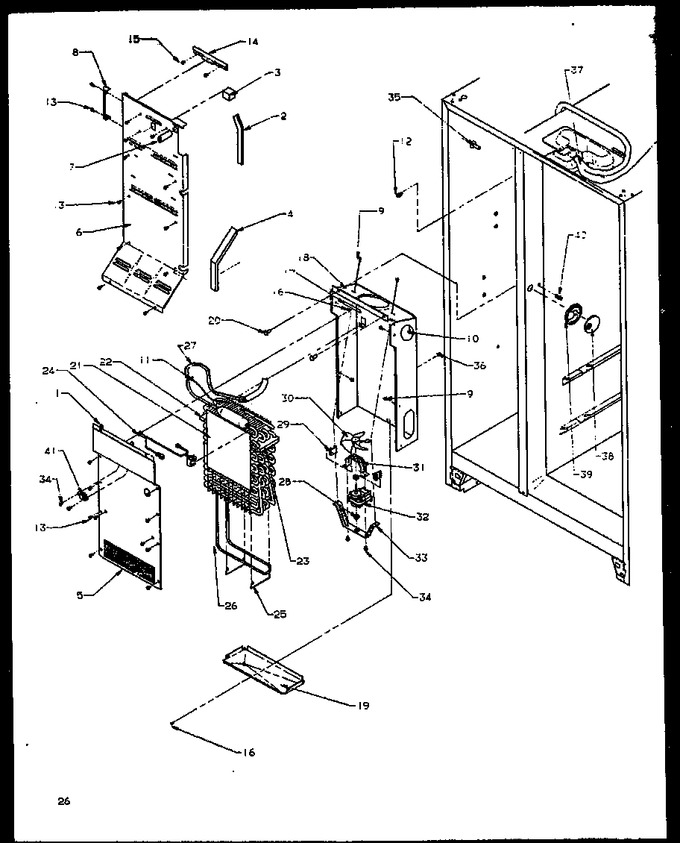

Diagram for GRH2202W (BOM: P1168102W W)
