01 - Oven Parts
02 - Control Panel Parts
03 - Oven Door Parts
04 - Internal Oven Parts

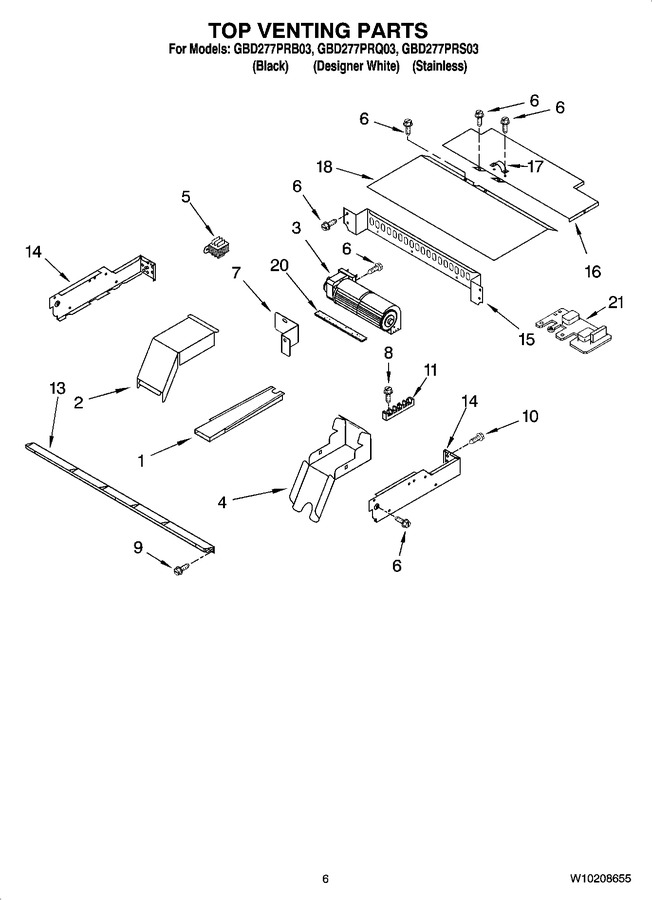

05 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4451759 | Vent, Exhaust |
|
$ 105.01 | |||||
| 2 | 4455178 | Elbow, Vent- Top |
|
$ 15.52 | |||||
| 3 | WPW10176670 | Blower (upper) (Replaces: 4457289) |
|
Immediately | $ 263.76 | ||||
| 3 | WPW10016550 | Blower (lower) (Replaces: W10016550) |
|
Immediately | $ 283.63 | ||||
| 4 | 4455177 | Elbow, Vent- Bottom |
|
$ 11.39 | |||||
| 5 | 9760587 | Transformer, Control |
|
$ 112.69 | |||||
| 6 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 7 | 8302390 | Bracket, Control Air Stop |
|
- | |||||
| 8 | W11684512 | Screw (Replaces: 3400080) |
|
$ 14.81 | |||||
| 9 | WP4450038 | Screw (Replaces: 4450038) |
|
$ 8.30 | |||||
| 10 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 11 | WP8203546 | Block, Terminal (Replaces: 4449868) |
|
Immediately | $ 30.13 | ||||
| 13 | 8303498 | Vent, (control Panel) |
|
$ 83.44 | |||||
| 14 | W10755214 | Side, Control Top (right) (Replaces: 4451597) |
|
- | |||||
| 14 | W10790240 | Side, Control Top (left) (Replaces: 4451598) |
|
$ 78.41 | |||||
| 15 | 9759135 | Back, Control |
|
- | |||||
| 16 | 4450550 | Cover, Top Rear |
|
$ 32.95 | |||||
| 17 | 4448664 | Clamp |
|
$ 21.41 | |||||
| 18 | 4452366 | Cover, Top Front |
|
- | |||||
| 20 | W10491987 | Seal, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 21 | 4452260 | Spacer, Foam |
|
- | |||||
| 21 | WP8302143 | Suppressor (Replaces: 8302143) |
|
$ 120.94 | |||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 8301909 | Harness, Latch |
|
$ 142.12 | ||||||
| 4450953 | Conduit, Double |
|
$ 311.24 | ||||||
| 4448664 | Clamp |
|
$ 21.41 | ||||||
| WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | |||||
| WP98997 | Clip (Replaces: 98997) |
|
$ 11.64 | ||||||
| 4450800 | Screw, Ground |
|
$ 13.47 | ||||||
| 4452400 | Lead, Ground Strap |
|
$ 45.42 | ||||||
| 8301777 | Harness, Main |
|
$ 134.52 | ||||||
| WP7103P027-60 | Nut, Terminal Block (Replaces: 7103P027-60) |
|
Immediately | $ 7.55 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| WPW10339879 | Tie, Cable (Replaces: 4454835) |
|
$ 8.30 | ||||||
| 4451761 | Support, Wiring |
|
- | ||||||
| WPW10339879 | Tie, Cable (Replaces: 4454842) |
|
$ 8.30 | ||||||
| WP4448950 | Screw, Install (4) (Replaces: 4448950) |
|
$ 8.16 | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| WP261869 | Paint, Touch-up (1/2oz.) (cord Brown) (Replaces: 261869) |
|
$ 27.83 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 261900 | Paint, Spray (citrine White) |
|
$ 59.89 | ||||||
| 285006 | Spray Paint (black) 13 Oz. (Replaces: 830864) |
|
$ 59.89 | ||||||
| 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 63.51 | |||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 |
