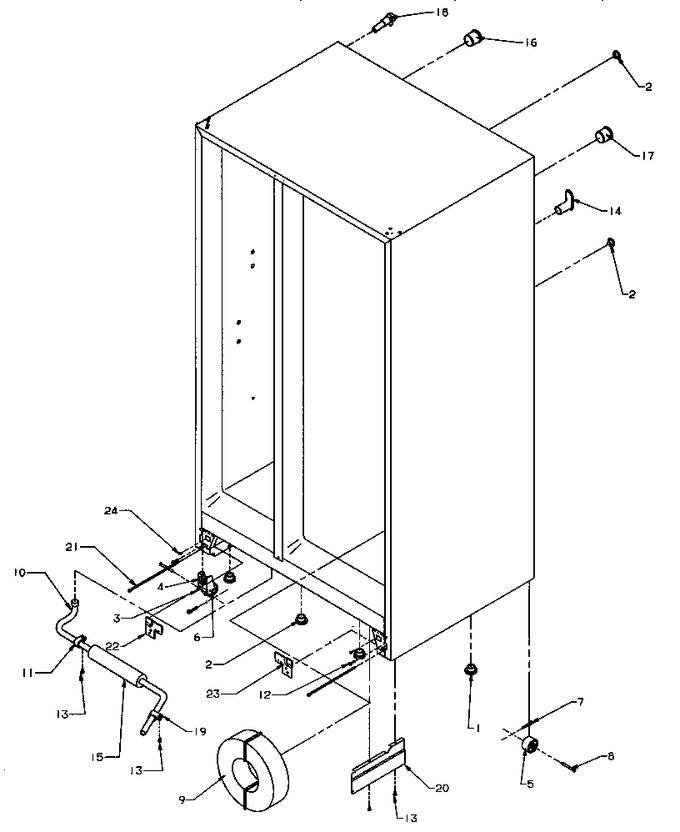

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A3076901		Plug-button				$ 5.70
2	A3080001		Plug, Button (blk)		Appelez-nous	-
3	C8742401		Assy, Roller Bracket		Appelez-nous	-
4	M0286708		Nut, Speed				$ 47.85
5	M0520102		Roller		Appelez-nous	-
6	M1205302		Rivet				$ 5.85
7	M1200004		Cotter Pin K		Appelez-nous	-
8	M1200202		Pin K		Appelez-nous	-
9	D7787804		Tank, Coil Water		Appelez-nous	-
10	10393001		Tube-drain		Appelez-nous	-
11	M0102303		Clamp		Appelez-nous	-
12	M0204339		Screw Bolt K		Appelez-nous	-
13	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
14	C8971902		Tunnel, Heat Ex.		Appelez-nous	-
15	10851301		Insulation, Tube		Appelez-nous	-
16	10187501		Tunnel Wire		Appelez-nous	-
17	10187601		Tunnel Wire		Appelez-nous	-
18	10277304		Assy, Fill Tube		Appelez-nous	-
19	10161301		Holder Tube		Appelez-nous	-
20	10248101		Shield Elect Box		Appelez-nous	-
21	10093301		Screw, Adj Roller		Appelez-nous	-
22	10860102		Strip, Bot Hinge Tap		Appelez-nous	-
23	10860101		Strip, Bot Hinge Tap		Appelez-nous	-
24	B5642912		Rivet, Pop (blk)		Appelez-nous	-
NI	A4554806		Snap Bushing		Appelez-nous	-
NI	10527501		Clip, Tube		Appelez-nous	-
NI	C8956101		Assy, Roller Bracket		Appelez-nous	-
