Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP67004977 Bushing, Top   (Replaces: C8964401) Special Order $ 8.20

2 C8972404 Stop, Satin Door Appelez-nous -
3 R0181181 Kit,dr Closure   (Replaces: D7751401) In-Stock Immediately $ 7.55

4 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

5 10495807 Hinge, Top L (e-ct) Appelez-nous -
6 R9800670 Kit, Screw   (Replaces: M0226331) Special Order $ 10.58

7 10399502 Kit,btm Hinge Shim Appelez-nous -
7 10399501 Kit,btm Hinge Shim Appelez-nous -
8 R0181181 Kit,dr Closure   (Replaces: D7748301) In-Stock Immediately $ 7.55

9 10496104 Kit,hinge Lh Btm(b) Appelez-nous -
10 W11227370 Screw, Lock Brake Mounting   (Replaces: M0220418) In-Stock Immediately $ 14.91

11 WP67006715 Screw   (Replaces: M0233847) Special Order $ 7.55

12 10504202 Cover Hinge Appelez-nous -
13 M0202325 Screw Appelez-nous -
14 10494506 Trim, Vertical Appelez-nous -
15 10602802 Trim, Frz Door (top) Appelez-nous -
16 10602503 Trim, Frz Dr (bottom) Ss Appelez-nous -
17 10361801 Shim, Dr Bushing Appelez-nous -
18 10345606 Handle, Refrig. Dr Appelez-nous -
19 10234704 Insert, Handle Appelez-nous -
20 10494604 Support, Fz Trim Appelez-nous -
21 10494704 Extrusion, Frz Door White Appelez-nous -
22 WPB5705307 Tube, Plastic , 68``   (Replaces: B5705321) Special Order $ 13.05

23 10281002 Grommet, Screw Appelez-nous -
24 R0195042 Double Backed Tape 6ft Roll Appelez-nous -
25 M0213815 Screw Appelez-nous -
26 10164202 Harness Fz Door Appelez-nous -
27 W11214483 Screw, Mach   (Replaces: M0202321) Special Order $ 14.72

33 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

34 B8387701 Shim, Door Closure Appelez-nous -
34 B8387702 Shim, Door Closure Appelez-nous -
35 10860201 Kit, Bot.hinge Shim Appelez-nous -
NOTE: The Foamed In Place Post Condenser Mullion Loop Which Replaces The Electric Mullion On This Manual Clips To The Back Of The Mullion. Any Attempt To Remove Wil Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

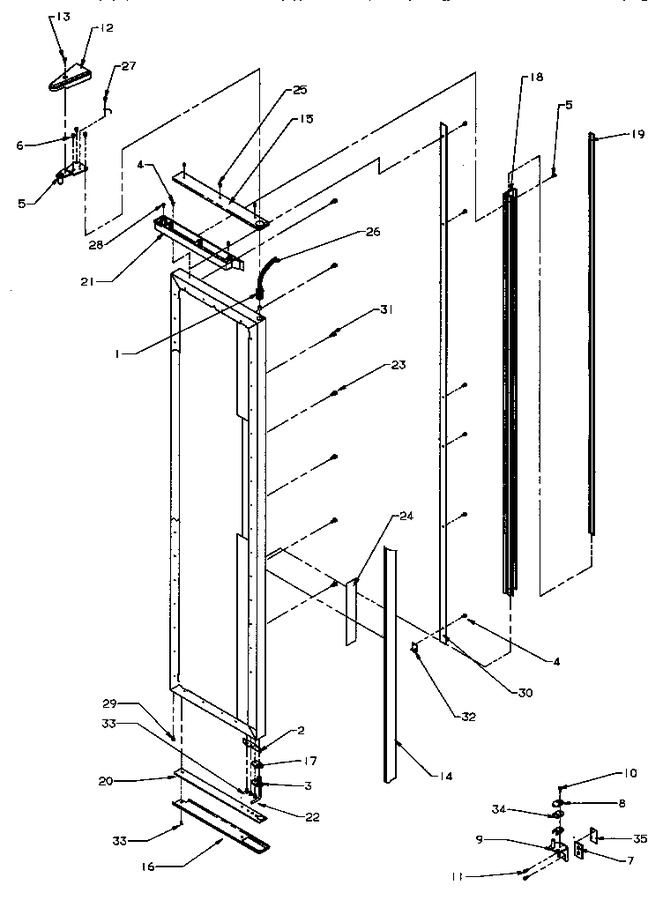

Diagram for GRH2203W (BOM: P1168105W W)
