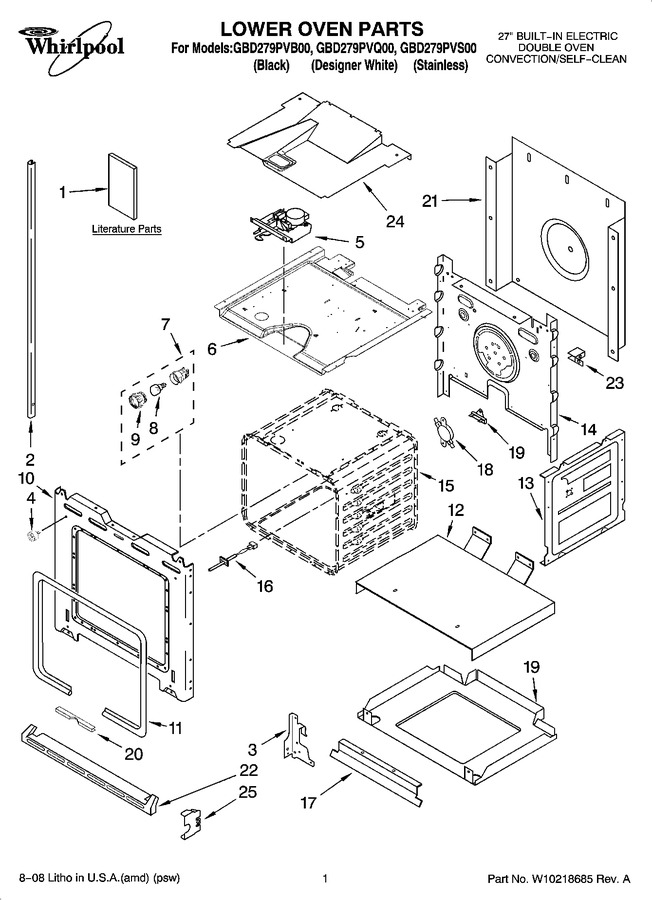

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3191638		Safer Cooking Tips (english)		Appelez-nous	-
1	W10192049		Installation Instructions		Appelez-nous	-
1	W10185219		Tech Sheet		Appelez-nous	-
1	9759133		Safer Cooking Tips (french)		Appelez-nous	-
1	W10192042		Use & Care Guide		Appelez-nous	-
2	W10207435		Trim, Side Right (black)		Appelez-nous	-
2	W10207437		Trim, Side Right (white)		Appelez-nous	-
2	W10145003		Trim, Side Right (stainless)		Appelez-nous	-
2	WPW10339500		Trim, Side Left (black)   (Replaces: W10207436)				$ 204.80
2	WPW10339502		Trim, Side Left (white)   (Replaces: W10207439)				$ 128.76
2	W10145002		Trim, Side Left (stainless)		Appelez-nous	-
3	WP4455606		Receiver, Hinge (right)   (Replaces: 4455606)			Immediately	$ 131.74
3	WP4455605		Receiver, Hinge (left)   (Replaces: 4455605)			Immediately	$ 127.70
4	W10105790		Bumper, Door				$ 7.41
5	WP9760889		Latch, Motorized   (Replaces: 9760888)			Immediately	$ 345.08
6	4455864		Top, Chassis				$ 22.85
7	WPW10307114		Assembly, Oven Light   (Replaces: W10009940)			Immediately	$ 116.01
8	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 47.38
9	W10169756		Lens, Light				$ 42.19
9	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
10	W10130370		Frame, Front				$ 79.39
10	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
10	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
11	WP4455381		Gasket, Door   (Replaces: 4455381)				$ 185.61
12	4451477		Support, Insulation		Appelez-nous	-
13	W10782197		Side, Chassis   (Replaces: 4455641)				$ 150.69
13	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
14	W10161109		Back, Chassis		Appelez-nous	-
14	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
16	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 95.83
16	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
17	9760676		Deflector, Vent		Appelez-nous	-
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
18	WP9759242		Fuse, Thermal   (Replaces: 9759242)			Immediately	$ 85.57
19	4455529		Base, Chassis		Appelez-nous	-
19	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
20	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
20	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
21	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
21	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
22	W10151130		Trim, Bottom Vent (stainless)		Appelez-nous	-
22	W10207684		Trim, Bottom Vent (black)				$ 65.77
22	W10207687		Trim, Bottom Vent (white)				$ 66.47
22	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
23	4449845		Support, Bracket		Appelez-nous	-
23	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
24	8302348		Divider, Center Vent		Appelez-nous	-
25	4452152		Bracket, Mounting Bottom Vent Trim				$ 35.18
	4449315		Insulation, Wrap				$ 64.81
	4450364		Insulation, Back		Appelez-nous	-
