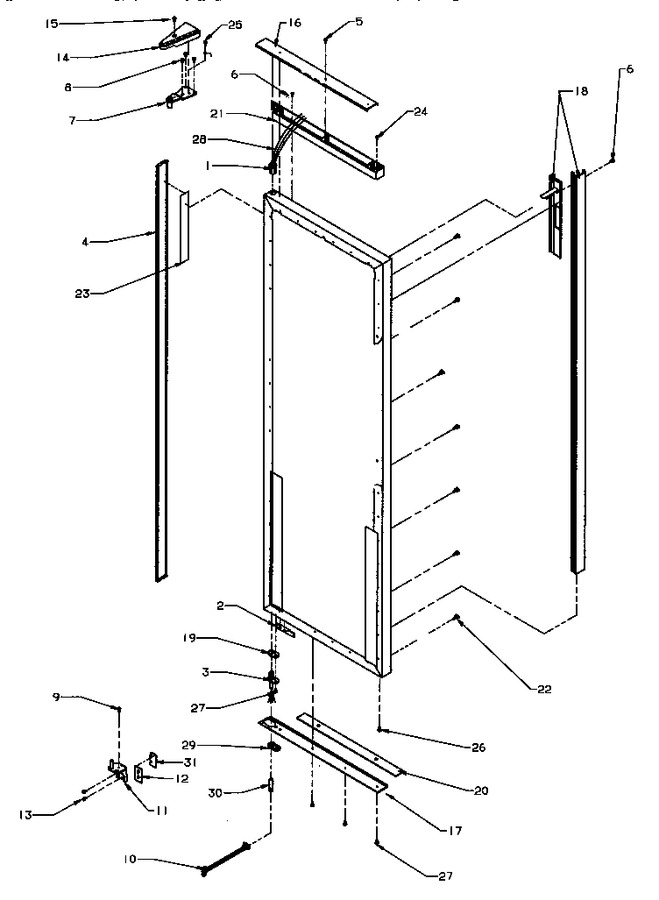

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP67004977 | Bushing, Top (Replaces: C8964401) |
|
$ 8.20 | |||||
| 2 | C8972403 | Stop, Door (blk) |
|
- | |||||
| 3 | D7833201 | Closure, Door (white) |
|
- | |||||
| 4 | 10494505 | Trim, Vertical |
|
- | |||||
| 5 | M0213815 | Screw |
|
- | |||||
| 6 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 7 | 10495805 | Hinge, Top R (e-ct) |
|
- | |||||
| 8 | R9800670 | Kit, Screw (Replaces: M0226331) |
|
$ 10.58 | |||||
| 9 | W11227370 | Screw, Lock Brake Mounting (Replaces: M0220418) |
|
Immediately | $ 14.91 | ||||
| 10 | M0335411 | Connector-12 Pin |
|
- | |||||
| 11 | 10496106 | Kit, Hinge E Rt Btm (sxs Elec) |
|
- | |||||
| 12 | 10399502 | Kit,btm Hinge Shim |
|
- | |||||
| 12 | 10399501 | Kit,btm Hinge Shim |
|
- | |||||
| 13 | WP67006715 | Screw (Replaces: M0233847) |
|
$ 7.55 | |||||
| 14 | 10504201 | Hinge- Cover Lh Gray |
|
- | |||||
| 15 | M0202325 | Screw |
|
- | |||||
| 16 | 10602702 | Trim, Refrig Door (top) |
|
- | |||||
| 17 | 10602604 | Trim, Refrig Door (bottom) |
|
- | |||||
| 18 | 10517302 | Assy, Ref Handle |
|
- | |||||
| 19 | 10361801 | Shim, Dr Bushing |
|
- | |||||
| 20 | 10494603 | Support Ref Trim (btm) |
|
- | |||||
| 21 | 10496004 | Extrusion, Refrig Door |
|
- | |||||
| 22 | M0586301 | Grommet, Screw |
|
- | |||||
| 23 | R0195042 | Double Backed Tape 6ft Roll |
|
- | |||||
| 24 | M0209932 | Screw, T.f. |
|
- | |||||
| 25 | W11214483 | Screw, Mach (Replaces: M0202321) |
|
Immediately | $ 14.72 | ||||
| 26 | M0213531 | Screw, Sm |
|
- | |||||
| 27 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 28 | 10520905 | Harness-ref Dr Kit |
|
- | |||||
| 29 | D7838401 | Closure, Door (white) |
|
- | |||||
| 30 | 10561601 | Assy, Hinge Pin |
|
- | |||||
| 31 | 10860201 | Kit, Bot.hinge Shim |
|
- |
