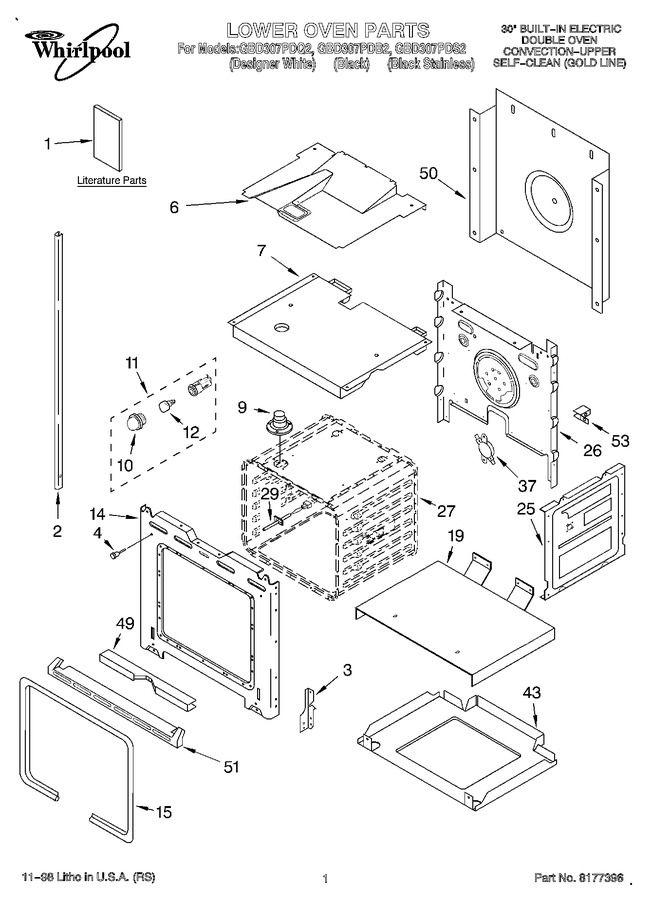

01 - Lower Oven, Literature
02 - Upper Oven
03 - Oven Door
04 - Latch
05 - Internal Oven
06 - Control Panel
07 - Top Venting, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT4452004 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT4449237 | Literature Parts (cookbook) |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | LIT4450411 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT4451887 | Literature Parts (tech Sheet) |
|
- | |||||
| 2 | WP8281236 | Trim, Side (screw) (Replaces: 4449747) |
|
$ 8.16 | |||||
| 2 | 4450854 | Trim, Side (left Hand)) (white Model) |
|
- | |||||
| 2 | 4450853 | Trim, Side (lh Black) |
|
- | |||||
| 2 | 4450850 | Trim, Side (rh Black) |
|
- | |||||
| 2 | 4450851 | Trim, Side (right Hand) (white Model) |
|
- | |||||
| 3 | 4454664 | Reciever, Hinge (left Hand) |
|
- | |||||
| 3 | 4454665 | Reciever, Hinge (right Hand) |
|
- | |||||
| 4 | 4448520 | Bumper, Door |
|
$ 22.25 | |||||
| 6 | 4452201 | Divider, Vent |
|
- | |||||
| 6 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 7 | 4455190 | Top, Chassis |
|
- | |||||
| 7 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 9 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 9 | W10861715 | Tube, Vent (Replaces: 4452158) |
|
$ 122.46 | |||||
| 10 | 4452165 | Lens, Light |
|
- | |||||
| 11 | 4452368 | Oven Light Assy |
|
- | |||||
| 12 | WP4173175 | Bulb, Light (Replaces: 4452166) |
|
Immediately | $ 53.62 | ||||
| 14 | WP4450118 | Nut (Replaces: 4450118) |
|
$ 8.78 | |||||
| 14 | 4451740 | Frame, Front |
|
- | |||||
| 14 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 15 | W11675844 | Gasket, Door (Replaces: 4455382) |
|
Immediately | $ 74.56 | ||||
| 19 | 4451478 | Support, Insulation |
|
$ 54.10 | |||||
| 25 | 4454691 | Side, Chassis (r.h. & L.h.) |
|
- | |||||
| 25 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 26 | 4452234 | Back, Chassis |
|
- | |||||
| 26 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 29 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 29 | 4451665 | Sensor |
|
$ 107.99 | |||||
| 33 | WP4449809 | Bottom Assy (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 33 | 4451619 | Deflector, Vent |
|
- | |||||
| 37 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 37 | WP9759243 | Thermostat (tod) (temp.) Spst (Replaces: 4451442) |
|
Immediately | $ 55.44 | ||||
| 43 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 43 | 4451398 | Base, Chassis |
|
- | |||||
| 49 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 49 | WP4448933 | Retainer, Gasket (Replaces: 4448933) |
|
$ 9.30 | |||||
| 50 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 50 | WP4451747 | Cover-back (Replaces: 4451747) |
|
$ 150.07 | |||||
| 51 | 4448477 | Trim, Bottom (black Screw) |
|
$ 71.44 | |||||
| 51 | 4448478 | Trim, Bottom (white) |
|
- | |||||
| 53 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 53 | 4450365 | Insulation, Back |
|
$ 70.95 | |||||
| 53 | 4449845 | Bracket-support |
|
- | |||||
| 53 | 4450289 | White |
|
- | |||||
| 53 | 4159465 | Screw |
|
- | |||||
| 53 | W11684730 | Insulation, Wrap (Replaces: 4449316) |
|
$ 124.85 |
