SELECT A DIAGRAM

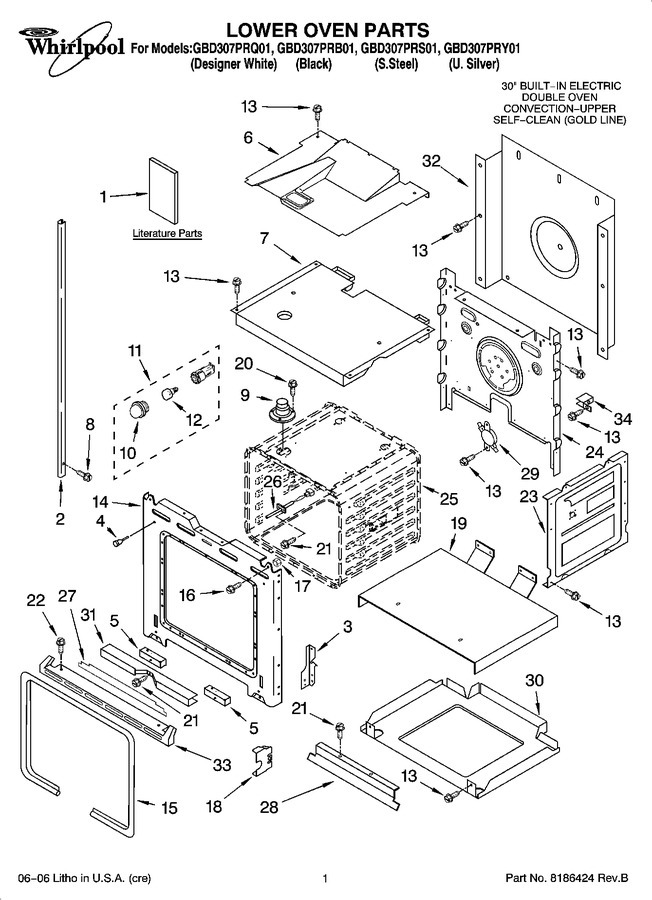

01 - Lower Oven Parts


02 - Upper Oven Parts


03 - Oven Door Parts


04 - Latch Parts


05 - Internal Oven Parts


06 - Control Panel Parts


07 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8303647		Installation Instructions Owners Manual (sgl/dbl Oven)		Appelez-nous	-
1	8304075		English		Appelez-nous	-
1	8304076		French		Appelez-nous	-
1	8302068		Tech Sheet (oven)		Appelez-nous	-
1	3191638		Safer Cooking Tips		Appelez-nous	-
1	9759133		Safer Cooking Tips		Appelez-nous	-
2	8302919		Trim, Side (rh White)		Appelez-nous	-
2	WPW10339500		Trim, Side (lh Black)   (Replaces: 8302918)				$ 204.80
2	8303209		Trim, Side (lh S.steel)		Appelez-nous	-
2	8303210		Trim, Side (rh S.steel)		Appelez-nous	-
2	WP8281236		Trim, Side (screw)   (Replaces: 8281236)				$ 8.16
2	WPW10339502		Trim, Side (lh White)   (Replaces: 8302920)				$ 128.76
2	8302917		Trim, Side (rh Black)		Appelez-nous	-
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
4	4448520		Bumper, Door				$ 22.25
5	4452490		Spacer, Foam				$ 34.83
6	8302349		Divider, Vent				$ 142.26
7	8303099		Top Chassis				$ 70.97
8	WP8281236		Screw (black)   (Replaces: 8281236)				$ 8.16
8	WP3400805		Screw (silver)   (Replaces: 3400805)				$ 7.55
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	4452165		Lens, Light		Appelez-nous	-
11	4452368		Oven Light Assy		Appelez-nous	-
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
13	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
14	9759060		Frame, Front		Appelez-nous	-
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 74.56
16	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
17	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
18	4452152		Bracket, Mounting				$ 35.18
19	4451478		Support, Insulation				$ 54.10
20	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
21	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
22	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
23	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 150.69
24	4452234		Back, Chassis		Appelez-nous	-
26	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
27	4452337		Insulation Bottom Vent		Appelez-nous	-
28	9760677		Deflector (btm)				$ 155.46
29	WP9759242		Thermostat (tod) (temp.) Spst   (Replaces: 9759242)			Immediately	$ 85.57
30	9759713		Base, Chassis				$ 100.19
31	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
32	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
33	WPW10207689		Trim, Bottom (white)   (Replaces: 8302948)				$ 205.84
33	WPW10207689		Trim, Bottom (black)   (Replaces: 8302947)				$ 205.84
33	8302950		Trim, Bottom (s.steel)		Appelez-nous	-
34	4450365		Insulation, Back				$ 70.95
34	4449845		Support, Bracket		Appelez-nous	-
34	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85

    View Diagram in Separate Window       Print Part List
