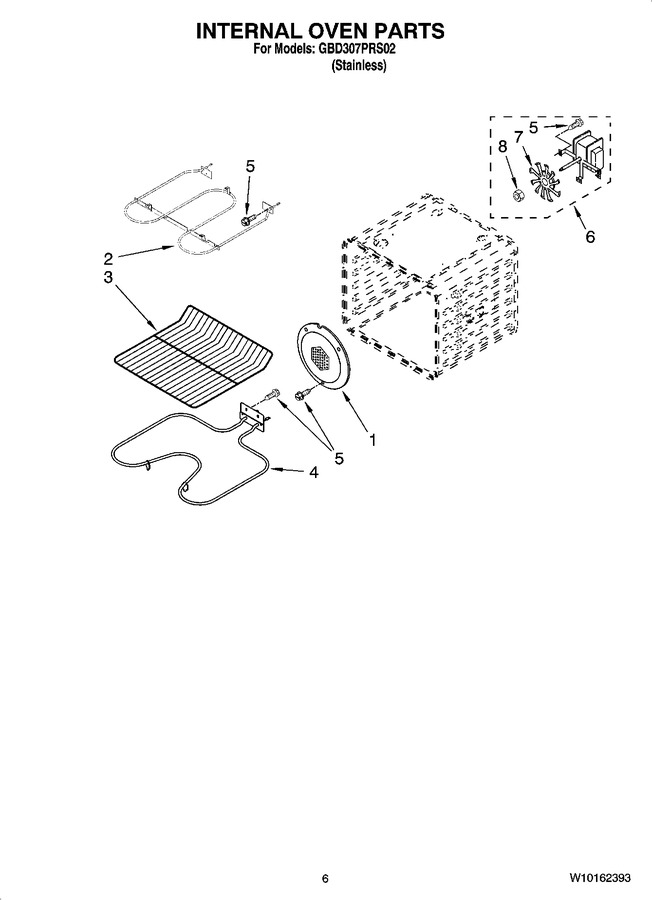

04 - Internal Oven Parts
05 - Control Panel Parts
06 - Top Venting Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10160821 | Cover, Fan (Replaces: 4448988) |
|
$ 285.59 | |||||
| 2 | WP9760771 | Element, Broil (Replaces: 9760771) |
|
Immediately | $ 126.28 | ||||
| 3 | WPW10179152 | Rack, Oven (Replaces: 4448717) |
|
Immediately | $ 148.08 | ||||
| 4 | WPW10207397 | Element, Convection Bake (Replaces: 9760766) |
|
Immediately | $ 81.31 | ||||
| 5 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 6 | 4451583 | Fan, Convection |
|
$ 140.53 | |||||
| 7 | 4452226 | Blade, Fan |
|
$ 30.89 | |||||
| 8 | 4452227 | Nut |
|
$ 33.98 |
