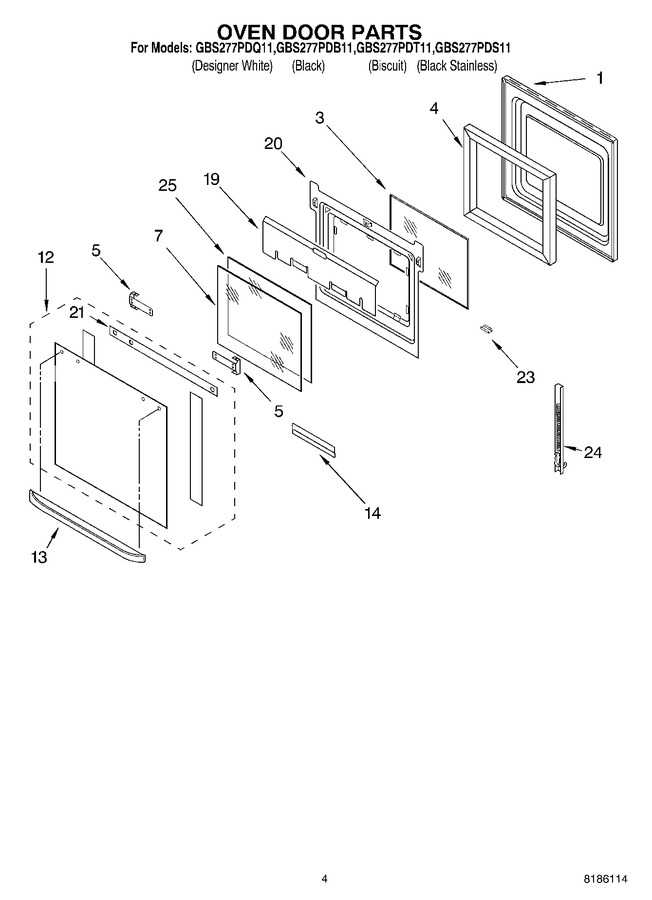

03 - Oven Door Parts
04 - Internal Oven Parts
05 - Top Venting Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4455617 | Door Liner |
|
- | |||||
| 3 | WP4449253 | Glass, Inner (Replaces: 4449253) |
|
$ 168.61 | |||||
| 4 | 4451721 | Insulation, Door |
|
$ 37.62 | |||||
| 5 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 8.18 | ||||
| 5 | W10276642 | Screw (Replaces: 4451040) |
|
$ 6.41 | |||||
| 5 | 4450813 | Bracket, Handle |
|
$ 24.20 | |||||
| 7 | WP4449257 | Glass, Inner (Replaces: 4449257) |
|
Immediately | $ 208.31 | ||||
| 12 | 8300912 | Door Glass, Assy (black) |
|
$ 129.30 | |||||
| 12 | 8300905 | Door Glass, Assy (black Stainless) |
|
- | |||||
| 12 | 8300904 | Door Glass Assy (biscuit) |
|
- | |||||
| 12 | 8300911 | Door Glass, Assy (white) |
|
$ 126.26 | |||||
| 13 | 8300255 | Door Handle (biscuit) |
|
- | |||||
| 13 | 4448405 | Door Handle (black) |
|
- | |||||
| 13 | 4448406 | Door Handle (white) |
|
- | |||||
| 14 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 14 | 4450470 | Retainer, Glass |
|
- | |||||
| 19 | 4450361 | Shield, Heat |
|
- | |||||
| 19 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 20 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 20 | 8300777 | Retainer, Glass |
|
- | |||||
| 21 | 8300819 | Seal, Door Top |
|
- | |||||
| 23 | 4452119 | Retainer, Clip (biscuit) |
|
- | |||||
| 23 | 4450863 | Retainer, Clip (black) |
|
- | |||||
| 23 | 4450864 | Retainer, Clip (white) |
|
- | |||||
| 23 | WP3400832 | Retainer, Clip (screw) (Replaces: 3400832) |
|
Immediately | $ 8.18 | ||||
| 24 | 9760570 | Hinge, Door (white, Black & Biscuit Models) (left Side (black Stainless Model)) (Replaces: 8300570) |
|
$ 117.73 | |||||
| 24 | WP9760572 | Hinge, Door (white, Black & Biscuit Models) (left Side) (Replaces: 8300572) |
|
$ 111.96 | |||||
| 24 | WP4449743 | Hinge, Door (white, Black & Biscuit Models) (screw) (Replaces: 4449743) |
|
$ 7.55 | |||||
| 24 | 9760569 | Hinge, Door (white, Black & Biscuit Models) (right Side) (Replaces: 8300569) |
|
$ 118.42 | |||||
| 24 | WP9760571 | Hinge, Door (white, Black & Biscuit Models) (right Side) (Replaces: 8300571) |
|
Immediately | $ 114.51 | ||||
| 25 | 8300973 | Glass. Inner |
|
- |
