SELECT A DIAGRAM

01 - Oven, Literature

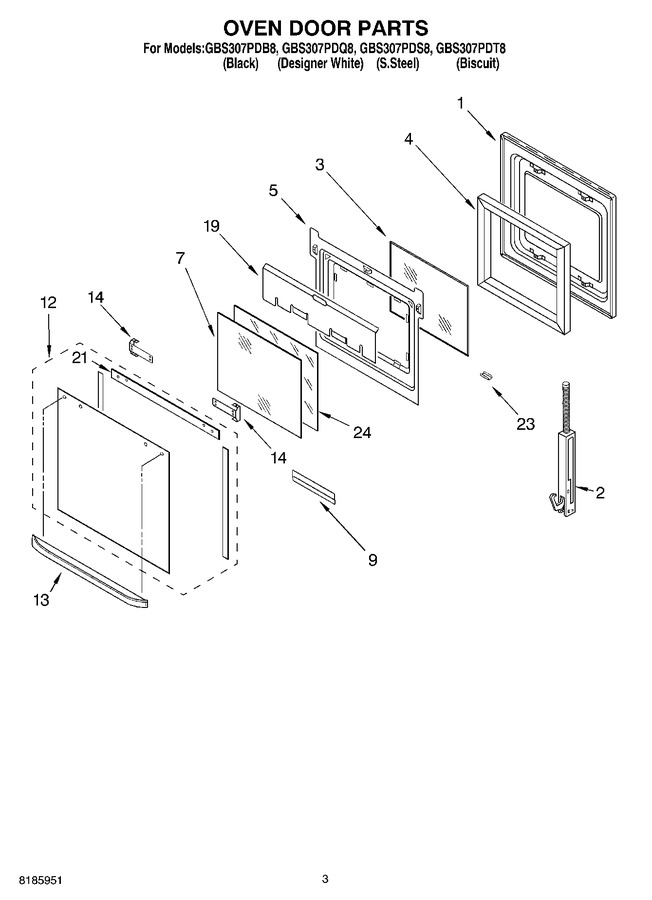

02 - Oven Door


03 - Internal Oven


04 - Control Panel


05 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Door Liner   (Replaces: 4455618)				$ 370.46
2	WP9760574		Hinge, Door (left Hand)   (Replaces: 8300574)			Immediately	$ 67.07
2	WP9760571		Hinge, Door (right Hand)   (Replaces: 8300571)			Immediately	$ 114.51
2	WP9760572		Hinge, Door (left Hand (hinge For Black S.steel Models))   (Replaces: 8300572)				$ 111.96
2	8300573		Hinge, Door (right Hand)		Appelez-nous	-
2	WP4449743		Hinge, Door (screw)   (Replaces: 4449743)				$ 7.55
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 213.34
4	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 189.77
5	8300778		Retainer, Glass		Appelez-nous	-
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
7	WP4449263		Glass, Inner   (Replaces: 4449263)			Immediately	$ 167.89
9	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
9	4451668		Retainer, Glass		Appelez-nous	-
12	4452066		Assy, Door Glass (white Model)		Appelez-nous	-
12	4452065		Assy, Door Glass (black Model)		Appelez-nous	-
12	WP9759074		Assy, Door Glass (black Stainless)   (Replaces: 4452479)				$ 439.14
12	4452859		Assy, Door Glass (biscuit)		Appelez-nous	-
13	4448854		Door Handle (black Model)				$ 74.07
13	4448855		Door Handle (white Model)		Appelez-nous	-
14	WP4449743		Screw (2)   (Replaces: 4449743)				$ 7.55
14	W10276642		Screw   (Replaces: 4451040)				$ 6.41
14	4450813		Bracket, Handle				$ 24.20
19	4450362		Shield, Heat		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
21	8300820		Seal, Door Top		Appelez-nous	-
23	WP4449743		Retainer, Clip (screw)   (Replaces: 4449743)				$ 7.55
23	4450863		Retainer, Clip (black Model)		Appelez-nous	-
23	4450864		Retainer, Clip (white Model)		Appelez-nous	-
24	4455257		Glass, Inner				$ 85.45

    View Diagram in Separate Window       Print Part List
