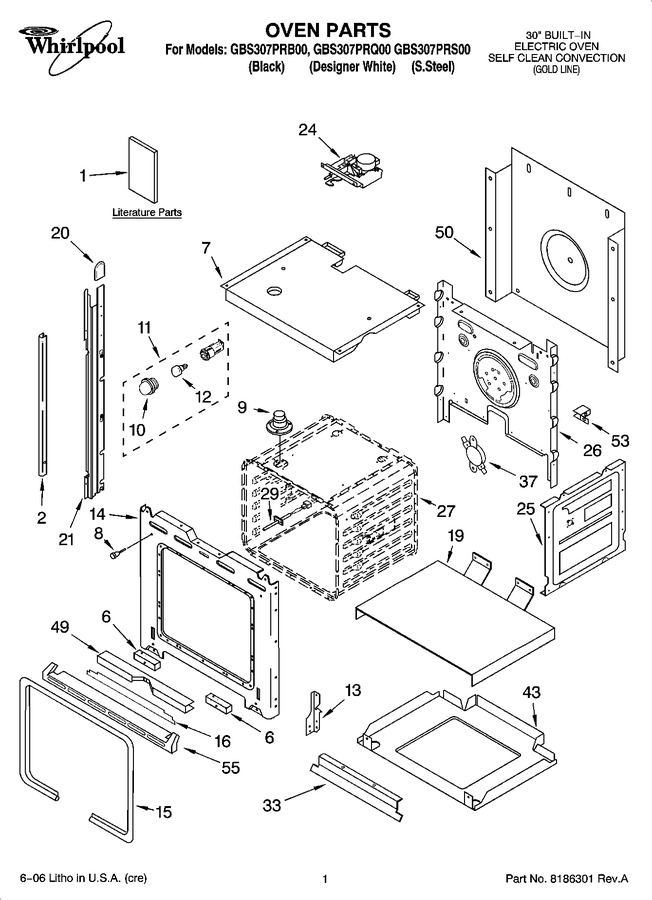

SELECT A DIAGRAM

01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9759133		Safer Cooking Tips		Appelez-nous	-
1	8301928		Installation Instructions, M/w Trim Kit		Appelez-nous	-
1	8303647		Installation Instructions		Appelez-nous	-
1	8303645		Use & Care Guide		Appelez-nous	-
1	8301758		Tech Sheet		Appelez-nous	-
1	4449237		Cookbook Conv.		Appelez-nous	-
1	8302333		Installation/ Undercounter		Appelez-nous	-
2	WP3400832		Trim, Side (left Hand) (screw)   (Replaces: 3400832)			Immediately	$ 8.18
2	8302908		Trim, Side (right Hand) (black)		Appelez-nous	-
2	8302910		Trim, Side (left Hand) (white)				$ 35.87
2	8302907		Trim, Side (left Hand) (black)		Appelez-nous	-
2	8302909		Trim, Side (right Hand) (white)		Appelez-nous	-
2	8303213		Trim, Side (right Hand) (s.steel)		Appelez-nous	-
2	8303214		Trim, Side (left Hand) (s.steel)		Appelez-nous	-
6	4452490		Spacer, Foam				$ 34.83
7	4455865		Top, Chassis		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
8	4448520		Bumper, Door				$ 22.25
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	4452165		Lens, Light		Appelez-nous	-
11	4452368		Oven Light Assy		Appelez-nous	-
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
13	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
13	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
14	9759060		Frame, Front		Appelez-nous	-
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 74.56
16	4452337		Insulation Bottom Vent		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
19	4451478		Support, Insulation				$ 54.10
20	4451605		Cap, Spacer				$ 38.55
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 8.16
21	8303115		Rail, Side (right Side)				$ 164.47
21	8303116		Rail, Side (left Side)		Appelez-nous	-
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
24	WP9760889		Latch, Motorized   (Replaces: 9759525)			Immediately	$ 345.08
24	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
25	W10782197		Side, Chassis (r.h. & L.h.)   (Replaces: 4455641)				$ 150.69
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4452234		Back, Chassis		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
33	4452496		Deflector (btm)		Appelez-nous	-
33	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
37	WP9759243		Thermostat (tod) (temp.) Spst   (Replaces: 9759243)			Immediately	$ 55.44
43	WP4449809		Screw (2)   (Replaces: 4449809)			Immediately	$ 7.55
43	9759713		Base, Chassis				$ 100.19
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
49	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
53	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
53	4449845		Support, Bracket		Appelez-nous	-
55	4450365		Insulation, Back				$ 70.95
55	8303582		Trim, Bottom (s.steel)		Appelez-nous	-
55	4452152		Trim, Bottom (bracket, Bottom Mounting)				$ 35.18
55	WP3400832		Trim, Bottom (screw)   (Replaces: 3400832)			Immediately	$ 8.18
55	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85
55	WPW10207689		Trim, Bottom (black Model)   (Replaces: 8303583)				$ 205.84
55	WPW10207689		Trim, Bottom (white Model)   (Replaces: 8303584)				$ 205.84

    View Diagram in Separate Window       Print Part List
