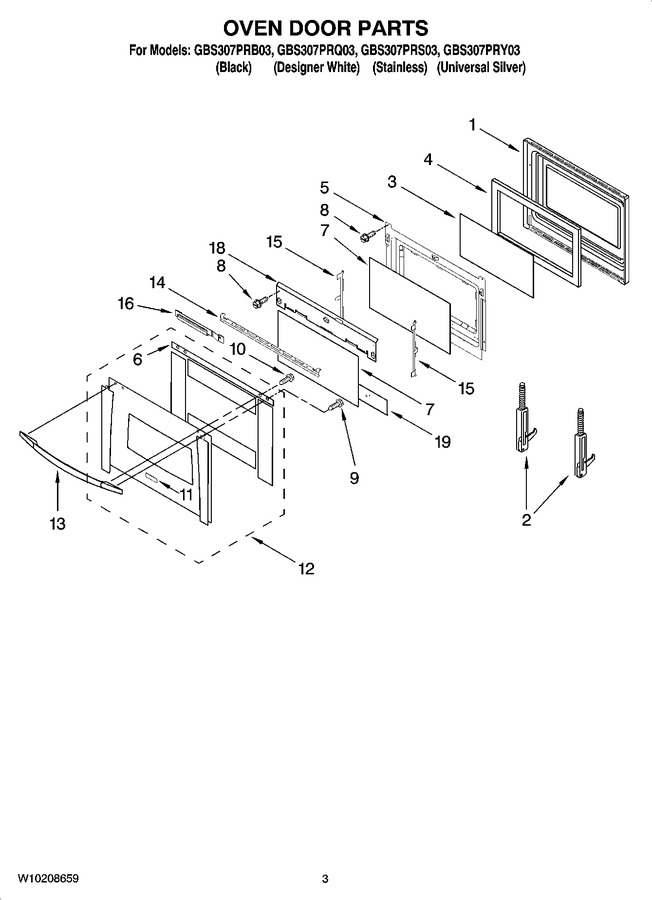

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4448520 | Bumper |
|
$ 22.25 | |||||
| 1 | WP9759413 | Door Liner (Replaces: 8303700) |
|
$ 370.46 | |||||
| 2 | WP9760577 | Hinge, Door (right) (Replaces: 9760577) |
|
Immediately | $ 116.54 | ||||
| 2 | WP9760578 | Hinge, Door (left) (Replaces: 9760578) |
|
Immediately | $ 115.46 | ||||
| 3 | WP4449259 | Glass, Inner (Replaces: 4449259) |
|
$ 213.34 | |||||
| 4 | WP4451722 | Insulation, Door (Replaces: 4451722) |
|
$ 189.77 | |||||
| 5 | WP4457132 | Retainer, Glass (Replaces: 4457132) |
|
$ 320.99 | |||||
| 6 | 8303878 | Seal - Door |
|
- | |||||
| 7 | WP9759225 | Glass, Inner (Replaces: 9759225) |
|
Immediately | $ 194.20 | ||||
| 8 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 9 | W10276642 | Screw (Replaces: 4451040) |
|
$ 6.41 | |||||
| 10 | WP4449743 | Screw (Replaces: 4449743) |
|
$ 7.55 | |||||
| 11 | 8303810 | Name Plate |
|
- | |||||
| 12 | 8303288 | Assembly, Door Glass (stainless) |
|
- | |||||
| 12 | 8304177 | Assembly, Door Glass (silver) |
|
- | |||||
| 12 | 8303300 | Assembly, Door Glass (black) |
|
- | |||||
| 12 | 8303306 | Assembly, Door Glass (white) |
|
- | |||||
| 13 | 8302813 | Door Handle (black) |
|
$ 76.76 | |||||
| 13 | 8302814 | Door Handle (white) |
|
$ 96.22 | |||||
| 13 | 8303164 | Door Handle (stainless) |
|
- | |||||
| 14 | W10136473 | Bracket, Handle |
|
- | |||||
| 15 | WP9759229 | Bracket (2nd Glass) (Replaces: 9759229) |
|
$ 187.50 | |||||
| 16 | 9759230 | Bracket (3rdglass) |
|
$ 36.30 | |||||
| 18 | 4457104 | Shield, Heat (Replaces: 4457103) |
|
$ 39.22 | |||||
| 19 | 4457114 | Shield, Heat-bottom |
|
$ 217.79 |
