SELECT A DIAGRAM
01 - Oven Parts
02 - Oven Door Parts
03 - Internal Oven Parts

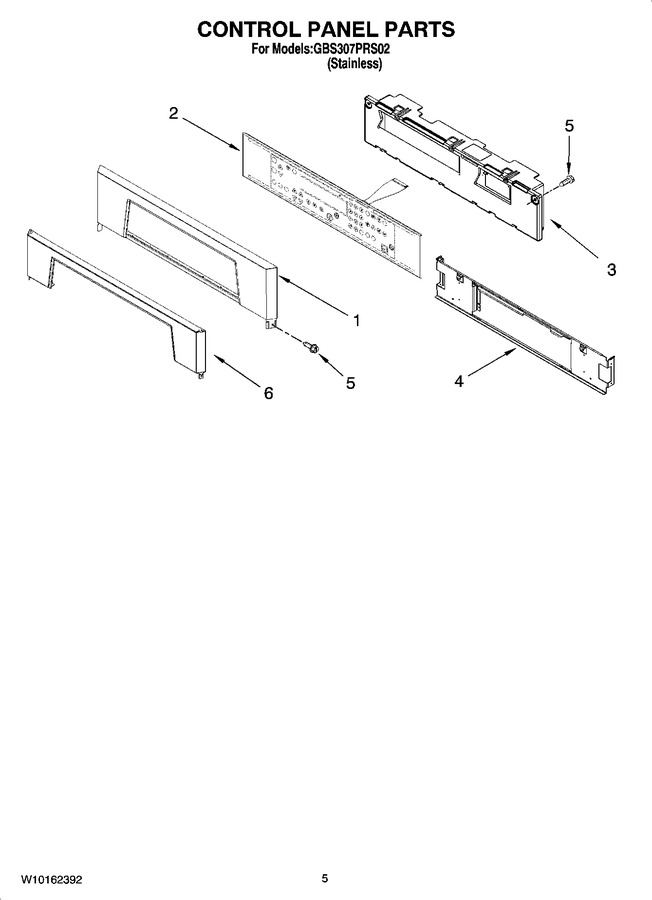

04 - Control Panel Parts
05 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8302848 | Assembly, Control Panel (Replaces: 8302848) |
|
$ 314.81 | |||||
| 2 | 8303180 | Assembly, Switch |
|
- | |||||
| 3 | 8303885 | Assembly, Control |
|
- | |||||
| 4 | 8304161 | Backer, Control |
|
- | |||||
| 5 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.98 | |||||
| 6 | W10144998 | Trim, Panel |
|
- |
