SELECT A DIAGRAM

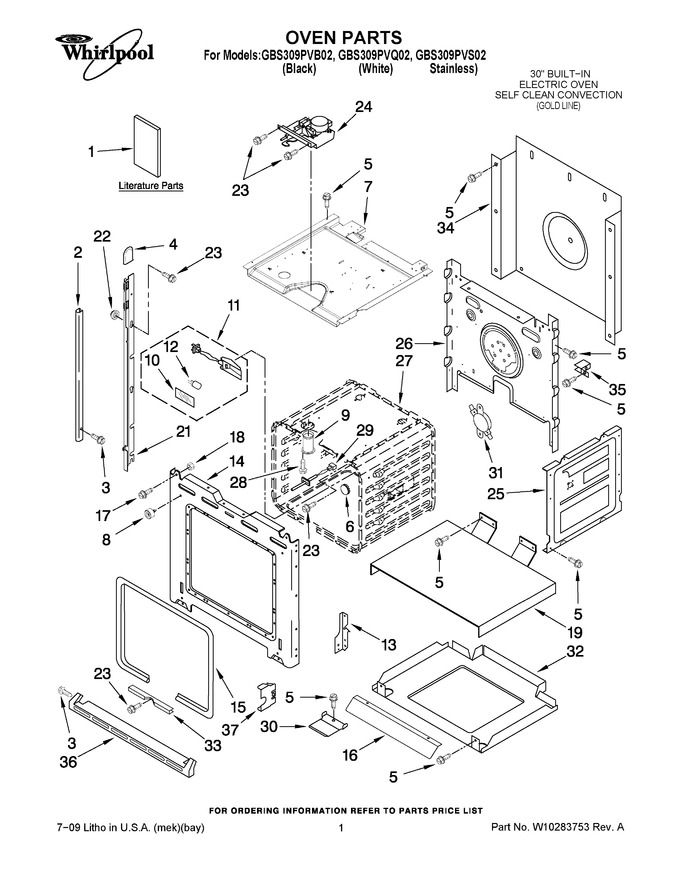

01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10185218		Tech Sheet (english)		Appelez-nous	-
1	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1	4457288		Tips, Safe Cooking (install, Instruct Bottom Trim)		Appelez-nous	-
1	W10205112		Tech Sheet (french)		Appelez-nous	-
1	W10192049		Installation Instructions		Appelez-nous	-
1	W10192042		Owners Manual		Appelez-nous	-
1	8304571		Tech Sheet (installation/undercounter)		Appelez-nous	-
1	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
2	W10145004		Trim, Side Right (stainless)				$ 54.65
2	W10207430		Trim, Side Right (black)		Appelez-nous	-
2	W10207431		Trim, Side Right (white)		Appelez-nous	-
2	W10207429		Trim, Side Left (black)		Appelez-nous	-
2	W10207432		Trim, Side Left (white)		Appelez-nous	-
2	W10145005		Trim, Side Left (stainless)				$ 63.09
3	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
4	4451605		Cap, Spacer				$ 38.55
5	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
6	4448982		Plug, Button		Appelez-nous	-
7	8303099		Top Chassis				$ 70.97
8	W10105790		Bumper, Door				$ 7.41
9	W10861715		Tube, Vent   (Replaces: 4452158)				$ 122.46
10	W10169756		Lens, Light				$ 42.19
11	WPW10307114		Assembly, Oven Light   (Replaces: W10009940)			Immediately	$ 116.01
12	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 47.38
13	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 127.70
13	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 131.74
14	WPW10115831		Frame, Front   (Replaces: W10115831)				$ 351.89
15	W11675844		Gasket, Door   (Replaces: 4455382)			Immediately	$ 74.56
16	9760677		Deflector, Vent				$ 155.46
17	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
18	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
19	4451478		Support, Insulation				$ 54.10
21	8303115		Rail, Side (right)				$ 164.47
21	8303116		Rail, Side (left)		Appelez-nous	-
22	WP4448444		Grommet, Mounting Rail   (Replaces: 4448444)				$ 7.85
23	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
24	WPW10195934		Latch, Motorized   (Replaces: W10195934)			Immediately	$ 288.66
25	W10782197		Side, Chassis   (Replaces: 4455641)				$ 150.69
26	W10161110		Back, Chassis		Appelez-nous	-
27	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
28	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
29	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 95.83
30	W10145009		Deflector, Vent Box   (Replaces: 4452489)				$ 81.61
31	WP9759242		Thermostat   (Replaces: 9759242)			Immediately	$ 85.57
32	9759713		Base, Chassis				$ 100.19
33	WP4448933		Retainer, Gasket   (Replaces: 4448933)				$ 9.30
34	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
35	4449845		Support, Bracket		Appelez-nous	-
36	WPW10207689		Vent, Bottom Trim (black)   (Replaces: W10207689)				$ 205.84
36	W10151131		Vent, Bottom Trim (stainless)		Appelez-nous	-
36	WPW10207689		Vent, Bottom Trim (white)   (Replaces: W10207690)				$ 205.84
37	4452152		Bracket, Mounting- Bottom Vent				$ 35.18
NI	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85
NI	4450365		Insulation, Back				$ 70.95
