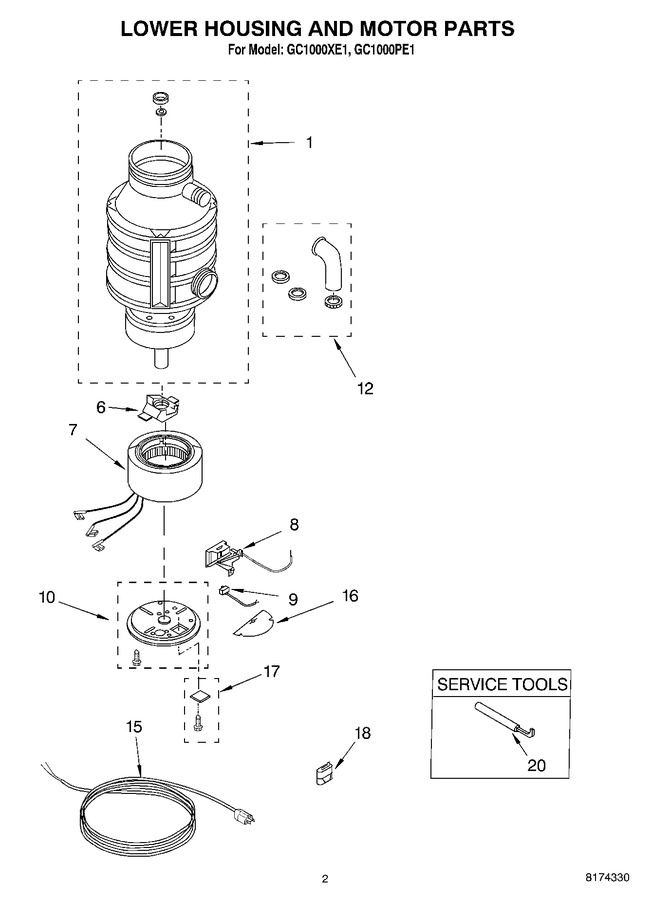

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 6 | 4211322 | Actuator Assembly, Centrifugal |
|
$ 103.67 | |||||
| 7 | 8174322 | Stator Assembly |
|
- | |||||
| 8 | 8174312 | Switch Assembly, Start |
|
$ 298.69 | |||||
| 9 | 882726 | Protector, Overload (Replaces: 4211549) |
|
- | |||||
| 10 | 8174345 | End Frame Assembly, Lower (Replaces: 4211647) |
|
- | |||||
| 12 | 8174317 | Kit, Installation |
|
- | |||||
| 15 | 4211472 | Plug & Cord (gc1000pe1 Only) |
|
- | |||||
| 16 | 4211351 | Shield, Wire |
|
- | |||||
| 17 | 8174315 | Cover, Terminal |
|
- | |||||
| 18 | 8174329 | Bushing (gc1000pe1 Only) |
|
- | |||||
| 20 | WP8174310 | Wrench, Emergency (Replaces: 8174310) |
|
$ 22.35 | |||||
| LIT4211613 | Guide, Use And Care |
|
- | ||||||
| LIT4211614 | Instructions, Installation |
|
- |
