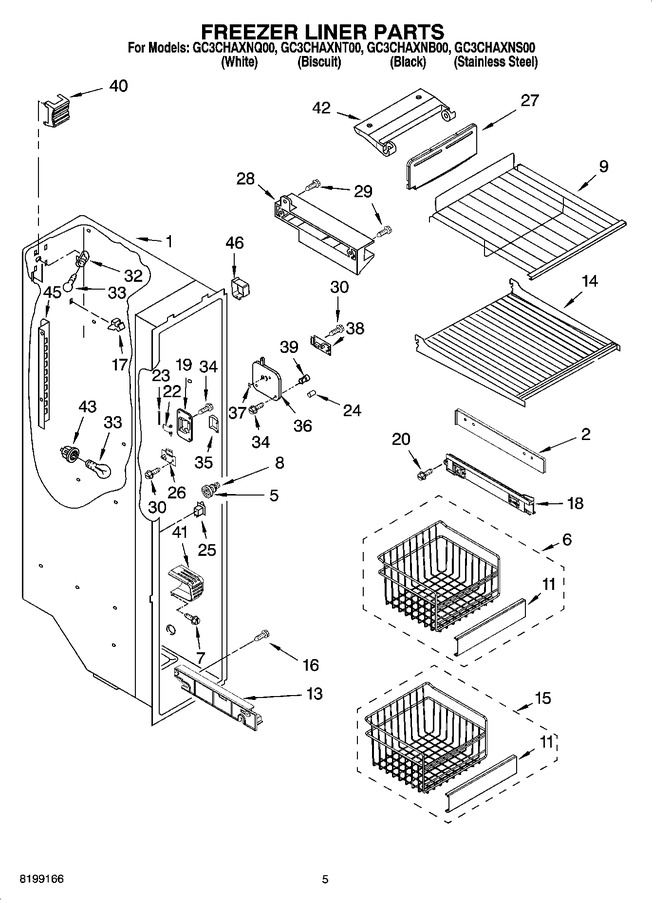

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Seviceable Part)		Appelez-nous	-
2	2223777		Spacer, Slide (2)		Appelez-nous	-
5	WP2196483		Stud Assembly (10)   (Replaces: 2196483)				$ 10.87
6	2223690		Basket, Deep (2)		Appelez-nous	-
7	W10142289		Screw   (Replaces: 3400893)				$ 9.61
8	WP3400806		Screw (10)   (Replaces: 8281158)				$ 8.10
9	2223500		Shelf Assembly, Cantilever (2)		Appelez-nous	-
11	2223782		Front, Basket		Appelez-nous	-
13	2223788		Shelf Track (left Side)				$ 40.68
13	2223787		Shelf Track (right Side)				$ 40.35
14	2223681		Shelf, Fixed				$ 37.08
15	2223692		Basket, Lower		Appelez-nous	-
16	W10759522		Screw   (Replaces: 486298)				$ 8.24
17	2215823		Clip, Air Duct   (Replaces: 842534)				$ 10.94
18	2301544		Glide Assembly, Basket (2) (right Side)		Appelez-nous	-
18	2301545		Glide Assembly, Basket (2) (left Side)				$ 145.88
19	2223991		Cover, Emitter		Appelez-nous	-
20	8534064		Screw (8)		Appelez-nous	-
22	WP2198635		Spring   (Replaces: 2198635)				$ 91.43
23	WP2198634		Pin   (Replaces: 2198634)				$ 18.65
24	2198665		Tube, P.c. Board				$ 21.52
25	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 40.09
26	W11629974		P.c. Board Emitter   (Replaces: 2220398)			Immediately	$ 421.12
27	WPW10185438		Cover, Ice Maker   (Replaces: 2223321)				$ 89.92
28	2212321		Slide, Ice Maker Mounting (right Side)				$ 67.14
28	2306900		Slide, Ice Maker Mounting (left Side)		Appelez-nous	-
29	WP489478		Screw   (Replaces: 489478)				$ 8.18
30	2006254		Screw   (Replaces: 489214)				$ 13.79
32	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 115.67
33	W11679940		Light Bulb   (Replaces: 2255743)			Immediately	$ 11.30
34	WPW10142283		Screw   (Replaces: 8281185)				$ 10.33
35	WP2198633		Flipper   (Replaces: 2198633)			Immediately	$ 50.68
36	2255558		Cover, Receiver				$ 41.19
37	2315398		Slide, Ice Maker Shut Off   (Replaces: 2255562)				$ 11.45
38	W11629974		P.c. Board, Receiver   (Replaces: 2255114)			Immediately	$ 421.12
39	WP2198643		Lens   (Replaces: 2198643)				$ 8.59
40	2198589		Light Shield		Appelez-nous	-
41	W11298978		Light Lens   (Replaces: 2212340)				$ 98.57
42	WP2198641		Bracket, Ice Maker Cover   (Replaces: 2198641)				$ 7.55
43	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 106.16
45	2198609		Ladder (left Side)				$ 42.40
45	2198610		Ladder (right Side)				$ 63.20
46	2306901		Shield, Wiring		Appelez-nous	-
