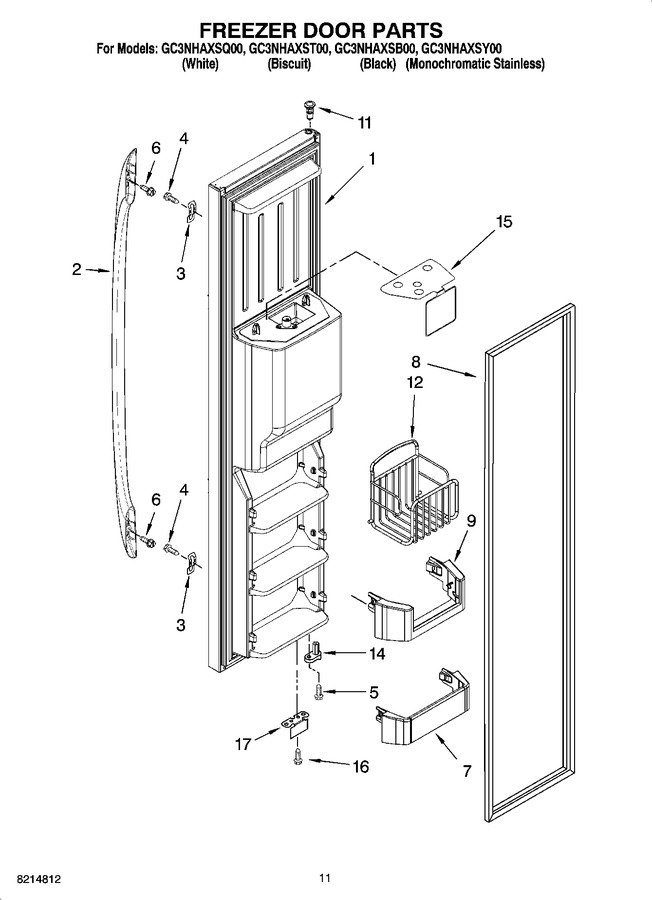

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2307067W		Freezer Door (includes 8) (white)		Appelez-nous	-
1	2307067T		Freezer Door (includes 8) (biscuit)		Appelez-nous	-
1	2307067B		Freezer Door (includes 8) (black)		Appelez-nous	-
1	2307067S		Freezer Door (includes 8) (monochromatic Stainless)		Appelez-nous	-
2	2313351W		Handle (includes 6) (white)		Appelez-nous	-
2	2313351US		Handle (includes 6) (universal Silver)		Appelez-nous	-
2	2313351B		Handle (includes 6) (black)				$ 121.83
2	2313351T		Handle (includes 6) (biscuit)		Appelez-nous	-
3	WP2255411		Clip, Mounting   (Replaces: 2255411)				$ 34.81
4	WP489491		Screw   (Replaces: 489491)				$ 6.95
5	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
6	8533920		Screw				$ 5.27
7	WP2171157		Shelf Bin   (Replaces: 2171157K)				$ 60.67
8	2223912		Door Gasket, Magnetic (black)		Appelez-nous	-
8	2223850		Door Gasket, Magnetic (mist Beige)		Appelez-nous	-
9	2223334		Trivet, Tilt-out (2)				$ 25.46
11	2308050		Thimble, Top		Appelez-nous	-
12	2304309		Basket, Tilt-out (2)				$ 77.01
14	WP2223752		Door Closer, Upper Cam   (Replaces: 2223752)				$ 20.15
15	2305474		Safety Barrier		Appelez-nous	-
16	WP489483		Screw   (Replaces: 489420)				$ 10.87
17	2317707		Bracket, Door Stop Following Parts Not Illustrated (tube, Door)		Appelez-nous	-
17	2306940		Bracket, Door Stop (chrome)				$ 97.08
17	2306940B		Bracket, Door Stop (black)				$ 37.11
17	2310224		Bracket, Door Stop Following Parts Not Illustrated (wire Harness, Freezer Door)		Appelez-nous	-
