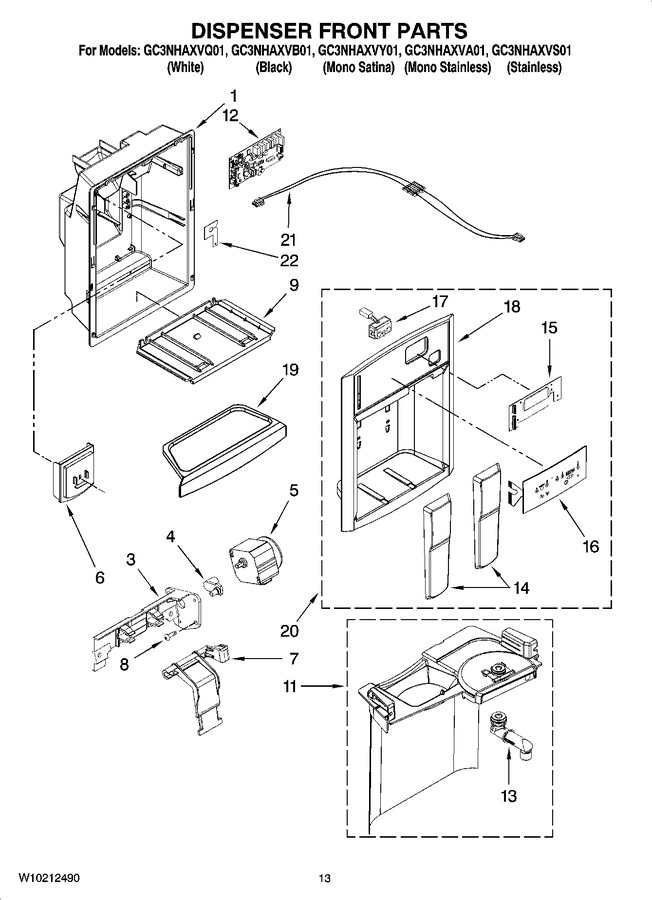

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | WP2305202 | Bracket, Motor (Replaces: 2305202) |
|
$ 96.76 | |||||
| 4 | WP2305242 | Connector, Door Bracket (Replaces: 2305242) |
|
Immediately | $ 96.97 | ||||
| 5 | WPW10184813 | Motor, Ice Door (Replaces: 2305262) |
|
Immediately | $ 103.17 | ||||
| 6 | WP2305258 | Door, Ice (Replaces: 2305258) |
|
$ 24.85 | |||||
| 7 | WP2305204 | Support, Ice Door (Replaces: 2305204) |
|
$ 88.22 | |||||
| 8 | WP4449745 | Screw (2) (Replaces: 4449745) |
|
$ 7.49 | |||||
| 9 | 2305413B | Grille, Slide (black) |
|
- | |||||
| 9 | 2305413W | Grille, Slide (white) |
|
- | |||||
| 9 | 2305413AP | Grille, Slide (apollo Gray) |
|
- | |||||
| 11 | 2305460W | Separator Assembly (white) |
|
- | |||||
| 11 | 2305460NA | Separator Assembly (nickel Alloy) |
|
- | |||||
| 11 | 2305460B | Separator Assembly (black) |
|
- | |||||
| 12 | WP2303843 | Electronic Control (core) (Replaces: 2303843) |
|
$ 347.99 | |||||
| 13 | WP2305235 | Spigot (Replaces: 2305235) |
|
$ 140.07 | |||||
| 14 | 2305247CG | Pad, Ice & Water (for White Model) |
|
- | |||||
| 14 | 2305247GM | Pad, Ice & Water (for Black Model) |
|
- | |||||
| 14 | 2305247MG | Pad, Ice & Water (for All Stainless Models) |
|
- | |||||
| 19 | 2305408W | Tray, Housing (white) |
|
- | |||||
| 19 | 2305408NO | Tray, Housing (nickel One) |
|
- | |||||
| 19 | 2305408B | Tray, Housing (black) |
|
- | |||||
| 20 | 2317715B | Front Cover Assembly (includes Items 14, 15, 16, 17 & 18) (black) |
|
- | |||||
| 20 | 2317715W | Front Cover Assembly (includes Items 14, 15, 16, 17 & 18) (white) |
|
- | |||||
| 20 | W10173643 | Front Cover Assembly (includes Items 14, 15, 16, 17 & 18) (nickel One) |
|
- | |||||
| 21 | W10178851 | Wire Assembly, User Interface (includes 10) |
|
- | |||||
| 22 | 2305447 | Clip, Wiring |
|
- |
