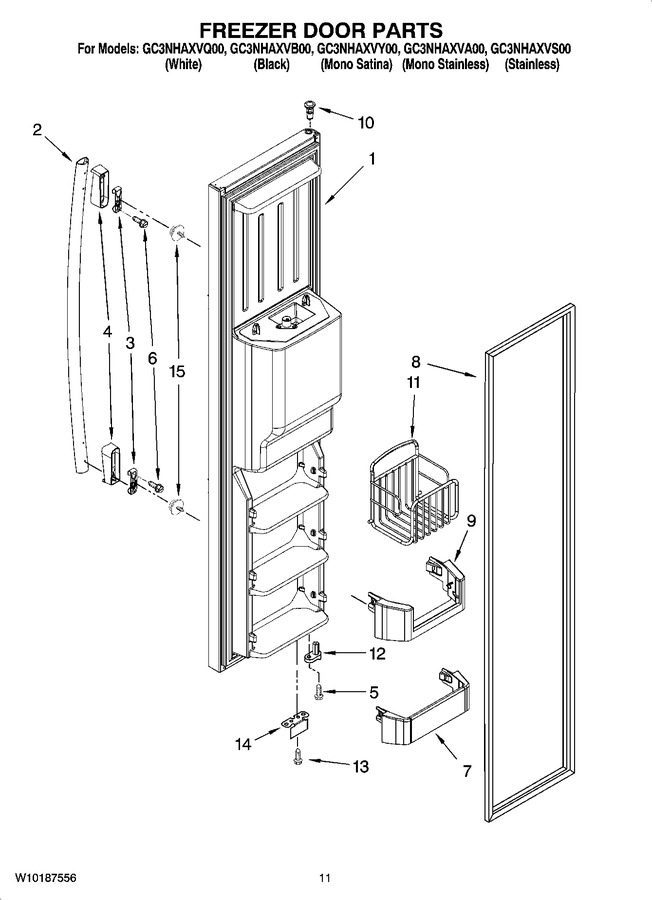

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10168275		Freezer Door (includes 8) (monochromatic Stainless)		Appelez-nous	-
1	W10172108		Freezer Door (includes 8) (stainless Steel)		Appelez-nous	-
1	W10168272		Freezer Door (includes 8) (white)		Appelez-nous	-
1	W10168273		Freezer Door (includes 8) (black)		Appelez-nous	-
1	W10168274		Freezer Door (includes 8) (mono Satina)		Appelez-nous	-
2	W10210942A		Handle (white)   (Replaces: W10127808)				$ 123.36
2	W10273556		Handle (nickel Alloy)   (Replaces: W10127811)				$ 280.81
2	W10210942A		Handle (black)   (Replaces: W10127809)				$ 123.36
3	WP2255411		Clip, Mounting   (Replaces: 2255411)				$ 34.81
4	W10127813		Endcap, Handle (white)				$ 78.50
4	W10127814		Endcap, Handle (black)		Appelez-nous	-
4	W10152864		Endcap, Handle (nickel Alloy)		Appelez-nous	-
5	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
6	WP8533988		Screw   (Replaces: W10155511)			Immediately	$ 7.95
7	WP2171157		Shelf Bin   (Replaces: 2171157K)				$ 60.67
8	2223850		Door Gasket, Magnetic (mist Beige)		Appelez-nous	-
8	2223912		Door Gasket, Magnetic (black)		Appelez-nous	-
8	2326343		Door Gasket, Magnetic (apollo Grey)		Appelez-nous	-
9	2223334		Trivet, Tilt-out (2)				$ 25.46
10	2308050		Thimble, Top		Appelez-nous	-
11	2304309		Basket, Tilt-out (2)				$ 77.01
12	WP2223752		Door Closer, Upper Cam   (Replaces: 2223752)				$ 20.15
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	2306940B		Bracket, Door Stop (black)				$ 37.11
14	2306940		Bracket, Door Stop (chrome)				$ 97.08
15	WPW10288153		Screw, Handle   (Replaces: W10129563)			Immediately	$ 8.69
	2317707		Tube, Door		Appelez-nous	-
	2310224		Wire Harness, Freezer Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
