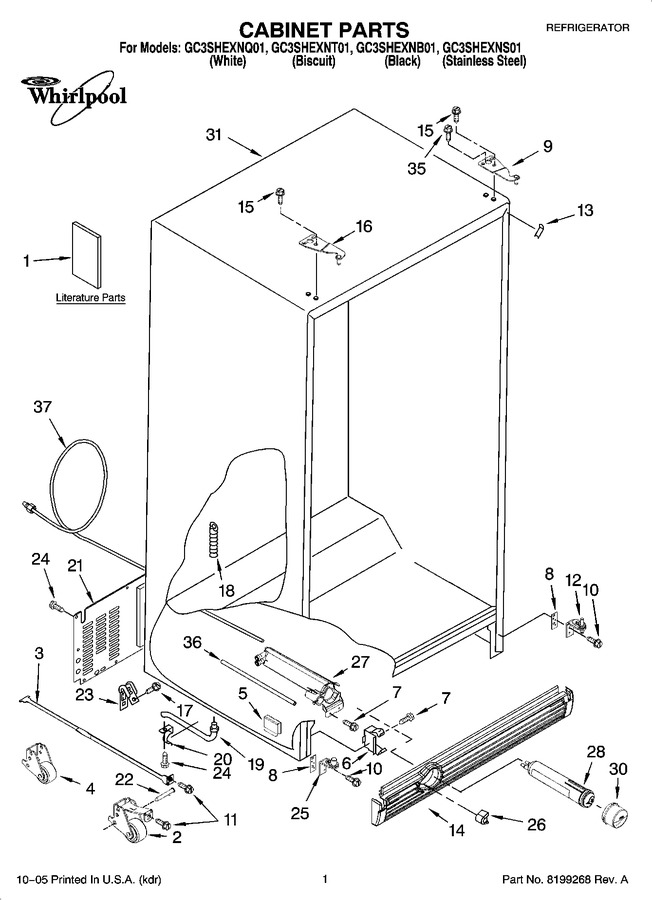

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2223419 | Service & Wiring Sheet |
|
- | |||||
| 1 | 628370 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | 2308412 | Energy Guide |
|
- | |||||
| 1 | 2306981 | Use & Care Guide |
|
- | |||||
| 1 | 2223996 | Installation Instructions |
|
- | |||||
| 2 | 2306950 | Front Roller Asm (left Side) |
|
- | |||||
| 2 | 2306951 | Front Roller Asm (right Side) |
|
- | |||||
| 3 | 2223263 | Strap, Roller |
|
- | |||||
| 4 | 2306949 | Roller, Rear (2) |
|
- | |||||
| 5 | W11545866 | Clip, Retainer (4) (Replaces: 2223388) |
|
$ 11.88 | |||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 8.11 | ||||
| 7 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 8 | 2223545 | Shim |
|
$ 84.03 | |||||
| 9 | 2307008AP | Hinge Top, Rc (white) (Replaces: 2307008W) |
|
$ 167.60 | |||||
| 9 | 2307008T | Hinge Top, Rc (biscuit) |
|
- | |||||
| 9 | 2307008B | Hinge Top, Rc (black) |
|
$ 47.55 | |||||
| 10 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 29.09 | ||||
| 11 | 3400243 | Screw |
|
$ 12.03 | |||||
| 12 | 2223520 | Hinge Assembly, Bottom-rc |
|
- | |||||
| 13 | 2223893T | Filler, Wrapper (biscuit) |
|
- | |||||
| 13 | 2223893W | Filler, Wrapper (white) |
|
- | |||||
| 13 | 2223893B | Filler, Wrapper (black) |
|
- | |||||
| 14 | 2223514B | Grille (black) |
|
- | |||||
| 14 | 2223514W | Grille (white) |
|
- | |||||
| 14 | 2223514T | Grille (biscuit) |
|
- | |||||
| 15 | 3400108 | Screw |
|
$ 12.07 | |||||
| 16 | 2307007B | Hinge, Top Fc (black) |
|
$ 140.08 | |||||
| 16 | 2307007T | Hinge, Top Fc (biscuit) |
|
- | |||||
| 16 | 2307007AP | Hinge, Top Fc (white) (Replaces: 2307007W) |
|
$ 165.93 | |||||
| 17 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 18 | W11566763 | Drain Fitting (Replaces: 940139) |
|
Immediately | $ 53.45 | ||||
| 19 | 2199954 | Tube, Extension |
|
- | |||||
| 20 | WP1108439 | Clip, Drain Tube (Replaces: 1108439) |
|
$ 11.28 | |||||
| 21 | 2223409 | Cover, Unit |
|
$ 77.44 | |||||
| 22 | 2223387 | Pin, Roller (4) |
|
- | |||||
| 23 | 549193 | Clamp-service Cord |
|
$ 14.06 | |||||
| 24 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 8.05 | |||||
| 25 | 2223460 | Hinge Assembly, Bottom-fc |
|
- | |||||
| 26 | WP2260503B | Button, Water Filter (black) (Replaces: 2260503B) |
|
$ 76.42 | |||||
| 26 | WP2260503B | Button, Water Filter (biscuit) (Replaces: 2260503T) |
|
$ 76.42 | |||||
| 26 | 2260503W | Button, Water Filter (white) |
|
Immediately | $ 35.87 | ||||
| 27 | WPW10121140 | Housing, Water Filter (Replaces: 2260526) |
|
Immediately | $ 171.96 | ||||
| 28 | EDR3RXD1B | Water Filter (Replaces: 4396710) |
|
Immediately | $ 49.99 | ||||
| 30 | WP2260518B | Cap, Water Filter (black) (Replaces: 2260518B) |
|
Immediately | $ 28.26 | ||||
| 30 | 2260518T | Cap, Water Filter (biscuit) |
|
- | |||||
| 30 | WP2260518W | Cap, Water Filter (white) (Replaces: 2260518W) |
|
Immediately | $ 34.67 | ||||
| 31 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 35 | 3400858 | Screw |
|
- | |||||
| 36 | WPW10350006 | Tube, Filter Outlet (Replaces: 2224020) |
|
$ 121.32 | |||||
| 37 | 8201597 | Tube, Filter Inlet (Replaces: 2305536) |
|
Immediately | $ 83.70 |
