SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts

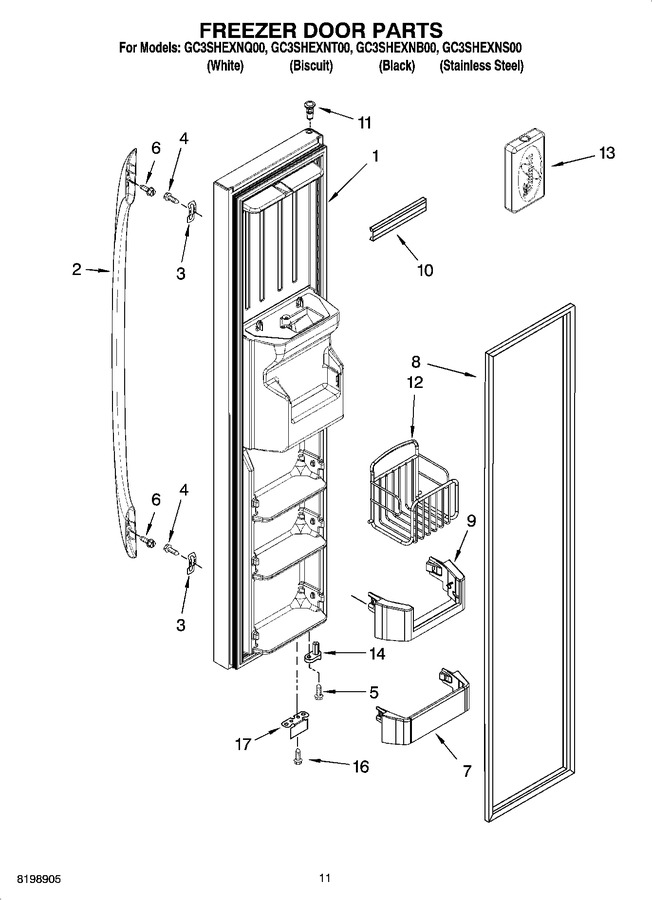

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2223842T		Freezer Door (includes 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2223842B		Freezer Door (includes 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2224191SB		Freezer Door (includes 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	2223842W		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2305993W		Handle (white)		Appelez-nous	-
2	2305993T		Handle (biscuit)		Appelez-nous	-
2	2305993B		Handle (black)				$ 100.25
3	WP2255411		Clip, Mounting   (Replaces: 2255411)				$ 34.81
4	WP489491		Screw   (Replaces: 489491)				$ 6.95
5	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
6	8533920		Screw				$ 5.27
7	WP2171157		Shelf Bin   (Replaces: 2171157K)				$ 60.67
8	2223912		Door Gasket, Magnetic (black)		Appelez-nous	-
8	2223850		Door Gasket, Magnetic (mist Beige)		Appelez-nous	-
9	2223334		Trivet, Tilt-out (2)				$ 25.46
10	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 23.11
11	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
12	2304309		Basket, Tilt-out (2)				$ 77.01
13	2255459K		Bottle, Ice Pack		Appelez-nous	-
14	WP2223752		Door Closer, Upper Cam   (Replaces: 2223752)				$ 20.15
16	WP489483		Screw   (Replaces: 489420)				$ 10.87
17	2306940B		Bracket, Door Stop (black)				$ 37.11
17	2306940		Bracket, Door Stop (chrome)				$ 97.08
