SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Crisper Assembly


05 - Evap Fan Assy./crisp Light/waterfilter


06 - Evaporator Assy./rollers/water Tank


07 - Fountain


08 - Freezer Compartment


09 - Freezer Door


10 - Freezer Shelves


11 - Handles


12 - Hinges


13 - Ice Bucket Assy.


14 - Ice Maker


15 - Refrigerator Door


16 - Refrigerator Shelves


17 - Supplemental Information


18 - Wiring Information

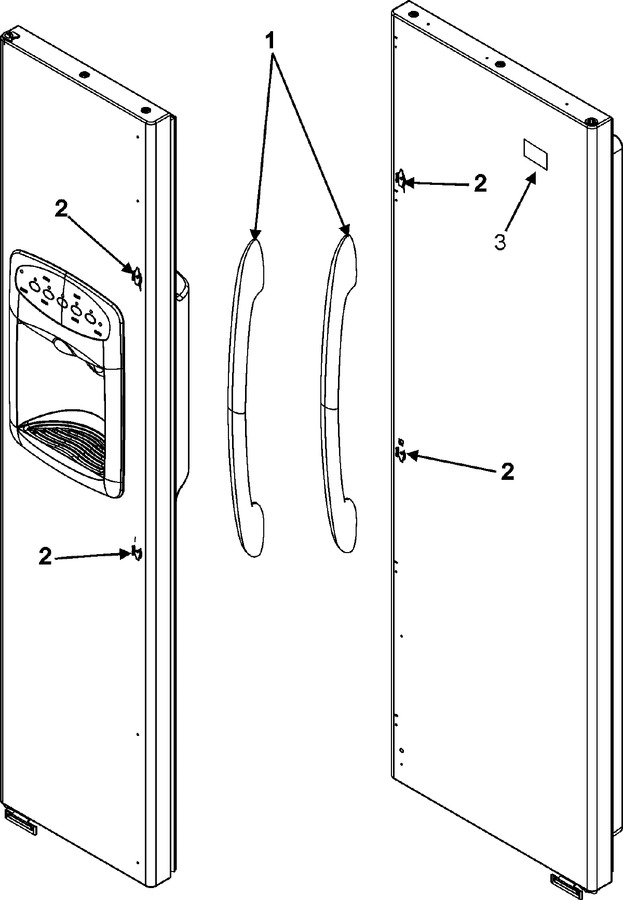

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP67005380		Handle Assy., Door (blk)   (Replaces: 67004278)	50			$ 186.64
1	67007028		Card, Handle Release Ss & Ws   (Replaces: 67004112)	50			$ 10.57
2	WP7101P126-60		Screw, Sm No.10   (Replaces: 67003800)	50		Immediately	$ 7.61
2	WP67006852		Clip, Handle Butterfly   (Replaces: 67003337)	50			$ 25.47
3	61002504		Bezel, Nameplate (blk)	50	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
