SELECT A DIAGRAM

01 - Section


02 - Section

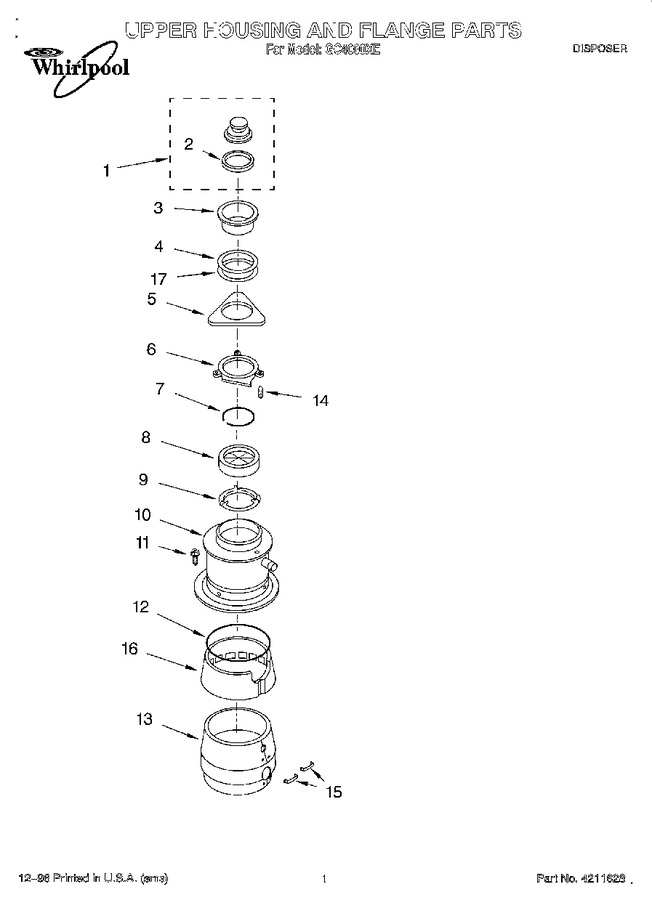

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4211577		Stopper Assembly   (Replaces: 4211621)				$ 53.31
2	4211333		Gasket, Stopper				$ 30.86
3	4211605		Flange, Strainer		Appelez-nous	-
4	4211606		Seal, Sink Flange				$ 22.21
5	4211303		Flange, Backup		Appelez-nous	-
6	4211304		Flange, Mounting				$ 137.21
7	4211306		Ring, Retaining				$ 10.56
8	WP4211334		Gasket, Mounting   (Replaces: 4211334)				$ 35.56
9	4211308		Flange, Body		Appelez-nous	-
10	4211554		Container, Body Assembly		Appelez-nous	-
11	4211335		Screw		Appelez-nous	-
12	4211337		O-ring		Appelez-nous	-
13	4211622		Trim, Shell Assembly		Appelez-nous	-
14	4211305		Screw, Backup				$ 14.11
15	4211339		Clip, Shell Trim		Appelez-nous	-
16	4211444		Insulation, Top		Appelez-nous	-
17	WP4211302		Seal, Sink Flange   (Replaces: 4211302)				$ 8.58

    View Diagram in Separate Window       Print Part List
