SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts

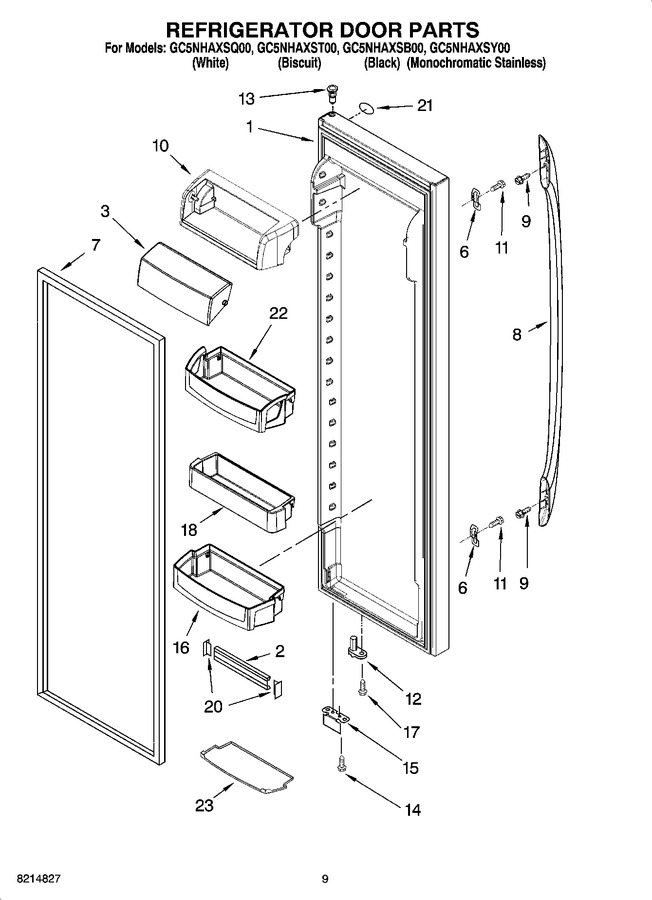

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2317786W		Refrigerator Door (includes 7) (white)		Appelez-nous	-
1	2317786T		Refrigerator Door (includes 7) (biscuit)		Appelez-nous	-
1	2317786B		Refrigerator Door (includes 7) (black)		Appelez-nous	-
1	2224115SA		Refrigerator Door (includes 7) (monochromatic Stainless)		Appelez-nous	-
2	2203087K		Trim, Shelf		Appelez-nous	-
3	2255421		Dairy Door				$ 34.76
6	WP2255411		Clip, Mounting   (Replaces: 2255411)				$ 36.55
7	2306996		Door Gasket, Magnetic (black)   (Replaces: 2223909)				$ 335.10
7	2223326		Door Gasket, Magnetic (mist Beige)		Appelez-nous	-
8	2313351W		Handle (includes 9) (white)		Appelez-nous	-
8	2313351US		Handle (includes 9) (universal Silver)		Appelez-nous	-
8	2313351B		Handle (includes 9) (black)				$ 121.83
8	2313351T		Handle (includes 9) (biscuit)		Appelez-nous	-
9	8533920		Screw				$ 5.27
10	2223879		Dairy Compartment				$ 40.49
11	WP489491		Screw   (Replaces: 489491)				$ 7.30
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
13	2308050		Thimble, Top		Appelez-nous	-
14	WP489483		Screw   (Replaces: 489420)				$ 11.41
15	2306940		Bracket, Door Stop (chrome)				$ 101.93
15	2306940B		Bracket, Door Stop (black)				$ 38.97
16	2223239K		Door Bin (2)		Appelez-nous	-
17	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
18	WP2224173		Door Bin, Shallow   (Replaces: 2224173)				$ 91.69
20	WP2156006		Plug, Trim   (Replaces: 2156006K)			Immediately	$ 12.79
21	2220214		Nameplate				$ 32.43
22	2223463K		Door Bin				$ 42.36
23	2223464K		Mat (3)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
