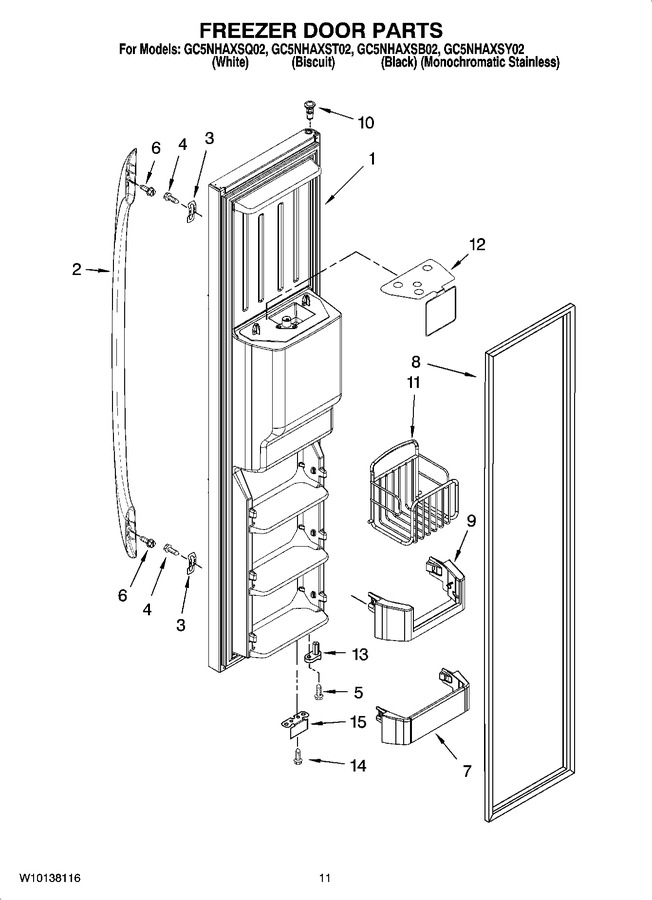

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2305481SAP		Freezer Door (includes 8 And Dispenser Front Parts) (monochromatic Stainless)		Appelez-nous	-
1	2305481W		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2305481T		Freezer Door (includes 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2305481B		Freezer Door (includes 8 And Dispenser Front Parts) (black)		Appelez-nous	-
2	2313351W		Handle (includes 6) (white)		Appelez-nous	-
2	2313351B		Handle (includes 6) (black)				$ 121.83
2	2313351T		Handle (includes 6) (biscuit)		Appelez-nous	-
2	2313351US		Handle (includes 6) (universal Silver)		Appelez-nous	-
3	WP2255411		Clip, Mounting   (Replaces: 2255411)				$ 34.81
4	WP489491		Screw   (Replaces: 489491)				$ 6.95
5	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
6	8533920		Screw				$ 5.27
7	WP2171157		Shelf Bin   (Replaces: 2171157K)				$ 60.67
8	2306995		Door Gasket, Magnetic (black)   (Replaces: 2223910)				$ 315.49
8	2326340		Door Gasket, Magnetic (apollo Grey)		Appelez-nous	-
8	2223325		Door Gasket, Magnetic (mist Beige)		Appelez-nous	-
9	2223334		Trivet, Tilt-out (2)				$ 25.46
10	2308050		Thimble, Top		Appelez-nous	-
11	2304309		Basket, Tilt-out (2)				$ 77.01
12	2304895		Safety Barrier		Appelez-nous	-
13	2307050		Door Closer, Upper Cam				$ 39.47
14	WP489483		Screw   (Replaces: 489420)				$ 10.87
15	2306940		Bracket, Door Stop (chrome)				$ 97.08
15	2306940B		Bracket, Door Stop (black)				$ 37.11
	2310226		Wire Assembly, Freezer Door		Appelez-nous	-
	2317708		Tube, Door				$ 35.58
