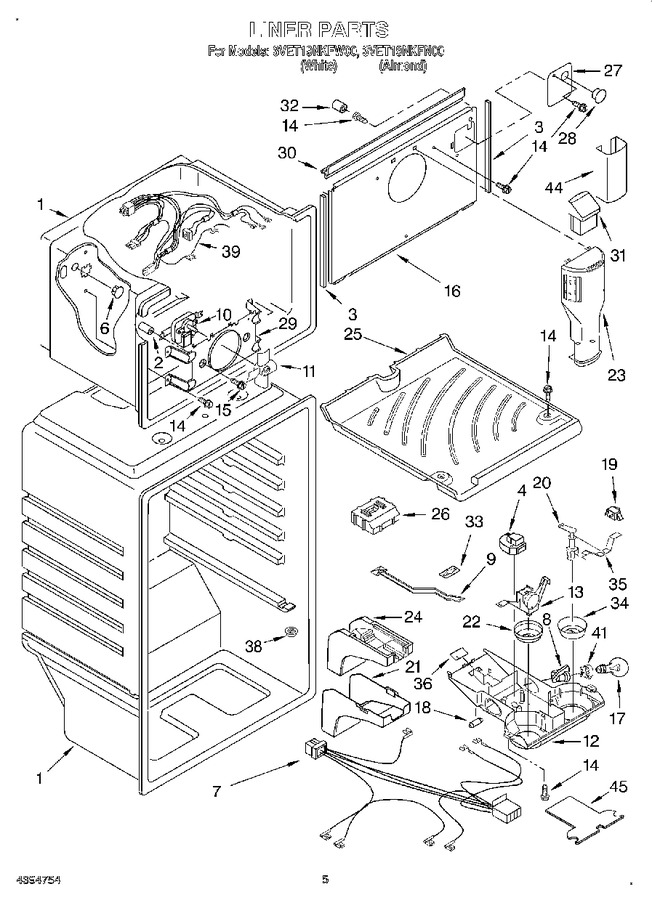

SELECT A DIAGRAM

01 - Cabinet


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	531933		Grommet (2)				$ 5.70
3	WP2254360		Gasket, Evaporator Cover (side)   (Replaces: 2189268)				$ 26.78
4	WP2166867		Timer, Defrost   (Replaces: 2166867)				$ 178.79
6	WP941839		Hole, Plug   (Replaces: 941839)				$ 7.65
7	2193492		Wire Assy. Control Box		Appelez-nous	-
8	4387478		Socket, Light (2)   (Replaces: 2162085)			Immediately	$ 110.16
9	2179858		Damper, Air		Appelez-nous	-
10	2183828		Fan Motor		Appelez-nous	-
11	WP2163777		Blade, Fan   (Replaces: 2163777)			Immediately	$ 66.15
12	2179790		Control Box		Appelez-nous	-
13	4387562		Thermostat Assy. (includes Items 5, 18 & 36)   (Replaces: 2193307)			Immediately	$ 317.27
14	WP489478		Screw   (Replaces: 489478)				$ 7.75
15	489412		Screw		Appelez-nous	-
16	2183154		Cover, Evaporator		Appelez-nous	-
17	WP67002552		Light Bulb (2)   (Replaces: 851682)			Immediately	$ 11.75
18	2163802		Weight, Thermal		Appelez-nous	-
19	W11384469		Rocker Arm Switch   (Replaces: 1118894)			Immediately	$ 37.23
20	2179859		Post, Damper		Appelez-nous	-
21	2176281		Cover, Air Diffuser				$ 41.64
22	2193455		Knob, Thermostat		Appelez-nous	-
23	2182340		Air Tower				$ 43.02
24	WP2189452		Air Diffuser, Bottom   (Replaces: 2176280)			Immediately	$ 124.79
25	2172565		Freezer Floor		Appelez-nous	-
26	2179877		Air Diffuser, Top		Appelez-nous	-
27	WP2217784		Cover, Hole   (Replaces: 2190688)				$ 44.97
28	940014		Hole Plug				$ 18.33
29	2163827		Bracket, Fan Motor		Appelez-nous	-
30	WP2254360		Gasket, Evaporator Cover (top)   (Replaces: 2189267)				$ 26.78
31	2174629		Air Return & Foil Assembly		Appelez-nous	-
32	WP487996		Cap   (Replaces: 487996)				$ 8.26
33	2176341		Clip, Defrost Timer		Appelez-nous	-
34	2176297		Knob, Damper		Appelez-nous	-
35	2163810		Bracket, Damper Knob				$ 6.01
36	WP2205079		Seal, Rear Thermostat   (Replaces: 2172532)				$ 9.53
38	WP2210509		Release Valve   (Replaces: 2171931)				$ 94.43
39	2195657		Wire Assembly, F.c.		Appelez-nous	-
41	WP2175210		Shroud   (Replaces: 2169193)				$ 82.61
44	2179712		Sleeve		Appelez-nous	-
45	2190519		Shield		Appelez-nous	-
