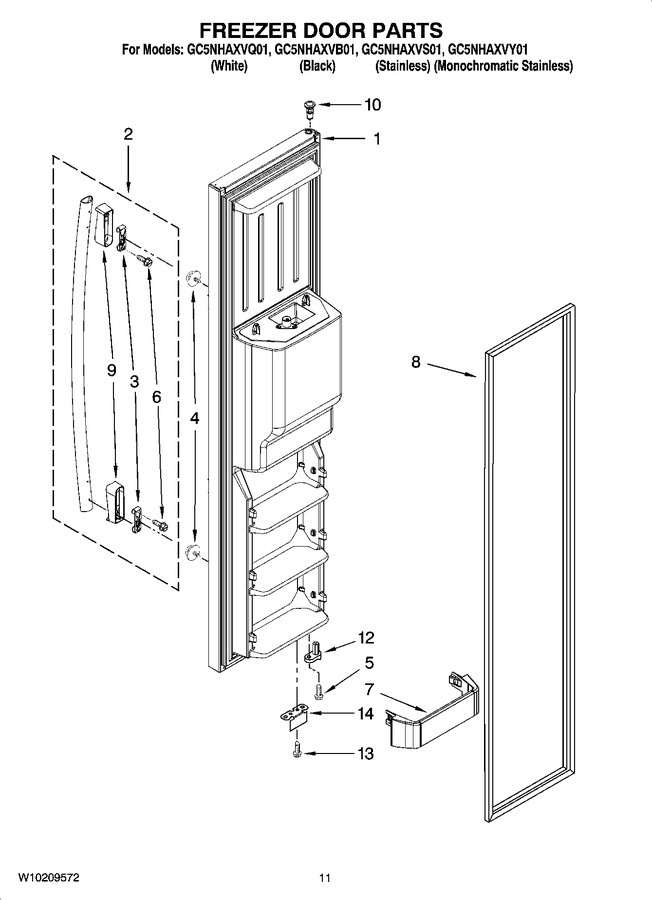

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10149873 | Freezer Door (includes 8 And Dispenser Front Parts) (monochromatic Stainless) |
|
- | |||||
| 1 | W10149871 | Freezer Door (includes 8 And Dispenser Front Parts) (white) |
|
- | |||||
| 1 | W10149872 | Freezer Door (includes 8 And Dispenser Front Parts) (black) |
|
- | |||||
| 1 | W10149874 | Freezer Door (includes 8 And Dispenser Front Parts) (stainless) |
|
- | |||||
| 2 | W10210942A | Handle, Assy (black) (Replaces: W10127804) |
|
$ 123.36 | |||||
| 2 | W10273556 | Handle, Assy (stainless) (Replaces: W10152865) |
|
$ 280.81 | |||||
| 2 | W10210942A | Handle, Assy (white) (Replaces: W10127803) |
|
$ 123.36 | |||||
| 3 | WP2255411 | Clip, Mounting (Replaces: 2255411) |
|
$ 34.81 | |||||
| 4 | WPW10288153 | Screw, Mounting (Replaces: W10129563) |
|
Immediately | $ 8.69 | ||||
| 5 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 | |||||
| 6 | WP8533988 | Screw (Replaces: W10155511) |
|
Immediately | $ 7.95 | ||||
| 7 | WP2171157 | Shelf Bin (Replaces: 2171157K) |
|
$ 60.67 | |||||
| 8 | 2223325 | Door Gasket, Magnetic (mist Beige) |
|
- | |||||
| 8 | 2326340 | Door Gasket, Magnetic (apollo Grey) |
|
- | |||||
| 8 | 2306995 | Door Gasket, Magnetic (black) (Replaces: 2223910) |
|
$ 315.49 | |||||
| 9 | W10127814 | Handle, Endcap (black) |
|
- | |||||
| 9 | W10127813 | Handle, Endcap (white) |
|
$ 78.50 | |||||
| 9 | W10152864 | Handle, Endcap (stainless) |
|
- | |||||
| 10 | WP2182181 | Thimble, Top (Replaces: 2308091) |
|
$ 7.76 | |||||
| 12 | 2307050 | Door Closer, Upper Cam |
|
$ 39.47 | |||||
| 13 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 14 | 2306940B | Bracket, Door Stop (black) |
|
$ 37.11 | |||||
| 14 | 2306940 | Bracket, Door Stop (chrome) |
|
$ 97.08 | |||||
| 2310226 | Wire Assembly, Freezer Door |
|
- | ||||||
| 2317708 | Tube, Door |
|
$ 35.58 |
