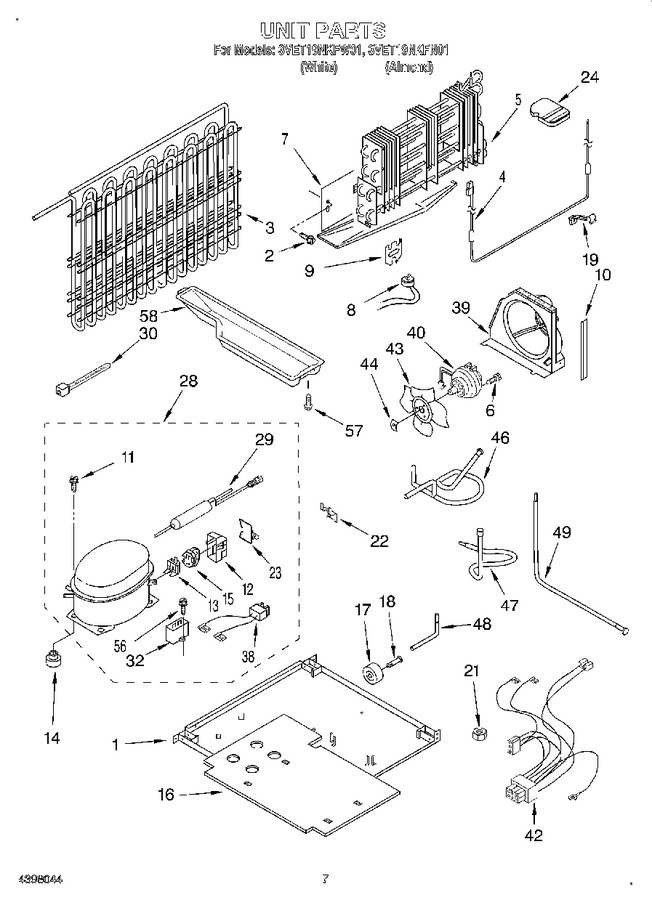

SELECT A DIAGRAM

01 - Cabinet


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2188168		Plate, Unit Mounting		Appelez-nous	-
2	WP489478		Screw   (Replaces: 489478)				$ 8.18
3	2195400		Condenser		Appelez-nous	-
4	2166657		Heater, Defrost		Appelez-nous	-
5	2195391		Evaporator Assy.		Appelez-nous	-
6	WP8281196		Screw   (Replaces: 489499)			Immediately	$ 7.55
7	2172619		Drain Pan		Appelez-nous	-
8	WP2182381		Defrost Bimetal   (Replaces: 2182381)				$ 126.15
9	2176301		Bracket, Heater				$ 6.37
10	2163780		Extension, Air Baffle		Appelez-nous	-
11	W11661574		Screw   (Replaces: 489473)				$ 14.29
12	WP2162358		Cover   (Replaces: 2162358)				$ 95.29
13	2169411		Overload (includes Relay) (service)   (Replaces: 4387961)		Appelez-nous	-
13	2169411		Overload (includes Relay) (production)		Appelez-nous	-
14	W11661108		Grommet (4) (production)   (Replaces: 2183042)				$ 15.21
14	876811		Grommet, (service Compressor) (4)   (Replaces: 1100826)				$ 7.79
15	N/A		Relay (see Overload)		Appelez-nous	-
16	2198740		Cover, Unit				$ 36.19
17	4388239		Roller (2)   (Replaces: 836054)			Immediately	$ 75.99
18	W11594405		Rivet   (Replaces: 981126)			Immediately	$ 19.12
19	2182338		Clip, Heater				$ 6.62
21	N/A		Nut (not Serviced)		Appelez-nous	-
22	2166683		Clip		Appelez-nous	-
23	489435		Clip, Wire		Appelez-nous	-
24	2176302		Support Block		Appelez-nous	-
28	482801		Installation Kit				$ 119.50
28	876765		Tube Kit			Immediately	$ 90.65
28	4387782		Compressor (includes Items 12, 13, 15, 23, 29,32,38 & 56) (also Order)   (Replaces: 2169448)		Appelez-nous	-
29	W10843121		Drier   (Replaces: 2174865)			Immediately	$ 57.13
30	WPW10339879		Clamp   (Replaces: 2155774)				$ 8.30
32	WP2201147		Capacitor (service)   (Replaces: 4387874)				$ 135.42
32	WP2201147		Capacitor (production)   (Replaces: 2154718)				$ 135.42
38	WP2172890		Wire Assembly   (Replaces: 2172890)				$ 8.51
39	2198921		Air Baffle		Appelez-nous	-
40	8201703		Motor, Condenser   (Replaces: 2198746)				$ 371.70
42	2195489		Wire Assy. Unit		Appelez-nous	-
43	2190685		Blade, Fan				$ 52.00
44	WP486692		Nut   (Replaces: 486692)				$ 8.43
46	2179856		Tube, Discharge		Appelez-nous	-
47	2179854		Tube, Suction		Appelez-nous	-
48	2154109		Tube, Process				$ 76.26
49	2174670		Tube, Condenser To Heat Loop		Appelez-nous	-
56	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
57	489462		Screw		Appelez-nous	-
58	482278		Start Kit		Appelez-nous	-
58	978029		Valve Access (5/8``)				$ 93.85
58	978030		Valve, Access (3/4``)				$ 137.25
58	876764		Valve, Access(3/16``)			Immediately	$ 95.92
58	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
58	2163795		Evap. Tray		Appelez-nous	-
58	978026		Valve, Access (5/16``)			Immediately	$ 134.49
58	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
58	978028		Valve, Access (1/2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
