SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts

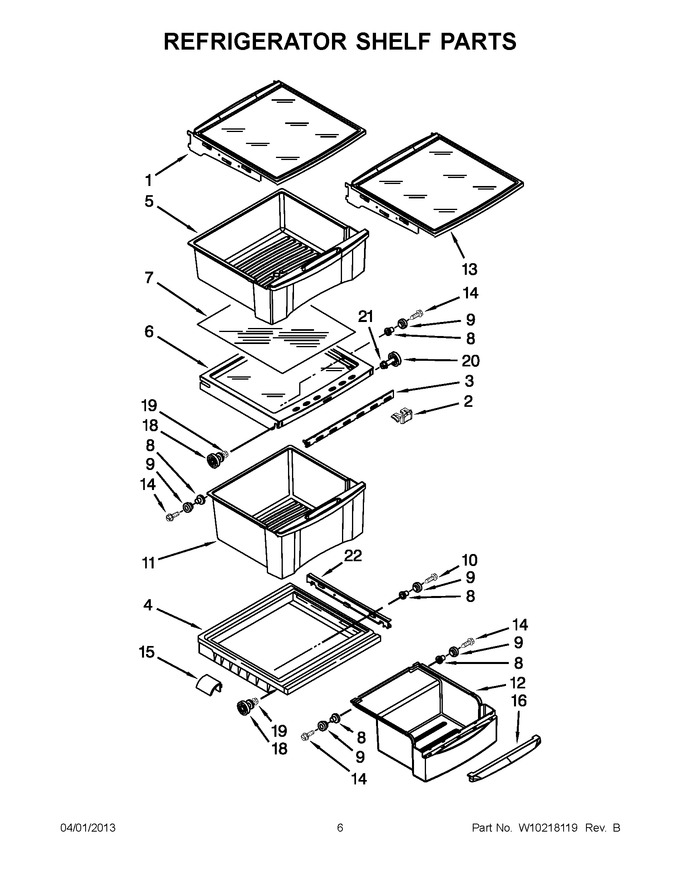

03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Parts


09 - Air Flow Parts


10 - Unit Parts


11 - Icemaker Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2223288		Assembly, Pan Shelf   (Replaces: 2223288)				$ 397.99
2	2223309		Knob, Humidity Control				$ 34.60
3	2223308		Slide, Humidity Control				$ 77.01
4	WPW10270150		Assembly, Meat Cover   (Replaces: 2203027)				$ 342.45
5	2223261		Assembly, Snack Pan		Appelez-nous	-
6	2223592		Cover, Crisper Pan		Appelez-nous	-
7	2223591		Glass, Cover				$ 88.38
8	2174478		Eyelet, Roller				$ 5.70
9	2188212		Roller		Appelez-nous	-
10	WPW10272364		Screw (stainless)   (Replaces: 489211)			Immediately	$ 10.82
11	WPW10233488		Assembly, Crisper Pan   (Replaces: 2223235)				$ 192.04
12	2223526		Assembly, Meat Pan		Appelez-nous	-
13	W10235943		Shelf And Frame Assembly   (Replaces: 2224059)				$ 336.71
14	WP489261		Screw (stainless)   (Replaces: 489261)				$ 7.61
15	2223487		Deflector				$ 83.68
16	2203029		Handle, Meat Pan				$ 85.47
18	W11223328		Shelf   (Replaces: 2196485)			Immediately	$ 14.07
19	WP3-24004-109		Screw   (Replaces: 3400894)				$ 8.05
20	WP2196483		Assembly, Shelf Stud   (Replaces: 2196483)				$ 10.35
21	WP3400806		Screw   (Replaces: 8281158)				$ 7.71
22	WP2223320		Slide, Pan   (Replaces: 2223320)			Immediately	$ 25.05

    View Diagram in Separate Window       Print Part List
