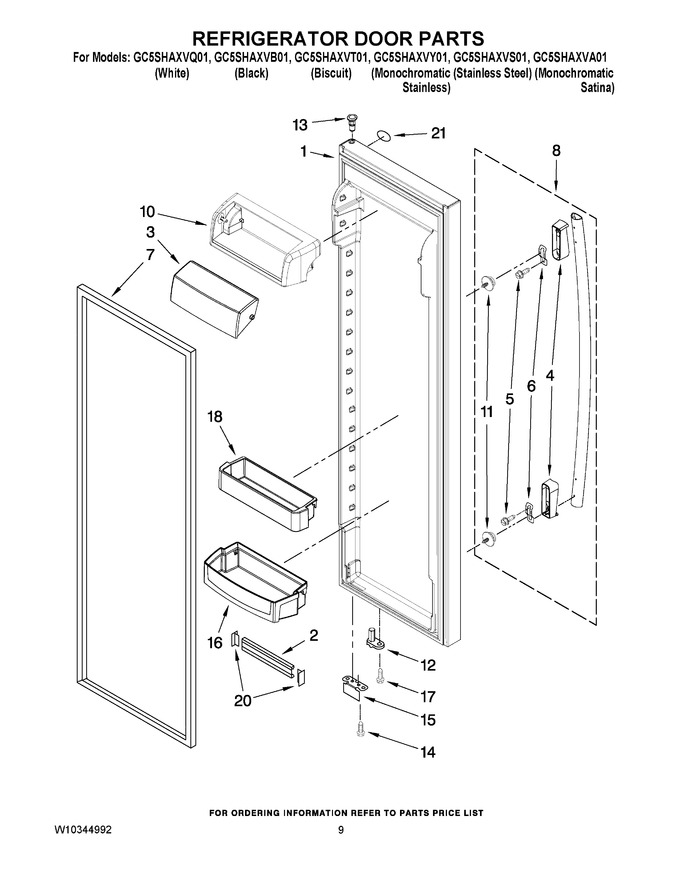

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10168424		Refrigerator Door (includes No.7) (white)		Appelez-nous	-
1	W10188146		Refrigerator Door (includes No.7) (biscuit)		Appelez-nous	-
1	W10168425		Refrigerator Door (includes No.7) (black)		Appelez-nous	-
1	W10188147		Refrigerator Door (includes No.7) (mono Satina)		Appelez-nous	-
1	W10257864		Refrigerator Door (includes No.7) (stainless Steel)		Appelez-nous	-
1	W10257862		Refrigerator Door (includes No.7) (mono Stainless)		Appelez-nous	-
2	2203087		Trim, Shelf				$ 42.91
3	2255421		Dairy Door				$ 34.76
4	W10127813		Handle, Endcap (white)				$ 78.50
4	W10127815		Handle, Endcap (biscuit)		Appelez-nous	-
4	W10127814		Handle, Endcap (black)		Appelez-nous	-
4	W10152864		Handle, Endcap (nickel Alloy)		Appelez-nous	-
5	W10267047		Screw, Handle   (Replaces: W10201588)				$ 12.83
6	WP2255411		Clip, Mounting   (Replaces: 2255411)				$ 34.81
7	2223326		Door Gasket, Magnetic (mist Beige)		Appelez-nous	-
7	2306996		Door Gasket, Magnetic (black)   (Replaces: 2223909)				$ 319.14
8	WPW10257120		Handle, Assy (nickel Alloy)   (Replaces: W10257120)				$ 56.86
8	W10210942A		Handle, Assy (white)   (Replaces: W10210942)				$ 123.36
8	W10210944A		Handle, Assy (biscuit)   (Replaces: W10210944)		Appelez-nous	-
8	W10210942A		Handle, Assy (black)   (Replaces: W10210943)				$ 123.36
10	2223879		Dairy Compartment				$ 40.49
11	WPW10288153		Screw, Mounting   (Replaces: W10129563)			Immediately	$ 8.69
12	2307048		Door Closer, Upper Cam		Appelez-nous	-
13	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
14	WP489483		Screw   (Replaces: 489420)				$ 10.87
15	2306940B		Bracket, Door Stop (black)				$ 37.11
15	2306940		Bracket, Door Stop (chrome)				$ 97.08
16	W10254149		Door Bin (3)		Appelez-nous	-
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
18	WP2224173		Door Bin, Shallow   (Replaces: 2224173)				$ 87.32
20	WP2156006		Plug, Trim   (Replaces: 2156006)			Immediately	$ 12.18
21	2220214		Nameplate				$ 32.43

    View Diagram in Separate Window       Print Part List
