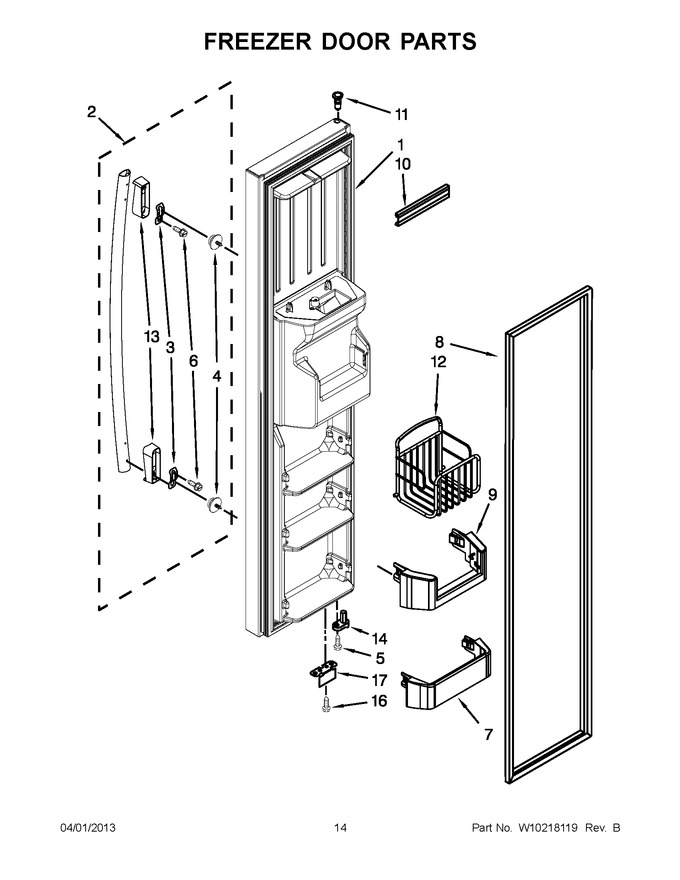

07 - Freezer Door Parts


08 - Dispenser Parts


09 - Air Flow Parts


10 - Unit Parts


11 - Icemaker Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10188154		Door, Freezer (mono Satina)		Appelez-nous	-
1	W10188152		Door, Freezer (biscuit)		Appelez-nous	-
1	W10188151		Door, Freezer (black)		Appelez-nous	-
1	W10188155		Door, Freezer (mono Stainless)		Appelez-nous	-
1	W10188153		Door, Freezer (stainless/black)		Appelez-nous	-
1	W10188150		Door, Freezer (white)		Appelez-nous	-
2	W10210942A		Handle, Door (black)   (Replaces: W10127804)				$ 123.36
2	W10273556		Handle, Door (stainless)   (Replaces: W10152865)				$ 280.81
2	W10210942A		Handle, Door (white)   (Replaces: W10127803)				$ 123.36
2	W10210944A		Handle, Door (biscuit)   (Replaces: W10127805)		Appelez-nous	-
3	WP2255411		Clip, Handle Mount   (Replaces: 2255411)				$ 34.81
4	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 8.69
5	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
6	W10267047		Screw   (Replaces: W10201588)				$ 12.83
7	WP2171157		Trivet   (Replaces: 2171157K)				$ 60.67
8	2223325		Gasket, Door (mist Beige)		Appelez-nous	-
8	2306995		Gasket, Door (black)   (Replaces: 2223910)				$ 315.49
9	2223334		Trivet				$ 25.46
10	WPW10307490		Trim, Shelf   (Replaces: 2219982)			Immediately	$ 23.11
11	WP2182181		Thimble-top   (Replaces: 2308091)				$ 7.76
12	W10142358		Bin, Tilt-out		Appelez-nous	-
13	W10127814		Handle, Endcap (black)		Appelez-nous	-
13	W10152864		Handle, Endcap (nickel)		Appelez-nous	-
13	W10127815		Handle, Endcap (biscuit)		Appelez-nous	-
13	W10127813		Handle, Endcap (white)				$ 78.50
14	2307050		Closer, Door				$ 39.47
16	WP489483		Screw   (Replaces: 489420)				$ 10.87
17	2306940B		Bracket, Door Stop (black)				$ 37.11
17	W10215319		Bracket, Door Stop (silver)		Appelez-nous	-
