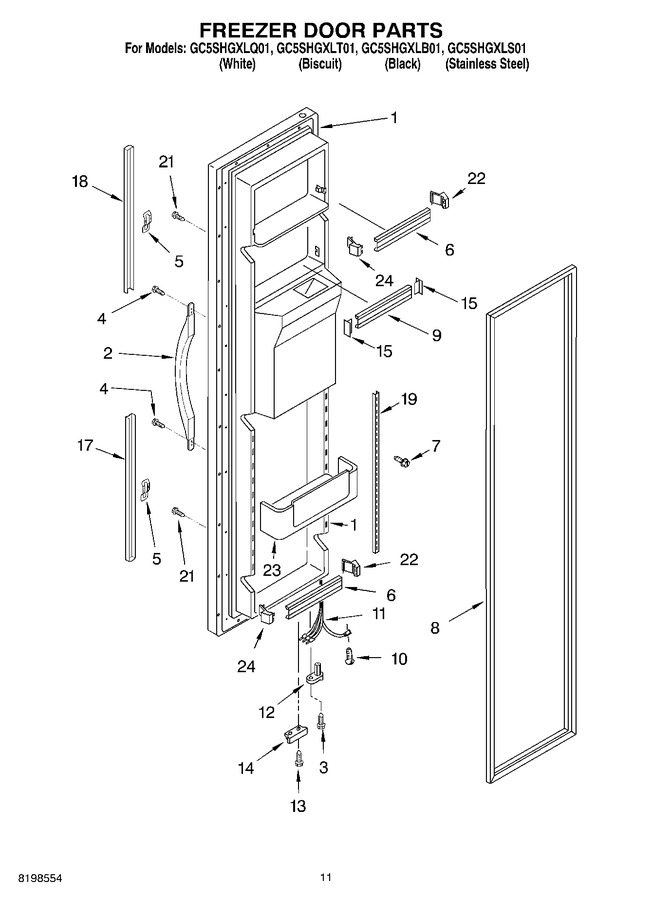

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2220463T		Freezer Door (includes Item 8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2220463B		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2220463S		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	2220463W		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2186649B		Handle, Center (black)				$ 72.96
2	2186649T		Handle, Center (biscuit)		Appelez-nous	-
2	2186649W		Handle, Center (white)				$ 70.49
3	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
4	WP489491		Screw   (Replaces: 489491)				$ 7.30
5	WP2195327		Clip (4)   (Replaces: 2195327)				$ 7.77
6	2199990		Trim, Door Shelf		Appelez-nous	-
7	WPW10141645		Screw   (Replaces: 8281210)				$ 8.05
8	2221304		Door Gasket, Magnetic (mist Beige)		Appelez-nous	-
8	2221309		Door Gasket, Magnetic (black)		Appelez-nous	-
9	2199991		Trim, Door Shelf		Appelez-nous	-
10	WP489128		Screw   (Replaces: 488500)				$ 11.40
11	2187667		Wiring Harness, Freezer Door		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	2214451		Bracket, Door Stop (black)		Appelez-nous	-
14	2210774		Bracket, Door Stop (chrome)		Appelez-nous	-
15	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.79
17	2203086B		Extension, Bottom (black)		Appelez-nous	-
17	2203086T		Extension, Bottom (biscuit)		Appelez-nous	-
17	2203086W		Extension, Bottom (white)		Appelez-nous	-
18	2203085T		Extension, Top (biscuit)		Appelez-nous	-
18	2203085W		Extension, Top (white)		Appelez-nous	-
18	2203085B		Extension, Top (black)		Appelez-nous	-
19	2208147		Ladder, Shelf Assembly (2)		Appelez-nous	-
21	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
22	WP2195916K		Endcap   (Replaces: 2195916)			Immediately	$ 13.18
23	2199992		Bin, Door (2)		Appelez-nous	-
24	2195917		Endcap		Appelez-nous	-
