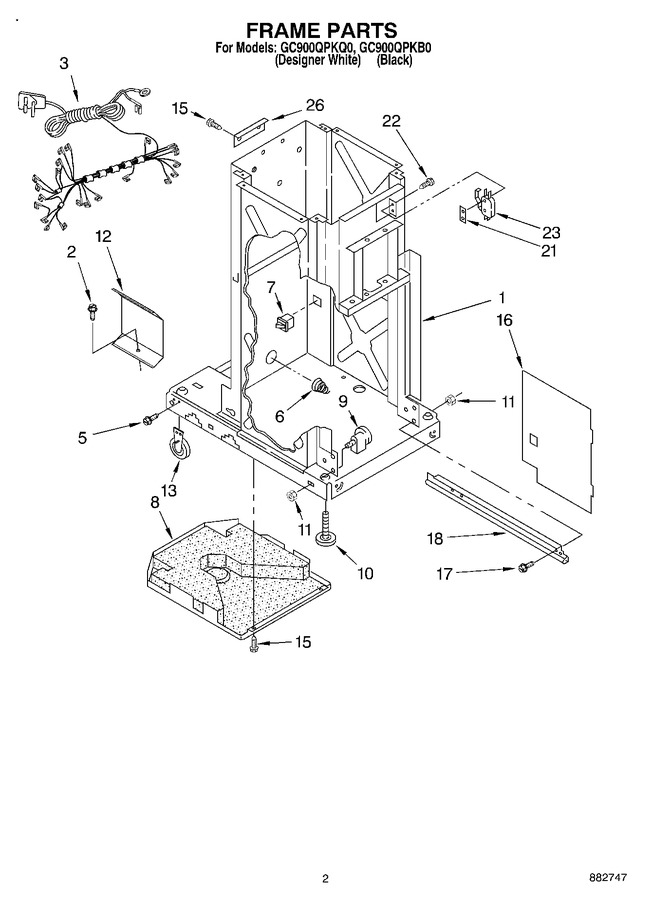

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Frame (not A Serviceable Part)		Appelez-nous	-
2	WP488234		Screw, 8-32 X 5/16   (Replaces: 777070)				$ 7.08
3	9871491		Cord, Power		Appelez-nous	-
5	WP3351614		Screw, 10-24 X 3/8   (Replaces: 780034)			Immediately	$ 7.30
6	WP777180		Spring, Container   (Replaces: 777180)				$ 97.93
7	W11243179		Switch, Drawer Safety   (Replaces: 4149377)				$ 74.74
8	WP780437		Pan, Bottom   (Replaces: 780437)				$ 316.61
9	882688		Bearing, Roller (2)   (Replaces: 4153788)				$ 21.19
10	WPW10001130		Bolt, Leveler   (Replaces: 775526)			Immediately	$ 7.80
11	WP776356		Locknut, 3/8-24   (Replaces: 776356)				$ 8.53
12	9870867		Shield, Slide Track (2)		Appelez-nous	-
13	W11023674		Wheel, Leveler (2)   (Replaces: 9870585)				$ 54.05
15	WP489478		Screw, 8-18 X 1/2   (Replaces: 489478)				$ 8.18
16	WP9870444		Panel, Inner   (Replaces: 9870444)				$ 101.92
17	WP486754		Screw, 6-32 X 3/8   (Replaces: 777458)				$ 8.01
18	WP9870975		Frame, Slide (l.h.)   (Replaces: 9870975)				$ 112.70
18	W11722978		Frame, Slide (r.h.)   (Replaces: 9870976)				$ 141.33
21	777850		Plate, Nut				$ 77.13
22	777849		Screw, 6-20 X 1				$ 7.36
23	WP777811		Switch, Top Limit & Directional   (Replaces: 777811)			Immediately	$ 116.62
26	775668		Angle, Frame Plate		Appelez-nous	-
