SELECT A DIAGRAM

01 - Motor And Drive Parts


02 - Frame Parts


03 - Cabinet And Control Parts

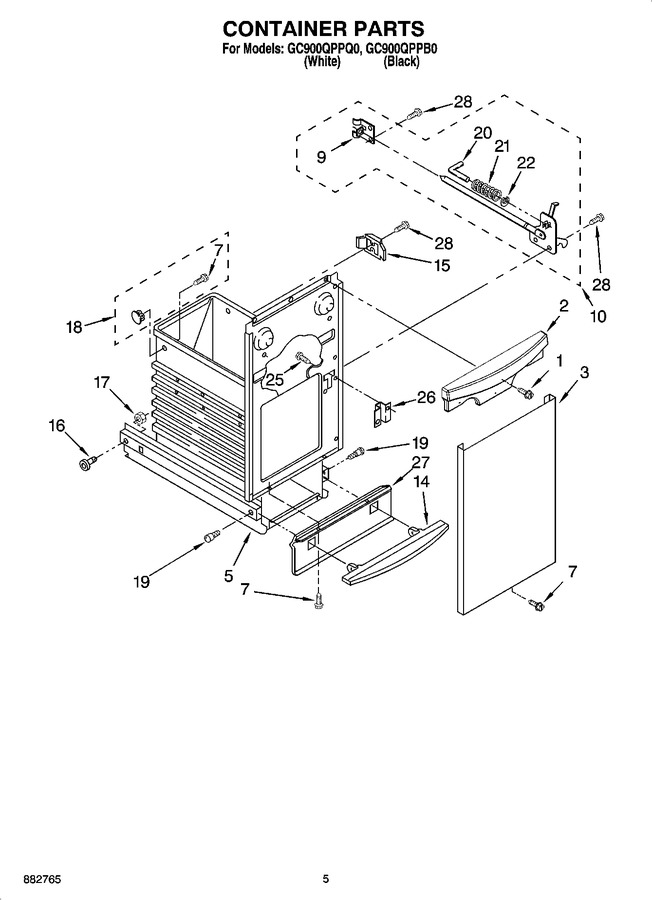

04 - Container Parts


05 - Powerscrew And Ram Parts


06 - Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3400888		Screw, 8-18 X 1/2   (Replaces: 3400888)				$ 7.50
2	WP9872040B		Handle, Container (black)   (Replaces: 9872040B)				$ 286.66
2	9872040W		Handle, Container (white)				$ 279.66
3	W11795370		Panel, Container Front (black)   (Replaces: 9871311)				$ 362.84
3	9871309		Panel, Container Front (white)				$ 46.45
5	884573		Container Assembly				$ 308.55
7	WP3196175		Screw 8-18 X 1/2   (Replaces: 3196175)			Immediately	$ 7.55
9	WP776395		Guide, Rear Latch   (Replaces: 776395)				$ 98.10
10	675379		Latch Assembly   (Replaces: 9870066)				$ 182.53
14	WP9871031		Pedal, Foot (white)   (Replaces: 9871031)				$ 159.54
14	W11679165		Pedal, Foot (black)   (Replaces: 4149672)				$ 62.46
15	9871125		Actuator, Safety Switch				$ 29.37
16	WP9871602		Bearing Roller Container (2)   (Replaces: 9871602)				$ 13.87
17	WP776356		Locknut, 3/8-24 (2)   (Replaces: 776356)				$ 8.53
18	W11705833		Retainer, Bag (contains 4 Each)   (Replaces: 4147703)		Appelez-nous	-
19	WP780263		Screw, Shoulder 8-16 X 7/16 (2)   (Replaces: 780263)				$ 8.34
20	W11705836		Pin   (Replaces: 776654)		Appelez-nous	-
21	775736		Spring				$ 93.80
22	W11679168		``e`` Ring   (Replaces: 775735)		Appelez-nous	-
25	WPW10139210		Screw 8-18 X 5/16   (Replaces: 4152204)				$ 8.03
26	775665		Plate, Latch				$ 62.39
27	WPW10242557		Guard, Toeplate (black)   (Replaces: 777328)				$ 142.53
27	W10917704		Guard, Toeplate (white)   (Replaces: 9871030)		Appelez-nous	-
28	WP489478		Screw, 8-18 X 1/2   (Replaces: 489478)				$ 8.18

    View Diagram in Separate Window       Print Part List
