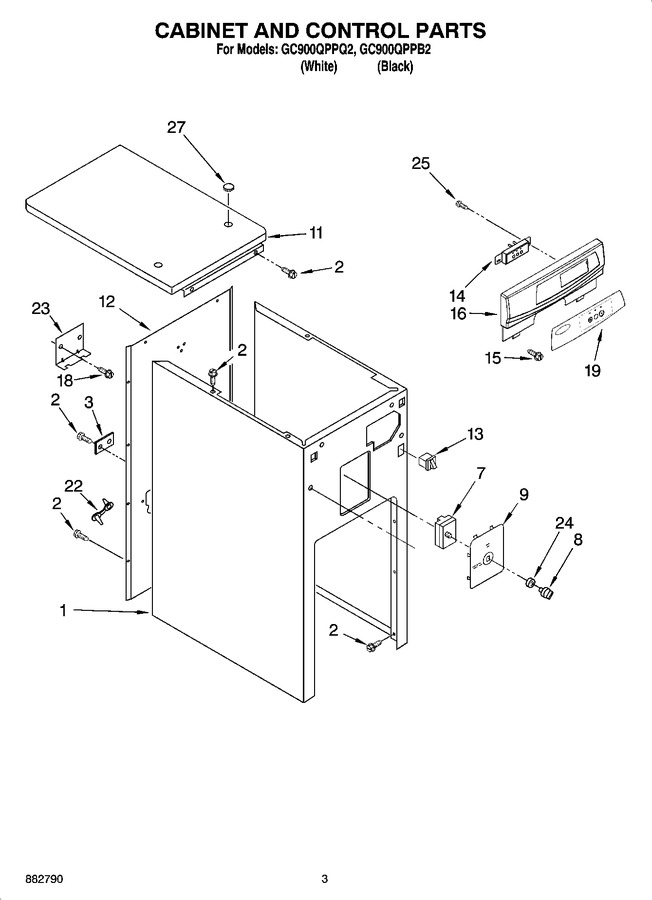

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9870921		Cabinet (black)		Appelez-nous	-
1	WP9870913		Cabinet (white)   (Replaces: 9870913)				$ 298.34
2	WP489478		Screw, 8-18 X 1/2   (Replaces: 489478)				$ 8.18
3	775676		Plate, Power Cord		Appelez-nous	-
7	777380		Switch, Rotary				$ 162.31
8	WP4155141		Knob, Switch   (Replaces: 4155141)				$ 59.68
9	9870356		Plate, Switch (white)		Appelez-nous	-
9	9871161		Plate, Switch (black)				$ 95.20
11	WP9870865		Top, Cabinet (white)   (Replaces: 9870865)				$ 334.62
11	9871008		Top, Cabinet (black)		Appelez-nous	-
12	9870863		Panel, Back		Appelez-nous	-
13	9871829		Switch, Drawer Tilt (black)				$ 93.95
13	WP4387911		Switch, Drawer Tilt (white)   (Replaces: 4152058)			Immediately	$ 41.64
14	W10813586		Assembly, Switch   (Replaces: 9871824)				$ 251.14
15	246131		Screw, 6-20 X 3/8		Appelez-nous	-
16	9872039W		Escutcheon, Control (white)		Appelez-nous	-
16	W11736462		Escutcheon, Control (black)   (Replaces: 9872039B)		Appelez-nous	-
18	WP488234		Screw, 8-32 X 5/16   (Replaces: 777070)				$ 7.08
19	W11690155		Insert, Decorative (white)   (Replaces: 9872017W)				$ 74.28
19	W11050447		Insert, Decorative (black)   (Replaces: 9872017B)		Appelez-nous	-
22	W11820597		Bushing, Power Cord   (Replaces: 776119)		Appelez-nous	-
23	9870125		Bracket, Protector		Appelez-nous	-
24	WP777383		Nut, Switch   (Replaces: 777383)				$ 12.83
25	WP3400888		Screw, 8-18 X 1/2   (Replaces: 3400888)				$ 7.50
27	W11705838		Plug, Hole (black)   (Replaces: 9870905)		Appelez-nous	-
27	4151479		Plug, Hole (white)		Appelez-nous	-
