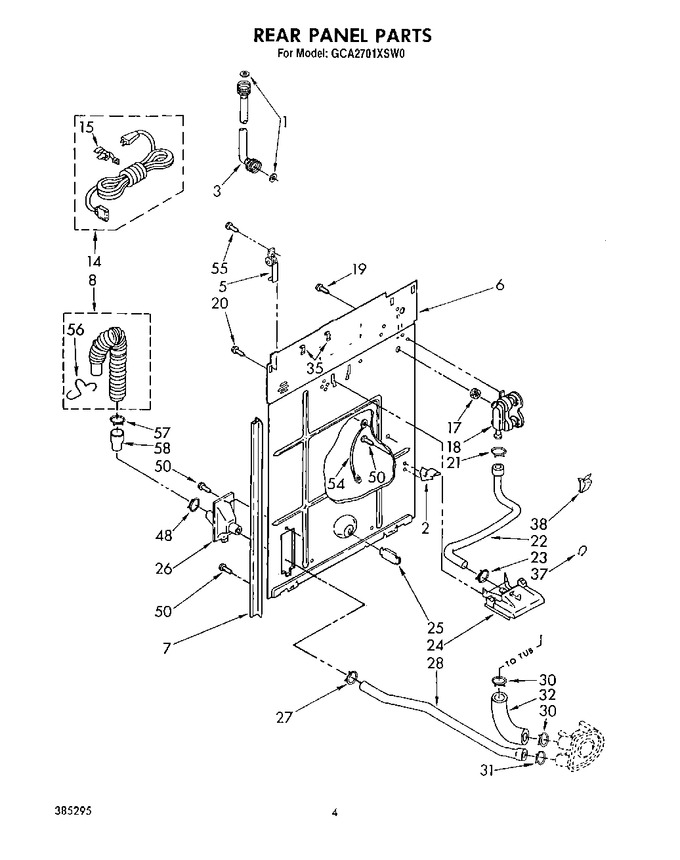

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) (1-1/16 X 5/8) (Replaces: 16123) |
|
$ 8.16 | |||||
| 2 | 63162 | Pin, Cabinet Guide (2) |
|
- | |||||
| 3 | WP89503 | Hose, Water Inlet (2) (Replaces: 81339) |
|
Immediately | $ 24.09 | ||||
| 5 | 387402 | Hinge, Console (2) |
|
$ 5.84 | |||||
| 6 | 3348430 | Panel, Rear |
|
- | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 27.57 | |||||
| 8 | 285664 | Hose, Corrugated Plastic Drain (5-1/2 Ft.) (Replaces: 387325) |
|
Immediately | $ 36.89 | ||||
| 8 | 285666 | Hose, Corrugated Plastic Drain (10 Ft.) (not Included) (Replaces: 388418) |
|
Immediately | $ 62.34 | ||||
| 14 | 3348564 | Cord, Power |
|
- | |||||
| 15 | 285715 | Strain Relief, Power Cord To Rear Panel (Replaces: 62848) |
|
$ 146.39 | |||||
| 17 | WP96160 | Screen, Filter (2) (Replaces: 96160) |
|
$ 12.30 | |||||
| 18 | 285805 | Valve, Water Mixing (Replaces: 358992) |
|
Immediately | $ 55.08 | ||||
| 19 | WP3390631 | Screw, 10-24 X 3/8 (2) (Replaces: 62863) |
|
$ 8.25 | |||||
| 20 | WP681414 | Screw, Ground (10-16 X 1/2) (Replaces: 359262) |
|
Immediately | $ 8.47 | ||||
| 21 | WP596669 | Clamp, Hose (Replaces: 272846) |
|
Immediately | $ 8.82 | ||||
| 22 | WP3357328 | Hose, Vacuum Break (Replaces: 62662) |
|
Immediately | $ 24.78 | ||||
| 23 | WP596669 | Clamp, Hose (Replaces: 371503) |
|
Immediately | $ 8.82 | ||||
| 24 | WP3347034 | Break, Vacuum (Replaces: 3347034) |
|
Immediately | $ 75.28 | ||||
| 25 | WP8519200 | Support, Rear Panel (Replaces: 63290) |
|
Immediately | $ 19.85 | ||||
| 26 | WPW10358149 | Connector, Drain (Replaces: 63206) |
|
Immediately | $ 48.16 | ||||
| 27 | WP356138 | Clamp, Hose (Replaces: 272856) |
|
Immediately | $ 8.52 | ||||
| 28 | WP3348552 | Hose, Pump To Drain Connector (Replaces: 3348552) |
|
$ 89.09 | |||||
| 30 | WP371502 | Clamp, Hose (Replaces: 371502) |
|
$ 12.31 | |||||
| 31 | WP285655 | Clamp, Hose (Replaces: 272858) |
|
Immediately | $ 8.81 | ||||
| 32 | 285871 | Hose, Pump To Tub (Replaces: 62731) |
|
Immediately | $ 28.99 | ||||
| 35 | WP98997 | Clip, Water Level Hose To Rear Panel (Replaces: 98997) |
|
$ 11.64 | |||||
| 37 | 387551 | Clip, Harness |
|
- | |||||
| 38 | 62732 | Clip, Harness |
|
- | |||||
| 48 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 50 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 8.25 | |||||
| 54 | 364089 | Wire, Ground |
|
- | |||||
| 55 | WP308685 | Screw, Hinge To Rear Panel (10-16 X 1/2) 2 (Replaces: 9416643) |
|
Immediately | $ 7.87 | ||||
| 56 | 357247 | Retainer, Wire |
|
- | |||||
| 57 | WP616099 | Clamp, Hose (Replaces: 371504) |
|
Immediately | $ 8.58 | ||||
| 58 | WP384496 | Coupling, Hose (Replaces: 384496) |
|
$ 90.39 |
