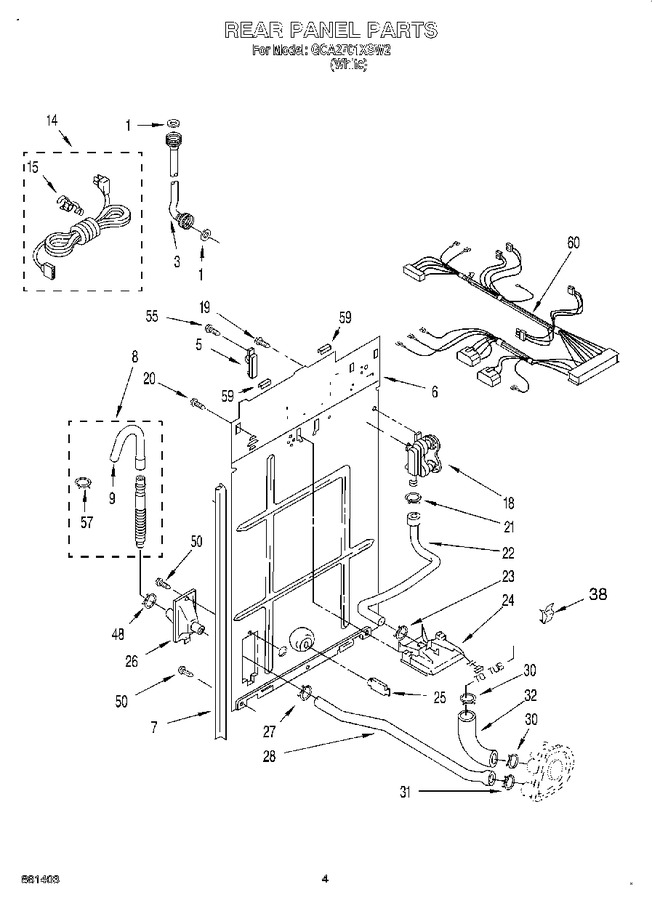

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP16123 | Washer, Water Inlet Hose (4) (1-1/16 X 5/8) (Replaces: 16123) |
|
$ 8.16 | |||||
| 3 | WP89503 | Hose, Water Inlet (2) (Replaces: 3949370) |
|
Immediately | $ 24.09 | ||||
| 5 | 387402 | Hinge, Console (2) |
|
$ 5.84 | |||||
| 6 | 3348430 | Panel, Rear |
|
- | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 27.57 | |||||
| 8 | 285666 | Hose, Drain (9 Ft.) (not Included) (Replaces: 661577) |
|
Immediately | $ 62.34 | ||||
| 8 | 285664 | Hose, Drain (4 Ft.) (Replaces: 661575) |
|
Immediately | $ 36.89 | ||||
| 8 | 285702 | Extension, Drain Hose (21 Inches) (not Included) (Replaces: 3357090) |
|
Immediately | $ 63.94 | ||||
| 9 | WP3357027 | Nozzle-drain Hose (Replaces: 3357027) |
|
$ 97.86 | |||||
| 14 | 285928 | Cord, Power (Replaces: 3359548) |
|
$ 137.67 | |||||
| 15 | W11733005 | Strain Relief, Power Cord To Rear Panel (Replaces: 63848) |
|
$ 13.58 | |||||
| 18 | 285805 | Valve, Water Mixing (Replaces: 3360392) |
|
Immediately | $ 55.08 | ||||
| 19 | WP3390631 | Screw, 10-24 X 3/8 (2) (Replaces: 62863) |
|
$ 8.25 | |||||
| 20 | WP681414 | Screw, Ground 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 21 | WP596669 | Clamp, Hose (Replaces: 370451) |
|
Immediately | $ 8.82 | ||||
| 22 | WP3357328 | Hose, Vacuum Break (Replaces: 62662) |
|
Immediately | $ 24.78 | ||||
| 23 | WP596669 | Clamp, Hose (Replaces: 371503) |
|
Immediately | $ 8.82 | ||||
| 24 | WP3347034 | Break, Vacuum (Replaces: 3347034) |
|
Immediately | $ 75.28 | ||||
| 25 | WP8519200 | Support, Rear Panel (Replaces: 63290) |
|
Immediately | $ 19.85 | ||||
| 26 | WPW10358149 | Connector, Drain Hose (Replaces: 3355497) |
|
Immediately | $ 48.16 | ||||
| 27 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 28 | WP3348552 | Hose, Pump To Drain Connector (Replaces: 3359818) |
|
$ 89.09 | |||||
| 30 | WP371502 | Clamp, Hose (Replaces: 371502) |
|
$ 12.31 | |||||
| 31 | WP285655 | Clamp, Hose (Replaces: 660628) |
|
Immediately | $ 8.81 | ||||
| 32 | 285871 | Hose, Pump To Tub (Replaces: 62731) |
|
Immediately | $ 28.99 | ||||
| 38 | 8559320 | Clip, Harness (Replaces: 3352501) |
|
$ 48.14 | |||||
| 48 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 50 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 8.25 | |||||
| 55 | WP308685 | Screw, Hinge To Rear Panel (10-16 X 1/2) 2 (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 57 | WP3357331 | Clamp, Hose (Replaces: 3357331) |
|
$ 8.19 | |||||
| 59 | 303294 | Protector, Edge (2) |
|
- | |||||
| 60 | 3359809 | Harness, Wiring (for Detail See Wiring Harness Parts Page) |
|
- |
