SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts

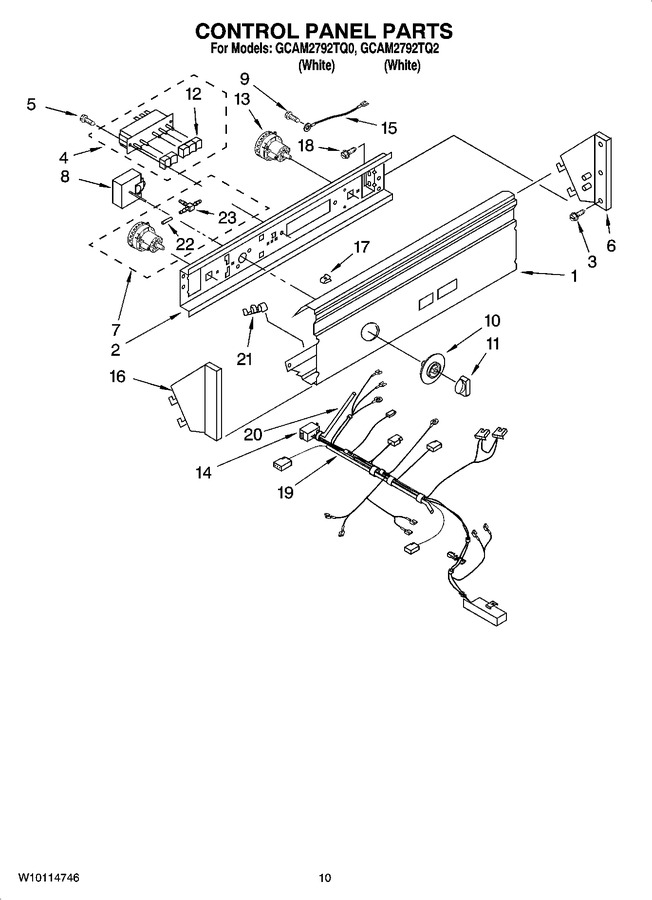

05 - Machine Base Parts


06 - Control Panel Parts


07 - Gearcase Parts


08 - Wiring Harness Parts


09 - Brake And Drive Tube Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8524796		Panel, Console				$ 181.02
2	8524798		Bracket, Control		Appelez-nous	-
3	WPW10109200		Screw, 11-16 X 3/4   (Replaces: 97787)			Immediately	$ 8.00
4	WPW10330136		Switch, Cycle Selector (includes Illus. No. 12)   (Replaces: 8316435)				$ 311.21
5	WP355214		Screw   (Replaces: 3393918)			Immediately	$ 8.07
6	3949737		End Cap (r.h.)				$ 49.53
7	W10339325		Switch, Pressure (high Level)   (Replaces: W10129718)				$ 229.85
8	WPW10116523		Timer   (Replaces: W10116523)				$ 342.20
9	3400073		Screw, Ground		Appelez-nous	-
10	8274412		Dial, Timer				$ 22.89
11	8529311		Knob, Timer				$ 53.94
12	WPW10330137		Pushbutton (5)   (Replaces: 8316433)			Immediately	$ 339.56
13	8524802		Switch, Pressure (low Level)		Appelez-nous	-
14	W10136114		Harness, Wiring (includes Items 19, 20, 22 & 23) (for Detail See Pages 12 & 13)		Appelez-nous	-
15	3398893		Wire, Ground		Appelez-nous	-
16	3949734		End Cap (l.h.)		Appelez-nous	-
17	689559		Nut, Push-in (2)		Appelez-nous	-
18	WP388326		Screw, End Cap To Bracket (4)   (Replaces: 388326)				$ 8.11
19	WP353244		Hose, Pressure Switch To Air Dome   (Replaces: 8524801)			Immediately	$ 59.93
20	WP353244		Hose, Pressure Switch Link   (Replaces: 8533269)			Immediately	$ 59.93
21	W10113937		Clip, Grounding   (Replaces: 357572)				$ 10.83
