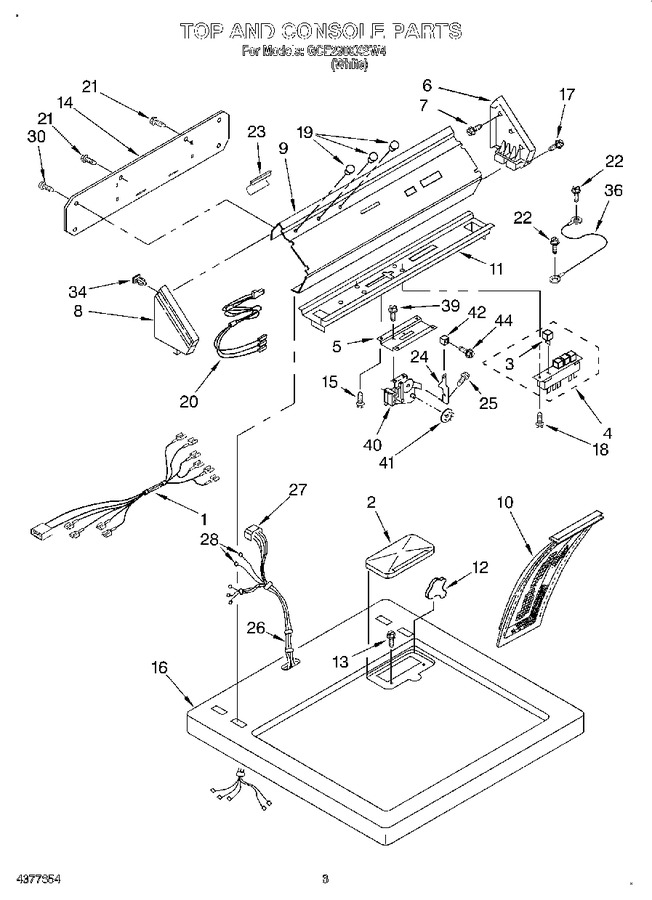

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Section
02 - Section
03 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3401662 | Harness, Console |
|
- | |||||
| 2 | 688150 | Cover, Lint Screen (white) |
|
- | |||||
| 3 | 3348587 | Button (4) |
|
$ 12.40 | |||||
| 4 | 3401851 | Switch, Pushbutton |
|
$ 122.99 | |||||
| 5 | 3388374 | Control, Bracket |
|
- | |||||
| 6 | 63795 | Cap, End. (r.h.) |
|
$ 14.10 | |||||
| 7 | WPW10109200 | Screw (Replaces: 97787) |
|
Immediately | $ 8.00 | ||||
| 8 | 63789 | Cap, End (l.h.) |
|
- | |||||
| 9 | 3389679 | Panel, Control |
|
- | |||||
| 10 | 339392V | Screen, Lint (Replaces: 339392) |
|
Immediately | $ 41.91 | ||||
| 11 | 3388375 | Bracket, Control |
|
- | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 339230) |
|
$ 7.72 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 339229) |
|
$ 7.72 | |||||
| 13 | W11693756 | Screw, 8-15 X 3/8 (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 14 | 386367 | Panel, Rear |
|
- | |||||
| 15 | WP90767 | Screw, 8-18 X 1/2 (Replaces: 697774) |
|
Immediately | $ 7.82 | ||||
| 16 | 3393385 | Top (white) |
|
- | |||||
| 17 | WPW10109200 | Screw (Replaces: 97787) |
|
Immediately | $ 8.00 | ||||
| 18 | WP965173 | Screw, 8 X 3/8 (Replaces: 9424101) |
|
Immediately | $ 10.72 | ||||
| 19 | WP3348109 | Lens, Amber (3) (Replaces: 3348109) |
|
Immediately | $ 12.51 | ||||
| 20 | 3401761 | Lights, Indicator (240 Volts) |
|
- | |||||
| 21 | WP693995 | Screw, Mounting (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 22 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 23 | 686770 | Protector Support |
|
- | |||||
| 24 | 694583 | Lever, Timer |
|
- | |||||
| 25 | WP3388228 | Screw (Replaces: 3388228) |
|
$ 6.95 | |||||
| 26 | 3401737 | Harness, Wiring |
|
- | |||||
| 27 | 352457 | Plug, Terminal (6 Way) Uses Terminal 94614) |
|
- | |||||
| 28 | 3348310 | Connector, Receptacle |
|
- | |||||
| 30 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 34 | 689559 | Nut, Push-in |
|
- | |||||
| 36 | 690853 | Wire, Ground |
|
- | |||||
| 39 | W11808444 | Screw, 8-32 X 5/16 (Replaces: 98139) |
|
- | |||||
| 40 | 279737 | Timer, 50 Hz. (incl. 4 Pin Cam) (Replaces: 3389668) |
|
Immediately | $ 312.10 | ||||
| 41 | WP3387974 | Cam (3 Pin (60 Min.)) (Replaces: 3387974) |
|
$ 8.32 | |||||
| 41 | WP339855 | Cam (4 Pin (45 Min.)) (Replaces: 339855) |
|
$ 8.37 | |||||
| 41 | 51-161-6 | Cam (6 Pin (30 Min.)) (Replaces: 343777) |
|
$ 34.52 | |||||
| 42 | 3348574 | Pushbutton |
|
- | |||||
| 44 | 10875 | Wire (16 Ga. 80 C Blue) |
|
Immediately | $ 20.64 | ||||
| 44 | 310410 | Screw |
|
- |
