SELECT A DIAGRAM

01 - Front Cover


02 - Bulkhead, Literature

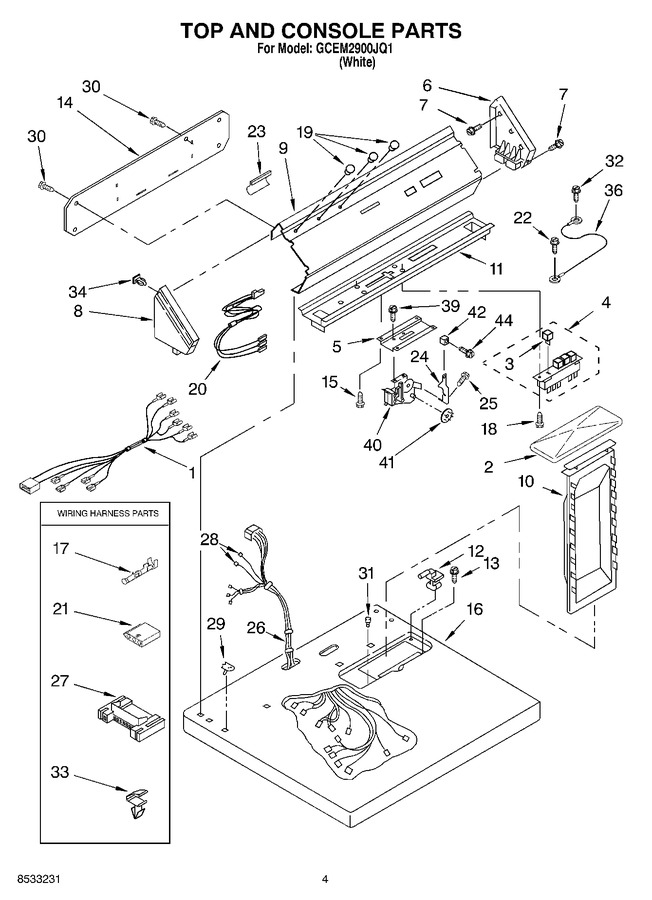

03 - Top And Console


04 - Cabinet


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3401662		Harness, Console		Appelez-nous	-
2	8283378		Cover, Lint Screen				$ 44.80
3	WPW10330137		Button (4)   (Replaces: 8316433)			Immediately	$ 339.56
4	WPW10330137		Switch, Pushbutton   (Replaces: 8316437)			Immediately	$ 339.56
5	3388374		Control, Bracket		Appelez-nous	-
6	3949737		Cap, End (r.h.)				$ 49.53
7	WPW10109200		Screw, 11-16 X 3/4   (Replaces: 97787)			Immediately	$ 8.00
8	3949734		End Cap (l.h.)		Appelez-nous	-
9	8316633		Panel, Control		Appelez-nous	-
10	WP349639		Screen, Lint   (Replaces: 349639)			Immediately	$ 37.21
11	3388375		Bracket, Control		Appelez-nous	-
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 7.72
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 7.72
13	W11693756		Screw, 8-18 X 3/8   (Replaces: 688983)			Immediately	$ 14.06
14	386367		Panel, Rear		Appelez-nous	-
15	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.82
16	8316630		Top				$ 214.66
17	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
18	WP355214		Screw 8-18 X 11/32   (Replaces: 3393918)			Immediately	$ 8.07
19	WP3348109		Lens, Amber (3)   (Replaces: 3348109)			Immediately	$ 12.51
20	3401761		Lights, Indicator (240 Volts)		Appelez-nous	-
21	3936144		Connector				$ 20.21
22	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
23	686770		Protector Support		Appelez-nous	-
24	694583		Lever, Timer		Appelez-nous	-
25	WP3388228		Screw, 6-20 X 3/8   (Replaces: 3388228)				$ 6.95
26	8529861		Harness, Wiring		Appelez-nous	-
27	3395683		Connector (motor)			Immediately	$ 51.86
28	3348310		Connector, Receptacle		Appelez-nous	-
29	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
30	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.19
31	297535		Bumper, Lint Lid		Appelez-nous	-
32	WP3390631		Screw, 10-16 X 5/16   (Replaces: 339554)				$ 7.82
33	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
34	689559		Nut, Push-in		Appelez-nous	-
36	690853		Wire, Ground		Appelez-nous	-
39	W11808444		Screw, 8-32 X 5/16   (Replaces: 98139)		Appelez-nous	-
40	279737		Timer, 50 Hz. (incl. 4 Pin Cam)   (Replaces: 3389668)			Immediately	$ 312.10
41	WP3387974		Cam (3 Pin (60 Min.))   (Replaces: 3387974)				$ 8.32
41	WP339855		Cam (4 Pin (45 Min.))   (Replaces: 339855)				$ 8.37
41	51-161-6		Cam (6 Pin (30 Min.))   (Replaces: 343777)				$ 34.52
42	8316442		Pushbutton		Appelez-nous	-
44	10875		Wire (16 Ga. 80 C Blue)			Immediately	$ 20.64
44	310410		Screw, 5-20 X 1/4		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
