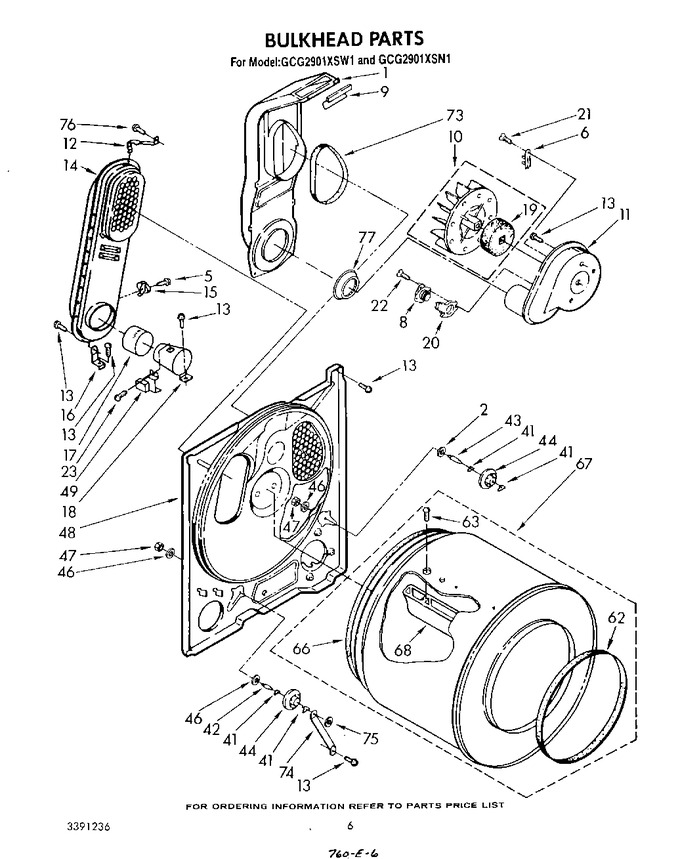

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	279505		Lint Chute, Assembly   (Replaces: 694283)				$ 302.61
2	WP3388703		Washer-support   (Replaces: 3388703)				$ 7.47
5	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.82
6	WP3392519		Thermal Fuse   (Replaces: 694511)			Immediately	$ 24.95
8	WP694674		Thermostat, Operating 150~f (66~c) (alt.)   (Replaces: 341146)			Immediately	$ 50.51
8	AT022		Thermostat, Operating 150~f (65.6~c)   (Replaces: 660039)			Immediately	$ 35.17
9	686770		Support Protector		Appelez-nous	-
10	WP694089		Wheel, Blower   (Replaces: 695499)			Immediately	$ 37.66
11	695081		Housing, Blower		Appelez-nous	-
12	279771		Clip   (Replaces: 337272)				$ 14.33
13	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
14	279900		Box, Heater   (Replaces: 685458)				$ 344.36
15	660036		Thermostat, High Limit 205~f (96~c)		Appelez-nous	-
15	341196		Thermostat, High Limit 205~f (96~c) (alt.)				$ 33.17
16	337445		Support, Heater Box (2)		Appelez-nous	-
17	279900		Collar, Funnel   (Replaces: 337450)				$ 344.36
18	279900		Funnel, Burner   (Replaces: 347389)				$ 344.36
19	694630		Seal, Blower		Appelez-nous	-
20	61894		Heater, Thermostat				$ 37.38
21	WP965173		Screw, 8-18 X 3/8   (Replaces: 695239)			Immediately	$ 10.72
22	WP488729		Screw, 8-18 X 1/2 (2)   (Replaces: 695240)			Immediately	$ 7.79
23	WP3390631		Screw, Sensor To Funnel   (Replaces: 339554)				$ 7.82
41	WPW10512946		Ring, Tri   (Replaces: 690997)			Immediately	$ 8.80
42	WPW10359270		Shaft, L.h.   (Replaces: 347364)			Immediately	$ 72.71
43	WPW10359269		Shaft, R.h.   (Replaces: 339489)			Immediately	$ 47.30
44	349241T		Roller, Support   (Replaces: 349241)			Immediately	$ 29.53
46	WP348197		Washer, Support   (Replaces: 348197)				$ 7.19
47	120377		Nut, 3/8-16		Appelez-nous	-
48	685775		Bulkhead		Appelez-nous	-
49	WP338906		Sensor, Radiant   (Replaces: 338906)			Immediately	$ 51.91
62	WP3394508		Bearing, Ring   (Replaces: 297936)				$ 125.58
63	690372		Screw, 11-16 X 7/8		Appelez-nous	-
66	239087		Seal, Rear   (Replaces: 337449)			Immediately	$ 62.78
67	3396775		Drum Assembly   (Replaces: 695584)				$ 336.22
68	WP342847		Baffle, Drum   (Replaces: 342847)				$ 146.98
73	WP339956		Seal   (Replaces: 339956)			Immediately	$ 8.63
74	348945		Bracket, Support Shaft		Appelez-nous	-
75	WP90296		Clip   (Replaces: 90296)				$ 7.85
76	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.85
77	W11233063		Shield, Exhaust   (Replaces: 696302)				$ 22.29
	350956		Paint, Spray 13 Oz. (almond)				$ 51.44
	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
	261890		Golden Harvest		Appelez-nous	-
	261888		New Avocado		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	LIT3391236		List, Service Parts		Appelez-nous	-
	LIT348772		Instructions, Multi-venting		Appelez-nous	-
	LIT687457		Instructions, Installation		Appelez-nous	-
	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	10875		Wire (16 Ga. 80 C Blue)			Immediately	$ 20.64
	261891		Golden Harvest (uncut)		Appelez-nous	-
	261889		New Avocado (uncut)		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	350941		Leveler (thinner)		Appelez-nous	-
	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
