SELECT A DIAGRAM

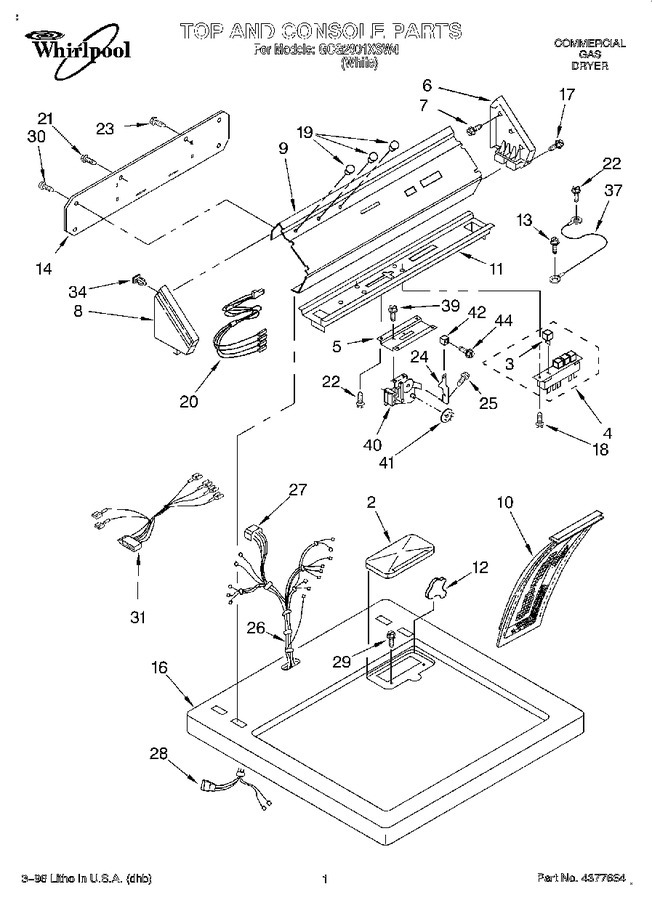

01 - Top And Console


02 - Cabinet


03 - Bulkhead, Lit/optional


04 - 3401771 Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	688150		Cover, Lint Screen (white)		Appelez-nous	-
3	3348587		Button (4)				$ 12.40
4	3401851		Switch, Pushbutton				$ 122.99
5	3388374		Control, Bracket		Appelez-nous	-
6	63795		Cap, End. (r.h.)				$ 14.10
7	WPW10109200		Screw   (Replaces: 97787)			Immediately	$ 8.00
8	63789		Cap, End (l.h.)		Appelez-nous	-
9	3389679		Panel, Control		Appelez-nous	-
10	339392V		Screen, Lint   (Replaces: 339392)			Immediately	$ 41.91
11	3388375		Bracket, Control		Appelez-nous	-
12	WPW10044480		Hinge, Lint Lid (l.h.)   (Replaces: 339230)				$ 7.72
12	WPW10044470		Hinge, Lint Lid (r.h.)   (Replaces: 339229)				$ 7.72
13	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
14	386367		Panel, Rear		Appelez-nous	-
16	3393385		Top (white)		Appelez-nous	-
17	WP388326		Screw, 8a X 3/8   (Replaces: 64211)				$ 8.11
18	WP965173		Screw, 8-18 X 3/8   (Replaces: 9424101)			Immediately	$ 10.72
19	WP3348109		Lens, Amber (3)   (Replaces: 3348109)			Immediately	$ 12.51
20	3401761		Lights, Indicator		Appelez-nous	-
21	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
22	WP90767		Screw, 8-18 X 1/2   (Replaces: 697774)			Immediately	$ 7.82
23	W10850756		Screw, Ground   (Replaces: 697776)				$ 7.76
24	694583		Lever, Timer		Appelez-nous	-
25	WP3388228		Screw   (Replaces: 3388228)				$ 6.95
26	3401738		Harness, Wiring (complete)		Appelez-nous	-
27	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
27	352457		Plug, Terminal (6 Way) (uses Terminal		Appelez-nous	-
28	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
28	691707		Plug, Terminal (uses Terminal		Appelez-nous	-
29	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
30	WP693995		Screw (4)   (Replaces: 693995)			Immediately	$ 7.19
31	3401663		Harness, Console		Appelez-nous	-
34	689559		Nut, Push-in		Appelez-nous	-
37	690853		Wire, Ground		Appelez-nous	-
39	W11808444		Screw, 8-32 X 5/16   (Replaces: 98139)		Appelez-nous	-
40	279737		Timer, 60 Hz. (incl. 4 Pin Cam)   (Replaces: 3389668)			Immediately	$ 312.10
41	WP3387974		Cam (3 Pin (60 Min.))   (Replaces: 3387974)				$ 8.32
41	WP339855		Cam (4 Pin (45 Min.))   (Replaces: 339855)				$ 8.37
41	51-161-6		Cam (6 Pin (30 Min.))   (Replaces: 343777)				$ 34.52
42	3348574		Pushbutton		Appelez-nous	-
44	310410		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
