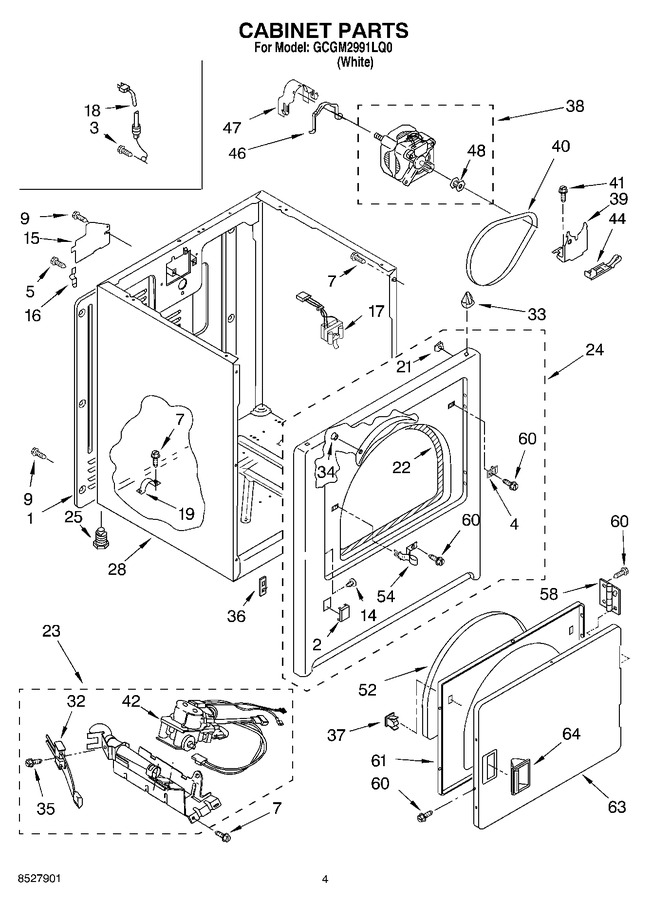

01 - Front Cover
02 - Top And Console, Literature
03 - Cabinet
04 - Bulkhead
05 - 3401771 Burner
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 280043 | Panel, Rear (Replaces: 3396805) |
|
$ 358.37 | |||||
| 2 | 3394975 | Plug, Front Panel |
|
$ 5.70 | |||||
| 3 | W10850756 | Screw, Ground (10-32 X 5/8) (Replaces: 697776) |
|
$ 8.20 | |||||
| 4 | WP3403630 | Plug, Strike (Replaces: 3403630) |
|
$ 7.91 | |||||
| 5 | WP388326 | Screw, 8-18 X 1-1/4 (Replaces: 388326) |
|
$ 9.29 | |||||
| 7 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 9 | WP693995 | Screw, Hex Head 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 14 | WP3404413 | Plug, Hinge Hole (Replaces: 3404413) |
|
Immediately | $ 8.35 | ||||
| 15 | W11539855 | Cover, Block (Replaces: 3396795) |
|
Immediately | $ 629.75 | ||||
| 16 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 8.21 | |||||
| 17 | WPW10237959 | Door Switch Assembly (Replaces: 3406109) |
|
Immediately | $ 55.64 | ||||
| 18 | W11628810 | Cord, Power (Replaces: 3401401) |
|
$ 101.90 | |||||
| 19 | 341029 | Clamp, Pipe (rear) |
|
- | |||||
| 21 | WP98234 | Clip, Ground (2) (Replaces: 98234) |
|
Immediately | $ 11.96 | ||||
| 22 | W11035878 | Seal & Bearing Assembly (Replaces: 3406129) |
|
Immediately | $ 78.78 | ||||
| 23 | 3401771 | Burner Assembly, 60 Hz. |
|
- | |||||
| 24 | 3403447 | Front Panel Assembly |
|
- | |||||
| 25 | 49621 | Foot, Plastic (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 25 | 49621 | Foot - Optional (extended Length Package Of 2 ) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| 28 | 8533643 | Cabinet (Replaces: 8530603) |
|
$ 419.22 | |||||
| 32 | 279311 | Ignitor (Replaces: 686590) |
|
Immediately | $ 78.90 | ||||
| 33 | WP18776 | Lock, Front Top (Replaces: 690363) |
|
Immediately | $ 13.31 | ||||
| 34 | 279220 | Clip, Felt Pad (2) (Replaces: 685203) |
|
$ 23.55 | |||||
| 35 | WPW10366705 | Screw & Washer (Replaces: 3393909) |
|
$ 7.88 | |||||
| 36 | W10854425 | Clip, Front Panel (Replaces: 3394083) |
|
Immediately | $ 16.34 | ||||
| 37 | 279570 | Catch, Door Assembly (Replaces: 690081) |
|
Immediately | $ 8.89 | ||||
| 38 | 279827 | Motor Assembly 60 Hz. (Replaces: 661654) |
|
Immediately | $ 191.95 | ||||
| 39 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 127.65 | ||||
| 40 | 341241 | Belt, Drive (Replaces: 8066065) |
|
Immediately | $ 18.15 | ||||
| 41 | 3400500 | Bolt, 5/16-18 X 3/4 |
|
Immediately | $ 14.04 | ||||
| 42 | 279923 | Valve, Gas 60 Hz. (complete) (Replaces: 3401775) |
|
Immediately | $ 286.03 | ||||
| 44 | WP691366 | Idler & Slide Assembly (Replaces: 3394332) |
|
Immediately | $ 22.47 | ||||
| 46 | WP660658 | Clip, Motor (2) (Replaces: 660658) |
|
$ 8.22 | |||||
| 47 | WP3404162 | Clamp, Motor (Replaces: 3404162) |
|
Immediately | $ 8.21 | ||||
| 48 | WP8066184 | Pulley, 60 Hz. (Replaces: 3394341) |
|
Immediately | $ 51.02 | ||||
| 52 | W10861521 | Seal, Door (Replaces: 3405246) |
|
Immediately | $ 58.69 | ||||
| 54 | W11429589 | Strike, Door (Replaces: 3403431) |
|
Immediately | $ 20.99 | ||||
| 58 | WPW10362431 | Hinge, Door (Replaces: 3405514) |
|
Immediately | $ 8.28 | ||||
| 60 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 342055) |
|
$ 8.11 | |||||
| 61 | WP3402341 | Door, Rear (Replaces: 3402341) |
|
$ 208.71 | |||||
| 63 | W10861227 | Door, Front (Replaces: 3402335) |
|
$ 269.26 | |||||
| 64 | WP3405184 | Handle, Door (Replaces: 3405184) |
|
$ 79.81 |
