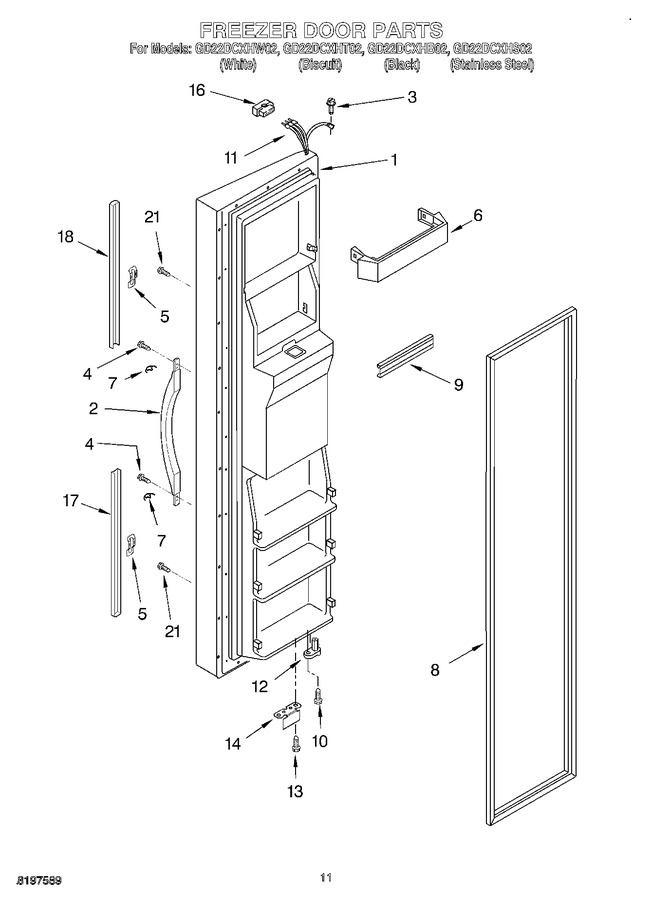

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2207044W		Freezer Door (includes Item No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2207044T		Freezer Door (includes Item No.8 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
1	2207044B		Freezer Door (includes Item No.8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	2207044SB		Freezer Door (includes Item No.8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
2	2207003B		Handle (black)		Appelez-nous	-
2	2207003T		Handle (biscuit)		Appelez-nous	-
2	2207003W		Handle (white)		Appelez-nous	-
3	WP489128		Screw   (Replaces: 8281149)				$ 10.88
4	WP489491		Screw   (Replaces: 489491)				$ 6.95
5	WP2195327		Clip (4)   (Replaces: 2195327)				$ 7.40
6	WP2156021		Trivet, Shelf (4)   (Replaces: 2156021)				$ 63.27
7	2207010G		Jewelry, Handle		Appelez-nous	-
8	2159072		Door Gasket, Magnetic (service) (mist Beige)				$ 308.19
8	2159080		Door Gasket, Magnetic (service) (black)				$ 310.39
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209680)			Immediately	$ 23.11
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
11	2311642		Wire Harness (for W, B, & T Mls.)   (Replaces: 2206602)				$ 217.92
11	2187272		Wire Harness (for Stainless Steel Model)		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	2200082		Bracket, Door Stop				$ 5.83
16	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
17	2207038B		Trim, Door-bottom (black)		Appelez-nous	-
17	2207038T		Trim, Door-bottom (biscuit)		Appelez-nous	-
17	2207038W		Trim, Door-bottom (white)		Appelez-nous	-
18	2207050W		Trim, Door-top (white)		Appelez-nous	-
18	2207050T		Trim, Door-top (biscuit)		Appelez-nous	-
18	2207050B		Trim, Door-top (black)		Appelez-nous	-
21	WP3400852		Screw   (Replaces: 3400852)				$ 9.84
