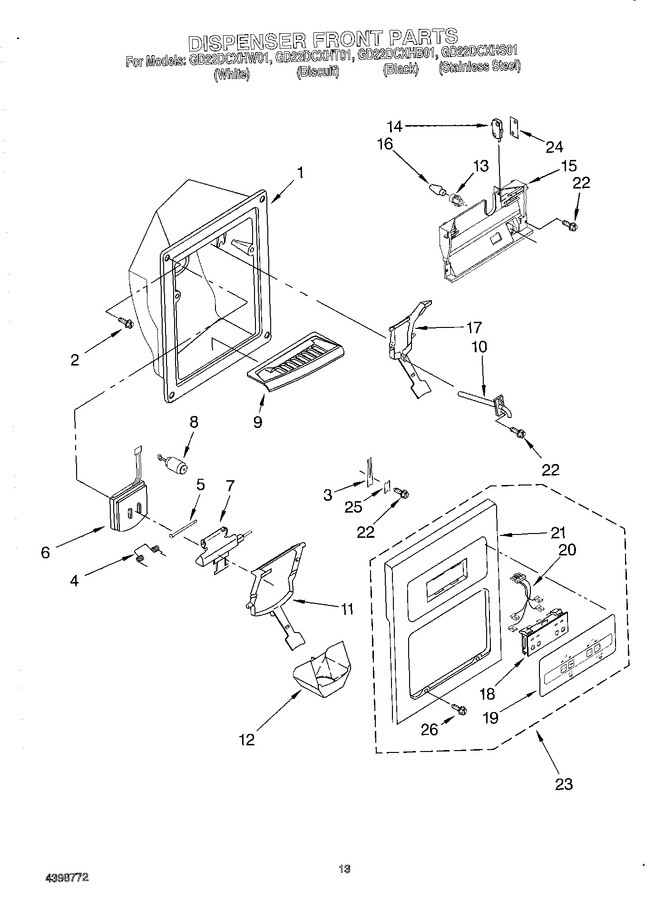

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Housing, Dispenser (not A Serviceable Part)		Appelez-nous	-
2	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.19
3	WP2194719		Retainer, Levers   (Replaces: 2194719)			Immediately	$ 11.77
4	WPW10224328		Spring, Torsion   (Replaces: 2180209)				$ 83.24
5	WP2196195		Pin   (Replaces: 2196195)				$ 14.58
6	WP2180353		Door, Ice   (Replaces: 2180352)			Immediately	$ 24.69
7	2206423		Door Mechanism Assembly		Appelez-nous	-
8	2205686		Delay Mechanism		Appelez-nous	-
9	2207048W		Grille, Overflow (white)		Appelez-nous	-
9	2207048B		Grille, Overflow (black)				$ 30.06
9	2207048T		Grille, Overflow (biscuit)		Appelez-nous	-
10	WP4388152		Water Fitting Assembly (includes Water Tube)   (Replaces: 2180225)				$ 276.43
11	WP2203562W		Lever, Ice Dispenser (white)   (Replaces: 2203562W)				$ 107.66
11	2203562B		Lever, Ice Dispenser (black)				$ 85.92
11	2203562T		Lever, Ice Dispenser (biscuit)				$ 56.21
12	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 27.63
13	2180200		Lamp Holder				$ 98.66
14	WP2162361		Switch (2)   (Replaces: 2162361)			Immediately	$ 27.34
15	WP2180226		Bracket, Control   (Replaces: 2183771)			Immediately	$ 24.39
16	WP22002263		Light Bulb   (Replaces: 3406124)			Immediately	$ 13.66
17	2203561B		Lever, Water Dispenser (black)				$ 102.50
17	2203561T		Lever, Water Dispenser (biscuit)				$ 98.68
17	2203561W		Lever, Water Dispenser (white)				$ 95.98
18	WP2180236		Switch Assembly (also Order No. 19)   (Replaces: 2180236)				$ 274.29
19	2207096B		Overlay, Front Cover (black)		Appelez-nous	-
19	2207096W		Overlay, Front Cover (white)		Appelez-nous	-
19	2207096T		Overlay, Front Cover (biscuit)		Appelez-nous	-
20	2311650		Wire Assembly   (Replaces: 2196199)				$ 89.68
21	N/A		Front Cover, Housing (not Available, Order No.23)		Appelez-nous	-
22	WP3400906		Screw   (Replaces: 489000)				$ 7.84
23	2207046T		Front Cover Assembly (includes Items 18, 19, 20 & 21) (biscuit)		Appelez-nous	-
23	2207046B		Front Cover Assembly (includes Items 18, 19, 20 & 21) (black)		Appelez-nous	-
23	2207046W		Front Cover Assembly (includes Items 18, 19, 20 & 21) (white)		Appelez-nous	-
24	625834		Spacer, Switch (2)				$ 7.99
25	WP2195051		Strain Relief   (Replaces: 2195051)				$ 11.67
26	WP3400065		Screw   (Replaces: 3400065)			Immediately	$ 7.74

    View Diagram in Separate Window       Print Part List
